CPU Quciky
Hi my tail lights are not currently working and i believe it is the CPU that is bad well the stoplight part. my friend currently has a part car that i can take the CPU out of. my question is if i take his cpu can i just swap it into my car or do i have to tune it or something
#3
Full Member
iTrader: (5)
Join Date: Nov 2002
Location: Picayune, Ms
Posts: 184
Likes: 0
Received 0 Likes
on
0 Posts
I believe it may be your brake light switch.
Not that this answers your question but the numbers on the ecu will tell you what the ecu will fit. I searched the forum a few minutes ago trying to see if someone posted the different models each ecu supported.
Not that this answers your question but the numbers on the ecu will tell you what the ecu will fit. I searched the forum a few minutes ago trying to see if someone posted the different models each ecu supported.
#6
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Have you Checked the Illumination Fuse?..Start checking Fuses,Under the driver's side Dash,in the Upper corner..the CPU is a Sealed Unit,(flashers,signal,horn).you don't Tune Stuff like that.If it goes,it goes.It has Nothing to do with the ECU(which is for the Engine)..the Brake Switch is on the Pedal assembly Up top..also Check the Wiring Harnesses at the Rear of the car,in the Spare Tire Well(approximate locations,just off to each side,inside there).I honestly think it is a Fuse though.
#7
Senior Member
iTrader: (3)
Join Date: Jul 2004
Location: North Texas
Posts: 327
Likes: 0
Received 0 Likes
on
0 Posts
A simple test in the FSM will tell you exactly whats worng. Page 15-46, all you need is a test light and 5 minuets.
Just to clear up some confusion the CPU and ECU are two diffrent things. CPU behind drivers side kick panel next to the fuse box.
Just to clear up some confusion the CPU and ECU are two diffrent things. CPU behind drivers side kick panel next to the fuse box.
Trending Topics
#11
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The CPU's should just swap out, but I don't think that's the problem. IF you meant Stop lights, then maybe the CPU.
Are your front side marker lights and Front parking lights out also? And I took tail lights to mean just that. NOT the stop lights.
Not the CPU if you mean Tail Lights, front and rear side marker lights, licence plate light etc.
If you have the instrument lights working in the instrument cluster working, then it's not the fuse.

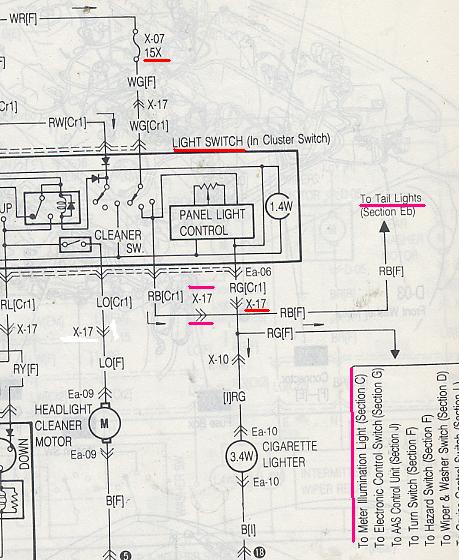

Here's a OLD jpg of the light switch. You can see there's a RB or red/black wire that feeds the tail lights from the switch. It Also feeds the front side markers/front parking lights and other *stuff*. If all these things don't work, then the feed to the RB is bad for some reason.
Anyway, you can see from the attached jpg, that if your instrument cluster lights work and your tail lights etc don't work, it would make sense to pull the plug off the light switch, and then jumper the WG or white/green wire in that plug, to the RB wire in that same plug and the tail lights etc should come on. IF they do, then it's a light switch problem.
Are your front side marker lights and Front parking lights out also? And I took tail lights to mean just that. NOT the stop lights.
Not the CPU if you mean Tail Lights, front and rear side marker lights, licence plate light etc.
If you have the instrument lights working in the instrument cluster working, then it's not the fuse.
Here's a OLD jpg of the light switch. You can see there's a RB or red/black wire that feeds the tail lights from the switch. It Also feeds the front side markers/front parking lights and other *stuff*. If all these things don't work, then the feed to the RB is bad for some reason.
Anyway, you can see from the attached jpg, that if your instrument cluster lights work and your tail lights etc don't work, it would make sense to pull the plug off the light switch, and then jumper the WG or white/green wire in that plug, to the RB wire in that same plug and the tail lights etc should come on. IF they do, then it's a light switch problem.
Last edited by HAILERS; 02-23-08 at 07:27 AM.
#12
Full Member
Thread Starter
iTrader: (2)
Join Date: Feb 2008
Location: Rohnert Park, CA
Posts: 212
Likes: 0
Received 0 Likes
on
0 Posts
sorry about the misunderstanding my stop lights dont work everything else works except them. I have checked the fuses and the actual light bulbs and they are fine as welll as the sockets they sit in.
