Could someone get me a pic of the fuse cover in the drivers side foot area .. i have some thinkgs not working and i need to know what fuse is for what . thanx in advance for any helpers.. dont know if thisd matters but itz a 1988 Se na



Thanx

Dustin



Should be in the FAQ for this forum.



I didn't see it in the FAQ.


And to thread jack I have a similar request. My fuse cover doesn't match the fuses or open spots/etc as my fuses in there, so I need one for my 1988 RX7 GXL as well, it came with sunroof, p/s, a/c, etc etc all that crap.



it's in there...... the fuse box is the same for all fc's, you just might not have the fuses for certain things listed on the pic of the vert's fusebox.



I have a fuse cover from a 87 gxl if you want I can snap a pic of it.



Well then every single one of my fuses is different than the cover, and the placement of a couple.



I'd really appreciate that.



you sir fail in life at looking for giant pictures in the FAQ section O_o

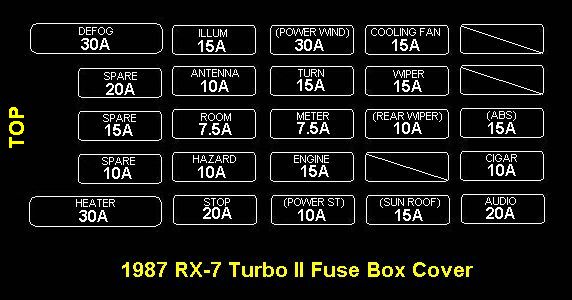

The fuse cover I have is the same as the one pictured above in black. It could be that the previous owner replaced all the fuses in the wrong place haha. you can test to see if they are in the right place by pulling them and see if the accessory still works.



Ahhhhhhhhh. I have a TII fuse cover in my GXL, no wonder.

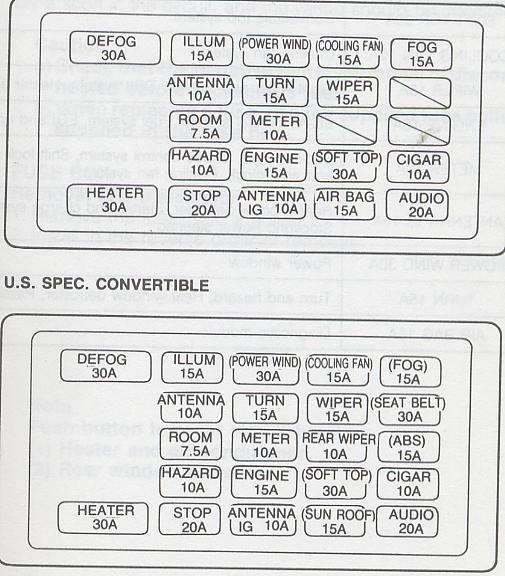

Wait... Isn't that s5? Since it has seat belt I'm assuming that's auto belts right? So is s4 different? And why does the coupe one have a soft top too...



For n/a? Even though that's for TII?



Well the cover I fuse cover I got was from an 87gxl I believe (wasnt turbo for sure) and it is exactly the same as the black one pictured above. If it makes any difference in the upper right hand corner of the fuse box it says FB01.



All FC's have the same fuses in the same locations. Some will have more fuses than others, and some fuses got higher ratings for S5, but the locations don't change between S4 and S5 or NA and Turbo. You can see that by comparing the two pics above.
