Corksport PS Header into RB Presilencer, will it work?

Thread Tools

Search this Thread

Old Sep 29, 2011 | 03:11 PM
  #26
ace626's Avatar
Full Member
Tenured Member 05 Years
iTrader: (2)

Joined: Nov 2007
Posts: 97
Likes: 0
From: Rhode Island
Originally Posted by 88_N/A_GXL
Both pics would be amazing, but if not something like a pic of it on the car showing where it ends in relation to the underbody, that may not make sense, but kinda like if you were laying under/ to the side the outlet of the header and snapped a pic with a few reference points cuz I've got my auto tech class at my local college today from 12:30 to 5 and have had it on a lift the past few weeks fixing it up since I bought it.

Yea, I'm finding out more and more that I probably won't be able to run a presilencer, but a single cat is worlds better than the three stock I'm guessing tho. I want to be silent-er and/or emissions semi-legal, or else I would probably run a test pipe.

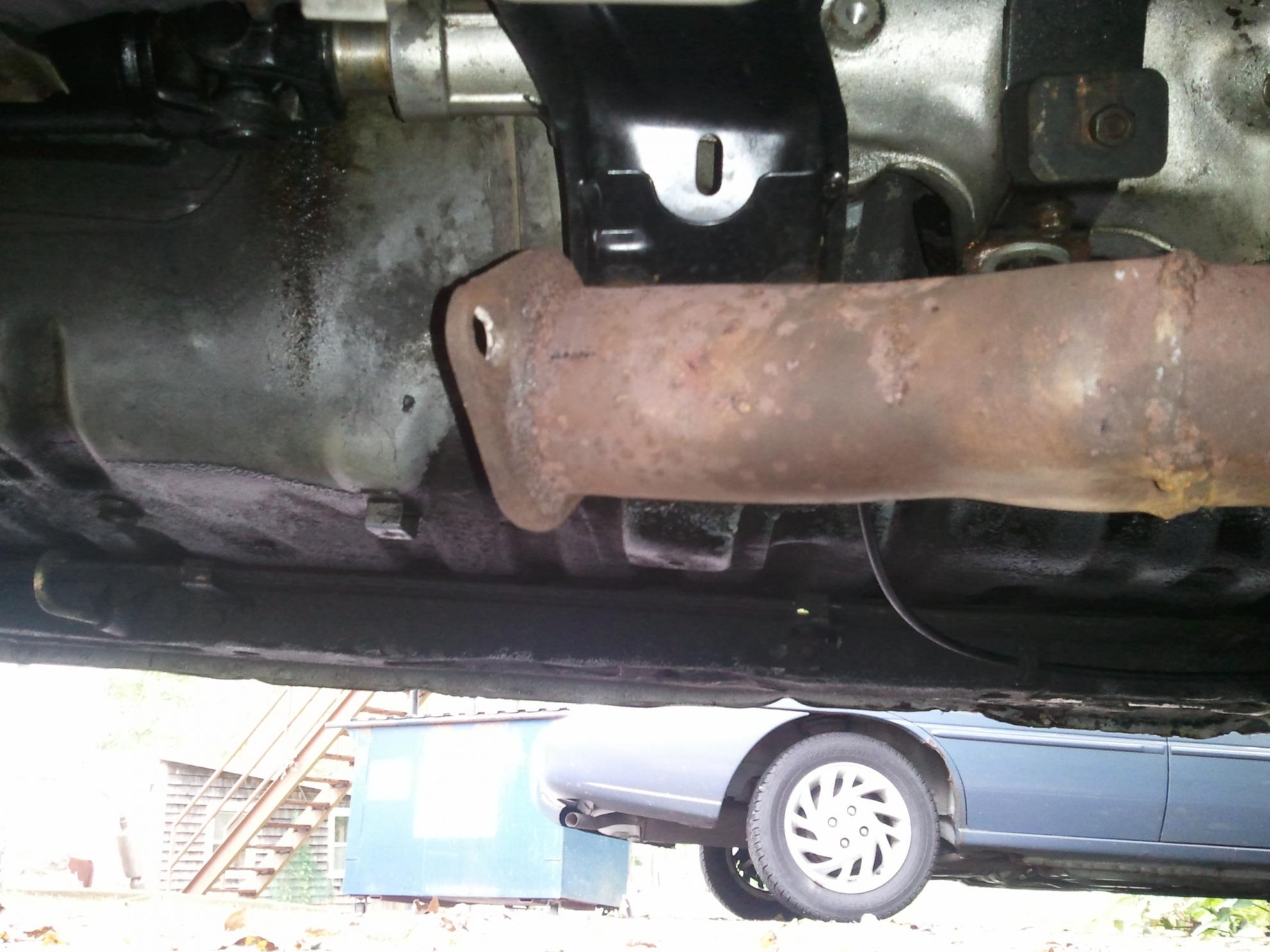

Took a picture of the end of the header from both sides. Remember my car was swapped from auto to manual so the transmission mount is farther back then usual but the transmission itself is in the same spot it normally would be.

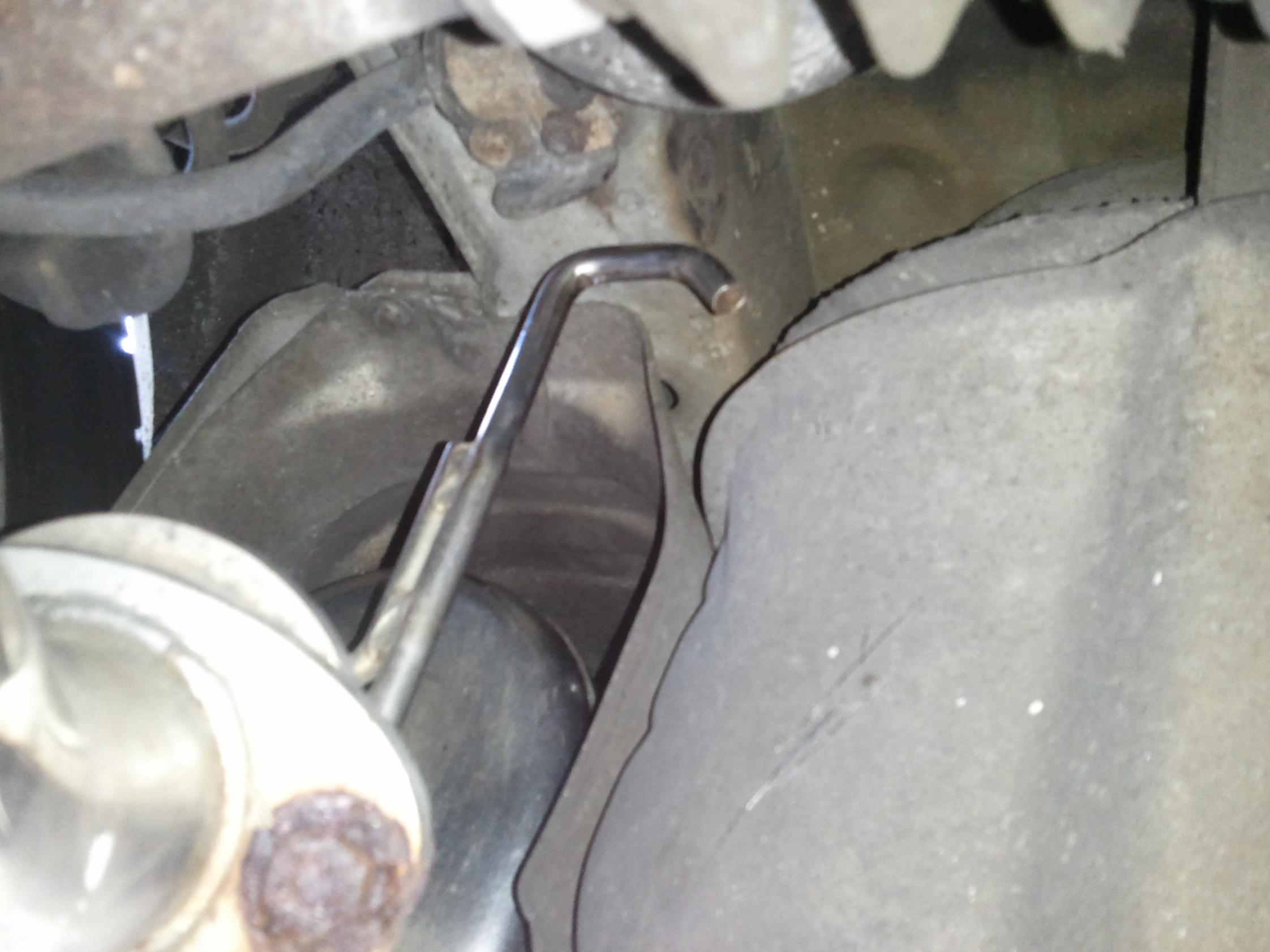

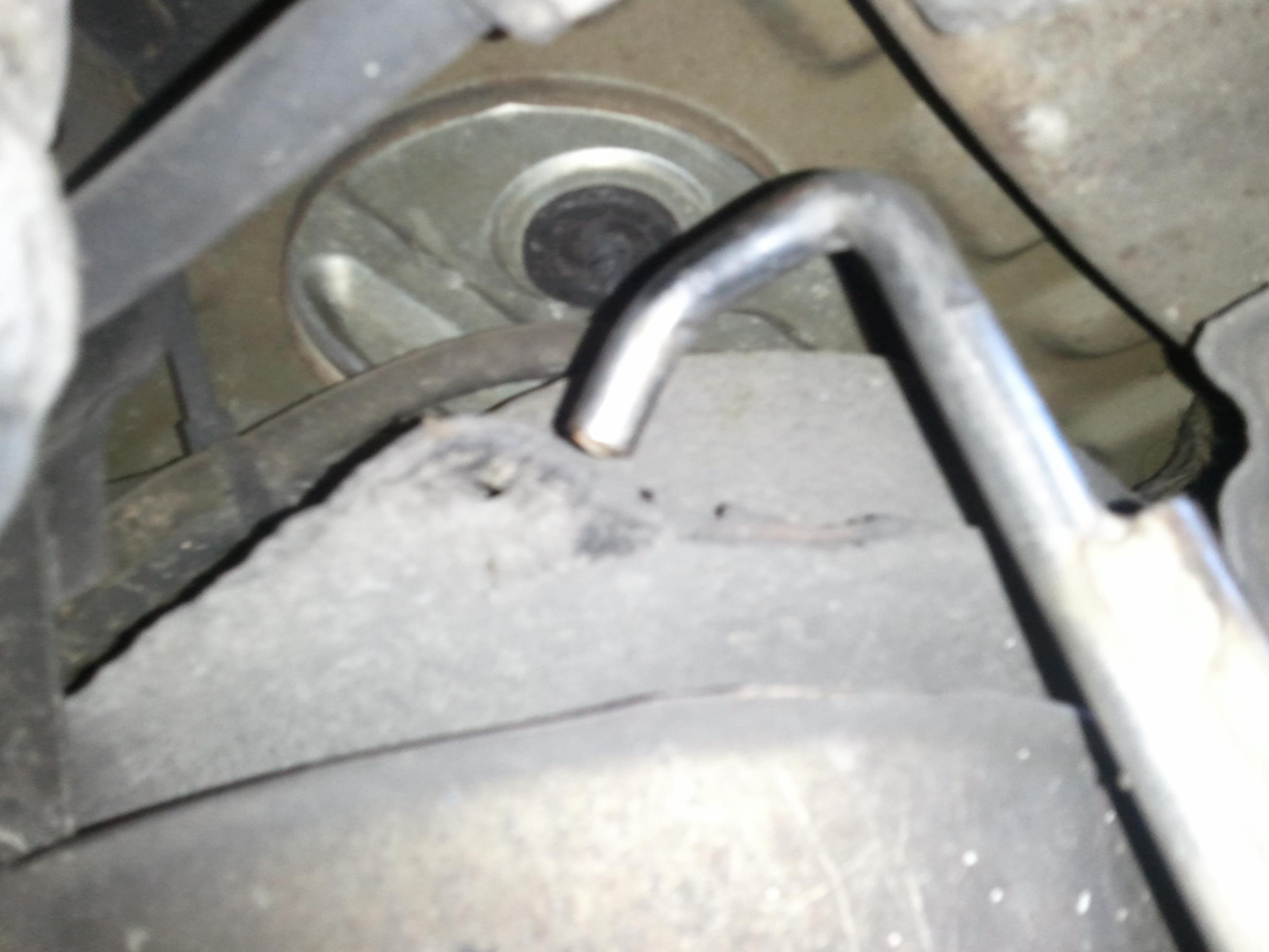

I also included two pictures of the hanger that I cant find a mount on the body for.
Attached Thumbnails Corksport PS Header into RB Presilencer, will it work?-end-header-driver-side.jpg   Corksport PS Header into RB Presilencer, will it work?-end-header-passenger-side.jpg   Corksport PS Header into RB Presilencer, will it work?-exhaust-hanger-2.jpg   Corksport PS Header into RB Presilencer, will it work?-exhuast-hanger.jpg
Reply
Old Sep 29, 2011 | 08:59 PM
  #27
88_N/A_GXL's Avatar
Thread Starter
Senior Member
Tenured Member 15 Years
iTrader: (3)

Joined: Oct 2008
Posts: 447
Likes: 0
From: Glenwood, Iowa
I don't know if it's different between s4 and s5 or vert, if yours is, and coupe but I specifically looked at that today while I was standing under the car dropping the tank. In that first hanger pic, if you look right at the end of the hanger tip and then follow that straight up to the frame, just right of that bolt, there is a circular looking spot and that's about where my hanger "stud" is. But, like I said, I don't know if it's different between s4/s5 vert/coupe. Maybe tomorrow if I can get into the lab, technically only allowed Tu and Th, I can try to snap a pic for ya, no promises tho.

Thanks for the header pix, pretty much exactly what I was wanting, left one doesn't tell me much except that I count four cars lol. But, beggars can't be choosers and that second one is more than plenty. Again, thanks for that pic.
Reply
Old Sep 30, 2011 | 08:55 AM
  #28
ace626's Avatar
Full Member
Tenured Member 05 Years
iTrader: (2)

Joined: Nov 2007
Posts: 97
Likes: 0
From: Rhode Island
Originally Posted by 88_N/A_GXL
I don't know if it's different between s4 and s5 or vert, if yours is, and coupe but I specifically looked at that today while I was standing under the car dropping the tank. In that first hanger pic, if you look right at the end of the hanger tip and then follow that straight up to the frame, just right of that bolt, there is a circular looking spot and that's about where my hanger "stud" is. But, like I said, I don't know if it's different between s4/s5 vert/coupe. Maybe tomorrow if I can get into the lab, technically only allowed Tu and Th, I can try to snap a pic for ya, no promises tho.

Thanks for the header pix, pretty much exactly what I was wanting, left one doesn't tell me much except that I count four cars lol. But, beggars can't be choosers and that second one is more than plenty. Again, thanks for that pic.
Is it a stud or a bolt? Any idea on the size and thread pitch? I found the hole in the frame but there is no stud/bolt in there.
Reply
Old Sep 30, 2011 | 11:50 AM
  #29
88_N/A_GXL's Avatar
Thread Starter
Senior Member
Tenured Member 15 Years
iTrader: (3)

Joined: Oct 2008
Posts: 447
Likes: 0
From: Glenwood, Iowa
I didn't mean exactly a stud, just like the part that you push the rubber hanger onto on the body.
Reply
Old Oct 4, 2011 | 09:32 AM
  #30
ace626's Avatar
Full Member
Tenured Member 05 Years
iTrader: (2)

Joined: Nov 2007
Posts: 97
Likes: 0
From: Rhode Island

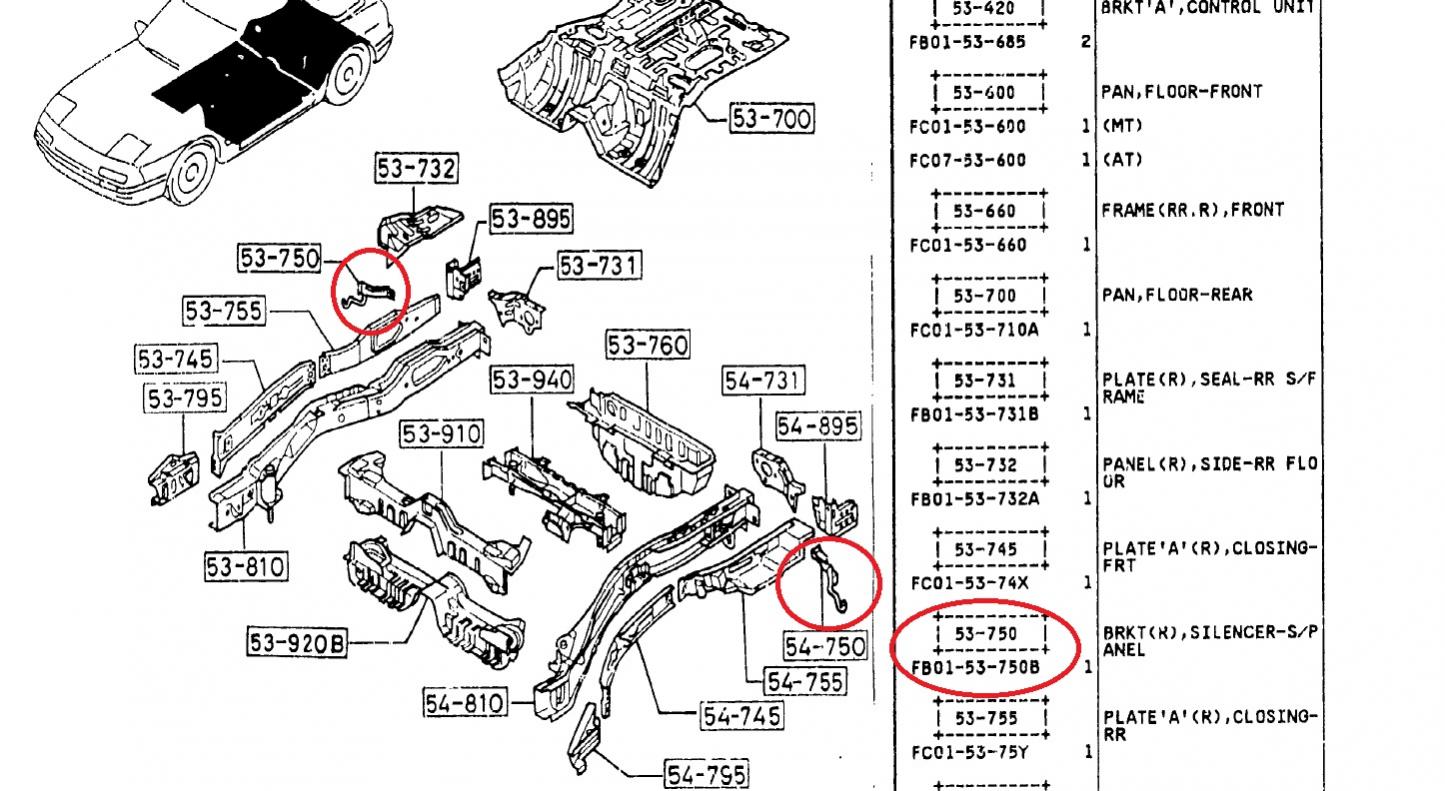

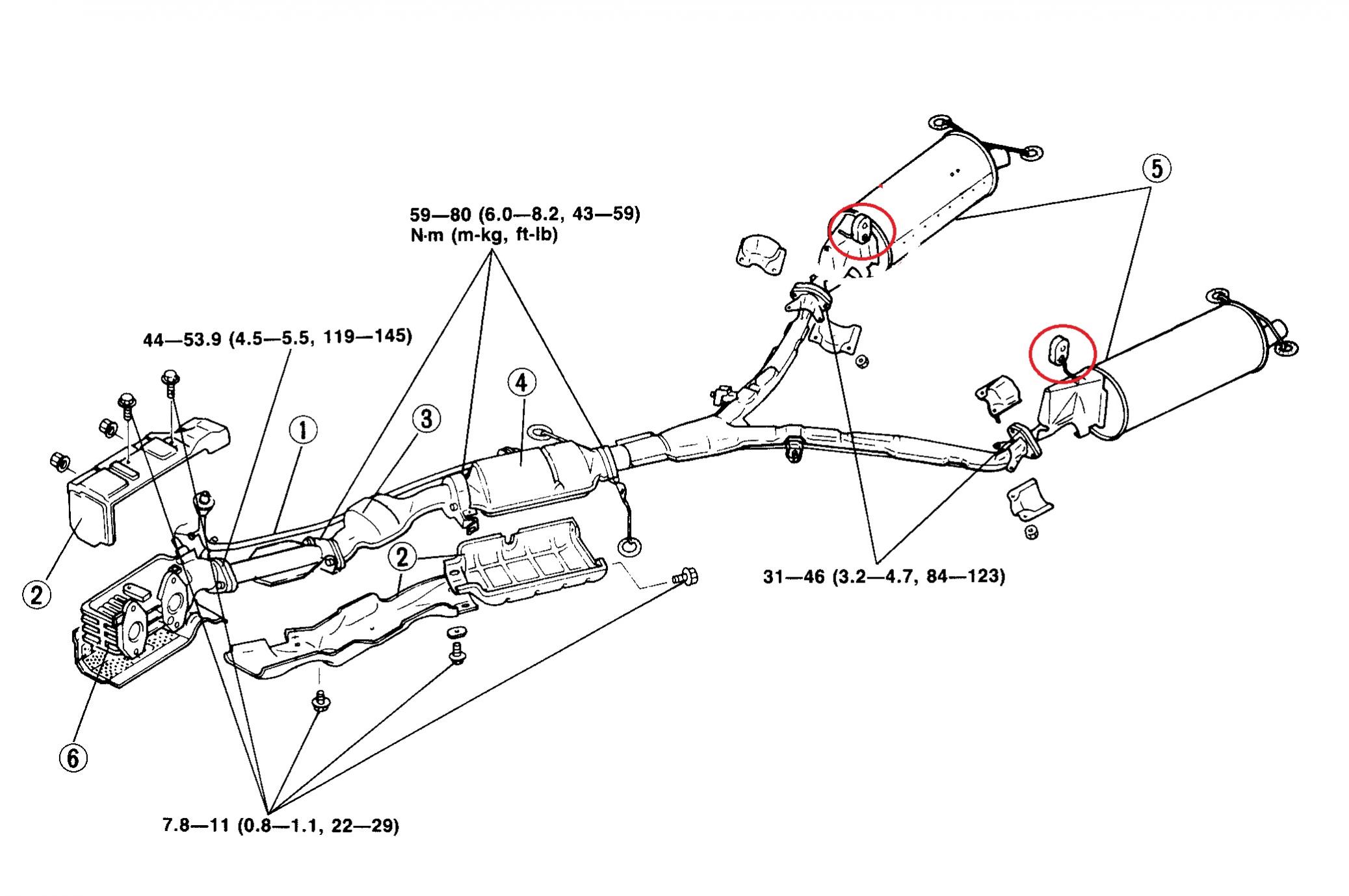

So I think the PO removed the exhaust hanger brackets from the frame rail. Does the last picture look like the part that the circled hangers in pic 2 hang from? Pic 1 is the hole where the bracket should.
Attached Thumbnails Corksport PS Header into RB Presilencer, will it work?-exhaust-hanger-2.jpg   Corksport PS Header into RB Presilencer, will it work?-exhaust-hangers.jpg   Corksport PS Header into RB Presilencer, will it work?-exhaust-hanger-bracket.jpg
Reply
Old Oct 4, 2011 | 10:43 AM
  #31
ace626's Avatar
Full Member
Tenured Member 05 Years
iTrader: (2)

Joined: Nov 2007
Posts: 97
Likes: 0
From: Rhode Island
Can't edit my last post. But I figured out I just need a bolt mazda part number 9978-60-835. The brackets in pic 3 are for the back of the mufflers where the rubber donuts hang.
Reply
