toyzforme

Does anybody have a part number or know how to find the coolant hose that connects to the water pump, runs under the intake manifold, and then connects to the rear iron? I blew mine at the race track this past weekend so I was done for the weekend. Bummer, but I have tried looking at parts breakdown for the 13B engine and can't seem to find the part listed anywhere. I need to get back on the track so if you know where to get one let me know. Thanks

unek87

If you look in my build thead I found a perfect hose just for that reason ( caps blew ) . I went walking through the back of the parts house going through all the hoses . I'll see if I got a pic of it still on my phone also .

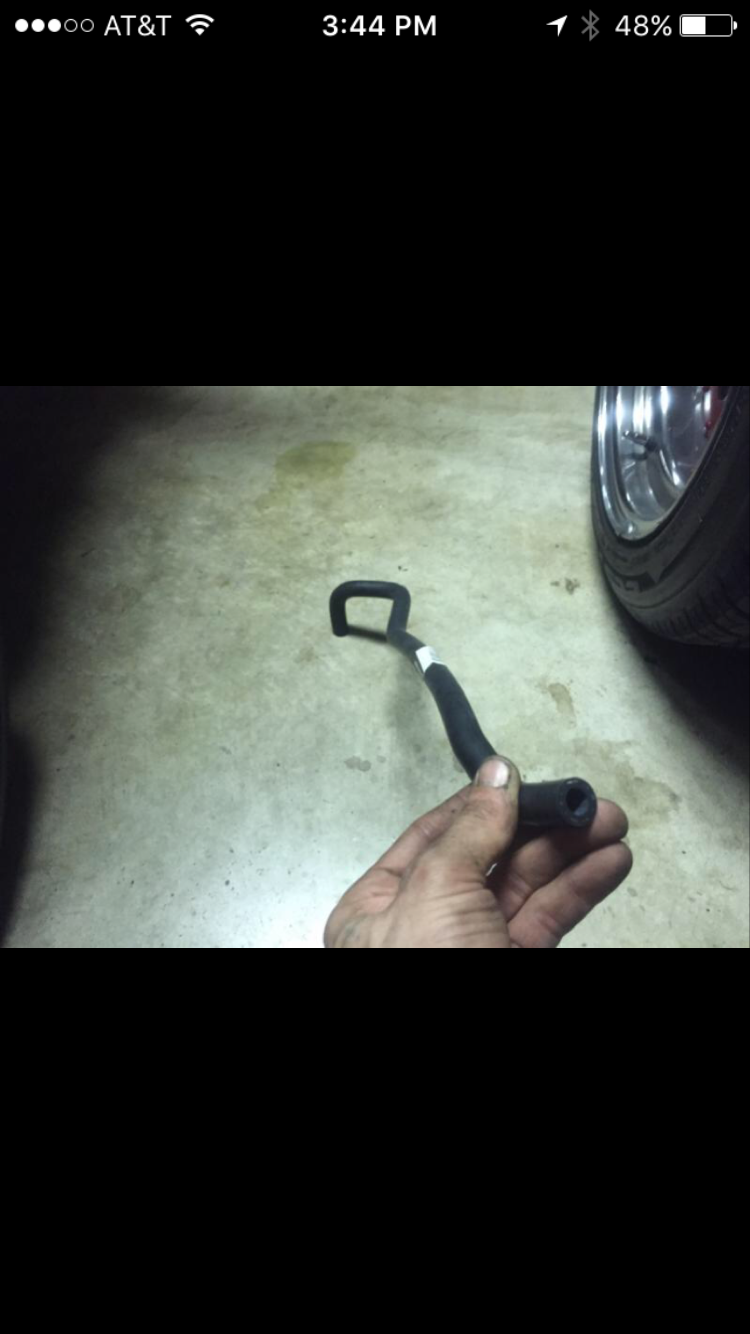

Here you go brotha . It's a gates 18321

toyzforme

And that hose worked for you without pinching when you put the intake manifold back on?

unek87

Yup it clears . . I swear it's like it was meant for it .it runs kinda In between the intakes below the secondary rail if that makes since

toyzforme

Cool will have to go see if I can find one at the parts store. Thanks for the info here is my race car with a 13B dropped in

Nitrometano

I just eliminate mine. But you can replace that hose using a stainless steel braided one. It will be stronger and resist much more pressure and temperature. You can buy per feet. Install it with with a good set of clamps and you are done.

NCross

iTrader: (18)

I replaced all mine with genuine Mazda hoses from Atkins. Theres just something about getting a package full of genuine Mazda parts with those blue stickers that just makes you feel warm and tingly.
