Compression down, MPG up? Suspect side seal compromised please advise!
#1
Compression down, MPG up? Suspect side seal compromised please advise!
The Basics:
9.4 rotors, s5 t2 irons, s5 n/a housings, Goopy seals, Mazda everything else. Stock s5 turbo with ported wg running 5psi. R-tek 2.1 running conservative timing maps. 5k miles.
The Problem:
I went down to Tampa to visit family and friends, Avg 17.4 mpg. Decided to do a Christmas eve run w/ some buddies on some twisty roads, so I filled up and burned through about 1/3 tank boosting up and down the road. On the way back I notice my vac had dropped from 20"hg @ 800rpm to 18, although the car ran fine, I was a little concerned. Imagine my surprise when I fill up to head home and discover my mpg has climbed to 18.4! If course I thought this a fluke, so I dismissed it, only to find on the return trip avg 20.3! Something happened ripping up those back roads, and it wasn't a Christmas miracle. Unfortunately...
I was headed back to Tampa a few says later, getting on to the road in 2nd gear, and right as I did a car popped out behind be attempting to pass a truck. I floored it to get up to speed, shifted to 3rd and noticed a lack of power and a slight hesitation. I shifted to 5th and coasted to light where she stalled and refused to start. (I was monitoring boost the whole time and it never went past 5psi, afr never went past 12.1).
I cut power to the fuel pump and was able to get her to turn over but of course it died immediately. I reconnected the pump and she cracked but did not start, until I held the pedal to the floor, then reluctantly she fired up and idled; very poorly. I had to manually keep the idle up to avoid stalling.
To avoid the cost of a tow truck I decided to limp her home. Surprisingly she ran great on the interstate (70+ mph @ 3k) and when I got home she idled; 12-18"hg @ 600-900 rpm (previously it had been consistently 18 @ 800).
The next day I went to see if she would start, and she did so easily. The idle didn't hunt, just settled at 16"hg @ 750rpm.
Thoroughly confused, I ran a compression test, front: 90-90-90, rear 60-60-30. That would suggest a side seal. However it runs better than I would expect for a blown seal. I mean other than taking a few more rotations to crank up, she runs just as good as before (although I haven't been boosting)
The Question(s):
What could cause an engine to lose vac and pick up mpg?
Could that be related to loss of compression?
What would cause these symptoms?
What (if anything) can be done to fix them? - rebuild is not an option currently
Is it safe to boost?
Also, the engine builder was lazy and didn't clean the carbon off the rotors, is it possible that some came loose and compromised the seals?
Any questions, suggestions or constructive comments would be greatly appreciated.
9.4 rotors, s5 t2 irons, s5 n/a housings, Goopy seals, Mazda everything else. Stock s5 turbo with ported wg running 5psi. R-tek 2.1 running conservative timing maps. 5k miles.
The Problem:
I went down to Tampa to visit family and friends, Avg 17.4 mpg. Decided to do a Christmas eve run w/ some buddies on some twisty roads, so I filled up and burned through about 1/3 tank boosting up and down the road. On the way back I notice my vac had dropped from 20"hg @ 800rpm to 18, although the car ran fine, I was a little concerned. Imagine my surprise when I fill up to head home and discover my mpg has climbed to 18.4! If course I thought this a fluke, so I dismissed it, only to find on the return trip avg 20.3! Something happened ripping up those back roads, and it wasn't a Christmas miracle. Unfortunately...
I was headed back to Tampa a few says later, getting on to the road in 2nd gear, and right as I did a car popped out behind be attempting to pass a truck. I floored it to get up to speed, shifted to 3rd and noticed a lack of power and a slight hesitation. I shifted to 5th and coasted to light where she stalled and refused to start. (I was monitoring boost the whole time and it never went past 5psi, afr never went past 12.1).
I cut power to the fuel pump and was able to get her to turn over but of course it died immediately. I reconnected the pump and she cracked but did not start, until I held the pedal to the floor, then reluctantly she fired up and idled; very poorly. I had to manually keep the idle up to avoid stalling.
To avoid the cost of a tow truck I decided to limp her home. Surprisingly she ran great on the interstate (70+ mph @ 3k) and when I got home she idled; 12-18"hg @ 600-900 rpm (previously it had been consistently 18 @ 800).
The next day I went to see if she would start, and she did so easily. The idle didn't hunt, just settled at 16"hg @ 750rpm.
Thoroughly confused, I ran a compression test, front: 90-90-90, rear 60-60-30. That would suggest a side seal. However it runs better than I would expect for a blown seal. I mean other than taking a few more rotations to crank up, she runs just as good as before (although I haven't been boosting)
The Question(s):
What could cause an engine to lose vac and pick up mpg?
Could that be related to loss of compression?
What would cause these symptoms?
What (if anything) can be done to fix them? - rebuild is not an option currently
Is it safe to boost?
Also, the engine builder was lazy and didn't clean the carbon off the rotors, is it possible that some came loose and compromised the seals?
Any questions, suggestions or constructive comments would be greatly appreciated.
Last edited by sharingan 19; 12-30-12 at 01:39 PM. Reason: more info
#4
rotors excite me
iTrader: (16)
^^^ he's right, that could lead to disaster. It may not, but it's certainly a risk.
It could be a combination of things. A vacuum leak could cause some of the issues, stuck seals could cause low compression yet still run relatively well, and highway mileage can vary a lot depending on the wind and such. I've seen 25mpg highway before on a long trip with my S4 TII, but it's often more like 20-21mpg highway.
60-60-30 is really low, I'd check again making sure it's warmed up first. I'm not real sure how or why it would idle well with ok compression up front then such terrible numbers in back, so I wonder if the test was somehow a fluke.
It could be a combination of things. A vacuum leak could cause some of the issues, stuck seals could cause low compression yet still run relatively well, and highway mileage can vary a lot depending on the wind and such. I've seen 25mpg highway before on a long trip with my S4 TII, but it's often more like 20-21mpg highway.
60-60-30 is really low, I'd check again making sure it's warmed up first. I'm not real sure how or why it would idle well with ok compression up front then such terrible numbers in back, so I wonder if the test was somehow a fluke.
#6
Full Member
Join Date: Sep 2012
Location: Bay Area, California
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
Wow, really well writin' post. Rare to see on here to be honest. You know enough to ask the right questions and are very detail oriented.
With that, I am watching the responses closely to see what "I" can learn from this. =D
Good luck friend.
With that, I am watching the responses closely to see what "I" can learn from this. =D
Good luck friend.
#7
^^^ he's right, that could lead to disaster. It may not, but it's certainly a risk.
It could be a combination of things. A vacuum leak could cause some of the issues, stuck seals could cause low compression yet still run relatively well, and highway mileage can vary a lot depending on the wind and such. I've seen 25mpg highway before on a long trip with my S4 TII, but it's often more like 20-21mpg highway.
60-60-30 is really low, I'd check again making sure it's warmed up first. I'm not real sure how or why it would idle well with ok compression up front then such terrible numbers in back, so I wonder if the test was somehow a fluke.
It could be a combination of things. A vacuum leak could cause some of the issues, stuck seals could cause low compression yet still run relatively well, and highway mileage can vary a lot depending on the wind and such. I've seen 25mpg highway before on a long trip with my S4 TII, but it's often more like 20-21mpg highway.
60-60-30 is really low, I'd check again making sure it's warmed up first. I'm not real sure how or why it would idle well with ok compression up front then such terrible numbers in back, so I wonder if the test was somehow a fluke.
This is not normal mileage variance. For 8 months the mileage has not varied by more than 1mpg. Low 18's city high 18's highway, even with hooning around in a parking lot. Which I always thought was strange, since stock is 17/25 you would expect if it could muster 18 city, the hwy mileage would likewise improve (i too saw 25mpg a few times on long trips w/ the stock engine). About a month ago when the weather started getting cooler mileage began dropping as well, down to 17mpg. So jumping 3 mpg in 3 days is not normal.
I did the rear test first actually, after driving over to a friend house. It was at operating temp when I arrived and I let it cool for 10-15 min. I used a piston tester w/ Schrader valve removed. I used the leading plug hole and battery voltage was 11.X Funny thing is, I did the auditory test and the pulses sounded pretty even. Maybe it was a fluke, although I ran the test twice with me looking and twice w/ my buddy looking.
Trending Topics
#8
What would a chipped apex seal do?
Yeah, exactly...how bout not remove the n/a exhaust baffles before building the engine, and grinding them out after the fact...
#10
talking head
im suss on the test.. should be done at trailing hole and both rotors compared under same conditions on a dry engine
its possible one rotor is wetter than other and gives a false result
my immediate thought is you have a lazy leading plug and possibly some carbon lock issues
and these can be easily sorted
.. use water to siphon in while engine is running to steam clean it
then change to new leading plugs , run and warm up engine.. shut it down then perform test
use shraeder button in bypass for bounce count
use shraeder not bypassed for peak number
trailing plug location.. throttle wide open .. fuel pump fuse pulled
its possible one rotor is wetter than other and gives a false result
my immediate thought is you have a lazy leading plug and possibly some carbon lock issues
and these can be easily sorted
.. use water to siphon in while engine is running to steam clean it
then change to new leading plugs , run and warm up engine.. shut it down then perform test
use shraeder button in bypass for bounce count
use shraeder not bypassed for peak number
trailing plug location.. throttle wide open .. fuel pump fuse pulled
#11
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
im suss on the test.. should be done at trailing hole and both rotors compared under same conditions on a dry engine
its possible one rotor is wetter than other and gives a false result
my immediate thought is you have a lazy leading plug and possibly some carbon lock issues
and these can be easily sorted
.. use water to siphon in while engine is running to steam clean it
then change to new leading plugs , run and warm up engine.. shut it down then perform test
use shraeder button in bypass for bounce count
use shraeder not bypassed for peak number
trailing plug location.. throttle wide open .. fuel pump fuse pulled
its possible one rotor is wetter than other and gives a false result
my immediate thought is you have a lazy leading plug and possibly some carbon lock issues
and these can be easily sorted
.. use water to siphon in while engine is running to steam clean it
then change to new leading plugs , run and warm up engine.. shut it down then perform test
use shraeder button in bypass for bounce count
use shraeder not bypassed for peak number
trailing plug location.. throttle wide open .. fuel pump fuse pulled
so yeah i'd do the water decarbon thing, change the plugs/inspect the ignition, and then retest. the good thing is that the water decorboning means less scraping if you do have to pull the engine.
#12
I just changed the plugs, so I will swap the old ones back in and do the stream clean procedure.
Also worth noting; when I went to pull the plugs I discovered there were 2 leading plugs in the front housing and 2 trailing plug in the rear housing. I'm guessing it probably didn't make much difference at such a low boost level, and when I checked the plugs they didn't look like they were overheated or run lean.
When you say "check the ignition" What procedures are you referring to?

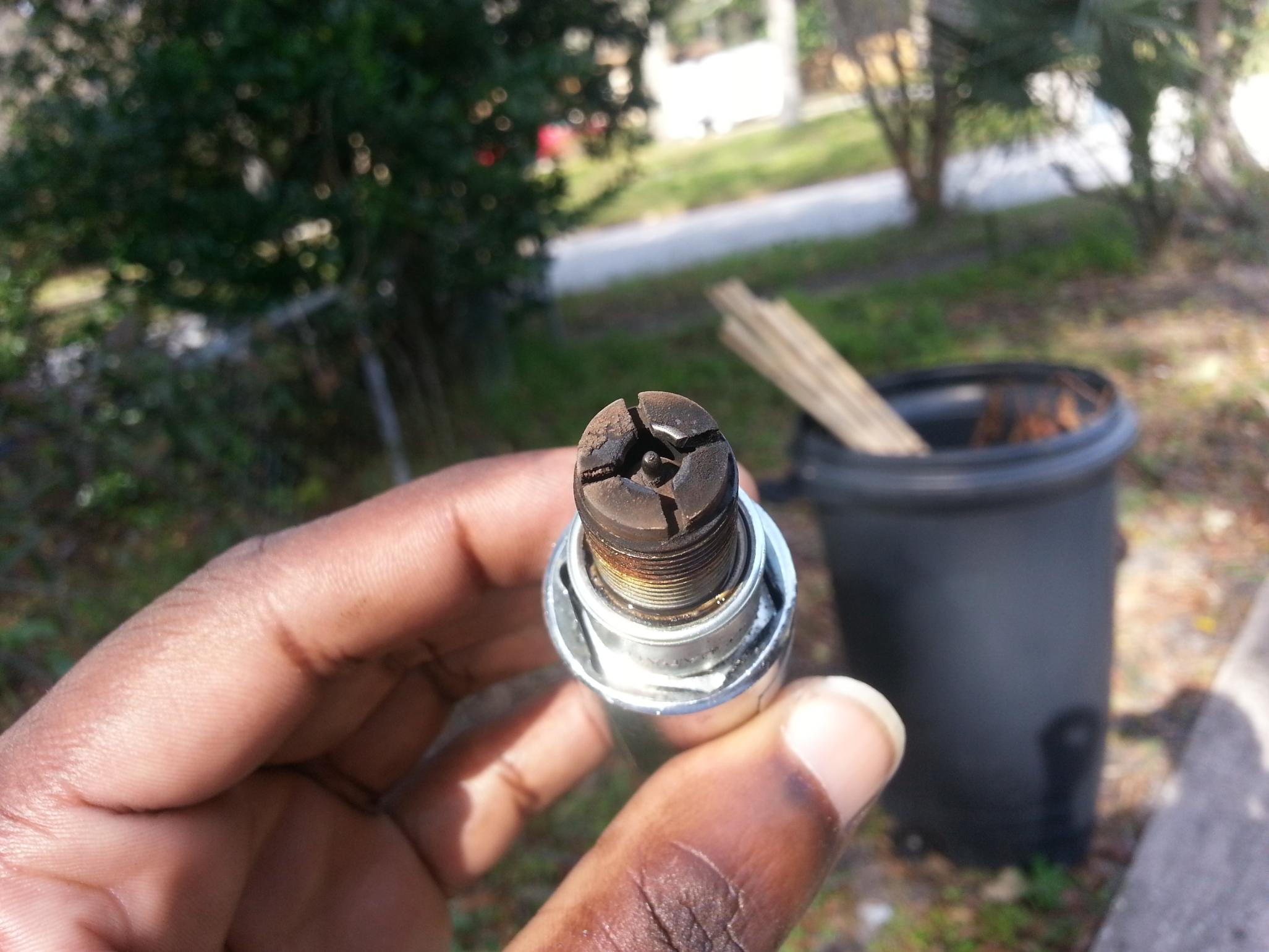

Attached is a pic of the rear leading plug, the front leading plug was a little darker, but it doesn't want to upload.
Also worth noting; when I went to pull the plugs I discovered there were 2 leading plugs in the front housing and 2 trailing plug in the rear housing. I'm guessing it probably didn't make much difference at such a low boost level, and when I checked the plugs they didn't look like they were overheated or run lean.
When you say "check the ignition" What procedures are you referring to?
Attached is a pic of the rear leading plug, the front leading plug was a little darker, but it doesn't want to upload.
#14
rotors excite me
iTrader: (16)
This is not normal mileage variance. For 8 months the mileage has not varied by more than 1mpg. Low 18's city high 18's highway, even with hooning around in a parking lot. Which I always thought was strange, since stock is 17/25 you would expect if it could muster 18 city, the hwy mileage would likewise improve (i too saw 25mpg a few times on long trips w/ the stock engine). About a month ago when the weather started getting cooler mileage began dropping as well, down to 17mpg. So jumping 3 mpg in 3 days is not normal.
I did the rear test first actually, after driving over to a friend house. It was at operating temp when I arrived and I let it cool for 10-15 min. I used a piston tester w/ Schrader valve removed. I used the leading plug hole and battery voltage was 11.X Funny thing is, I did the auditory test and the pulses sounded pretty even. Maybe it was a fluke, although I ran the test twice with me looking and twice w/ my buddy looking.
A vacuum leak can make it run poorly, but shouldn't affect a compression test. You had the throttle open during the test?
#15
Full Member
Join Date: Sep 2012
Location: Bay Area, California
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
#17
No, it just depends on how much risk you're willing to accept. I've done the steam test on my own motors with good and bad results before, though I can't say for sure that when my original motor locked during a startup that it was due to carbon dislodging, it was already a tired motor. If it were me I'd probably do it, but it's an auxiliary vehicle, too.
I suppose, did you see your mileage jump during the same types of driving? I was under the impression you'd just done some extra highway driving, maybe I was mistaken.
That definitely sounds strange...
A vacuum leak can make it run poorly, but shouldn't affect a compression test. You had the throttle open during the test?
A vacuum leak can make it run poorly, but shouldn't affect a compression test. You had the throttle open during the test?
#18
rotors excite me
iTrader: (16)
This builder recommends checking from the leading:
Rotary Resurrection home of the budget rebuild.
#21
Turbo power, activate!
iTrader: (7)
60-60-30 on the rear is really really low.
Either the seals are stuck somehow, or it can be totally trashed by something breaking off and scraping along the rotor and housing. I would take off the turbo and manifolds, get a flashlight and look into the exhaust port. If the exhaust diffusers in the housing are still in there, it might be hard to stick your finger in and feeling the housing surface and the apex seals.
Either the seals are stuck somehow, or it can be totally trashed by something breaking off and scraping along the rotor and housing. I would take off the turbo and manifolds, get a flashlight and look into the exhaust port. If the exhaust diffusers in the housing are still in there, it might be hard to stick your finger in and feeling the housing surface and the apex seals.
#22
talking head
trailing plug hole give highest result,, esp. in rx7 12a's ..LDR rotor chambers multiply the effect
ive been doing it 20 + yrs.. dont need to read up on it..
proper test is/ has always been via the trailing plug hole
,, if you wish to know why
then the answer is found in a simple observation of some of those mazda scientific papers that also show when and where maximum chamber pressure is achieved
again,, whatever the test is ,, its relative to location,, test rpm.. throttle restriction , engine temp and chamber dryness
ive been doing it 20 + yrs.. dont need to read up on it..
proper test is/ has always been via the trailing plug hole
,, if you wish to know why
then the answer is found in a simple observation of some of those mazda scientific papers that also show when and where maximum chamber pressure is achieved
again,, whatever the test is ,, its relative to location,, test rpm.. throttle restriction , engine temp and chamber dryness
#23
talking head
http://wright-here.net/files/manuals.../_C_engine.pdf
c-9 .. clearly states trailing plugs ( mazda FSM )
differences are not huge in MDR chamber engines. ... but can be fairly significant differences in the LDR 12a engines
..again it doesnt matter as long as apples are always compared to apples
c-9 .. clearly states trailing plugs ( mazda FSM )
differences are not huge in MDR chamber engines. ... but can be fairly significant differences in the LDR 12a engines
..again it doesnt matter as long as apples are always compared to apples
#24
Thank you very much! Great info! I doubt the rear rotor will jump up to 90, and I did test the front and rear the same way, but after I stream clean I will use the trailing plug location, they c are easier to get to anyway.
Not sure if this matters, but that Christmas eve run was the first time I ran the engine hard since it was rebuilt 8 months ago. Seems like an odd coincidence that vac would drop and mpg would go up immediately after....
Ive red lined it before and boosted, but never got more than a single gear pull. That night I routinely topped out 2nd and 3rd and started pulling in 4th. Could something have "shifted" internally as a result?
Yeah, I keep hearing that, but I also keep hearing it shouldn't idle at smoothly@ 800 (like it did prior) and hold steady vac (16 ish) so I'm a little puzzled. I really don't feel like removing the turbo to check because:
A) you can't inspect side seals from the exhaust ports
B) it's a time consuming mess
C) I don't have the money for a rebuild, so regardless of what I find I'm going to have to put it back on and drive too work the next day......or walk, depending on how the cleaning goes
Not sure if this matters, but that Christmas eve run was the first time I ran the engine hard since it was rebuilt 8 months ago. Seems like an odd coincidence that vac would drop and mpg would go up immediately after....
Ive red lined it before and boosted, but never got more than a single gear pull. That night I routinely topped out 2nd and 3rd and started pulling in 4th. Could something have "shifted" internally as a result?
60-60-30 on the rear is really really low.
Either the seals are stuck somehow, or it can be totally trashed by something breaking off and scraping along the rotor and housing. I would take off the turbo and manifolds, get a flashlight and look into the exhaust port. If the exhaust diffusers in the housing are still in there, it might be hard to stick your finger in and feeling the housing surface and the apex seals.
Either the seals are stuck somehow, or it can be totally trashed by something breaking off and scraping along the rotor and housing. I would take off the turbo and manifolds, get a flashlight and look into the exhaust port. If the exhaust diffusers in the housing are still in there, it might be hard to stick your finger in and feeling the housing surface and the apex seals.
A) you can't inspect side seals from the exhaust ports
B) it's a time consuming mess
C) I don't have the money for a rebuild, so regardless of what I find I'm going to have to put it back on and drive too work the next day......or walk, depending on how the cleaning goes
#25
Update!
So I decided to try the stream cleaning trick.....
I used the "one rotor at a time methodology" figuring I would do the rear first, and that would make the front easier once it was un-stuck...no dice.

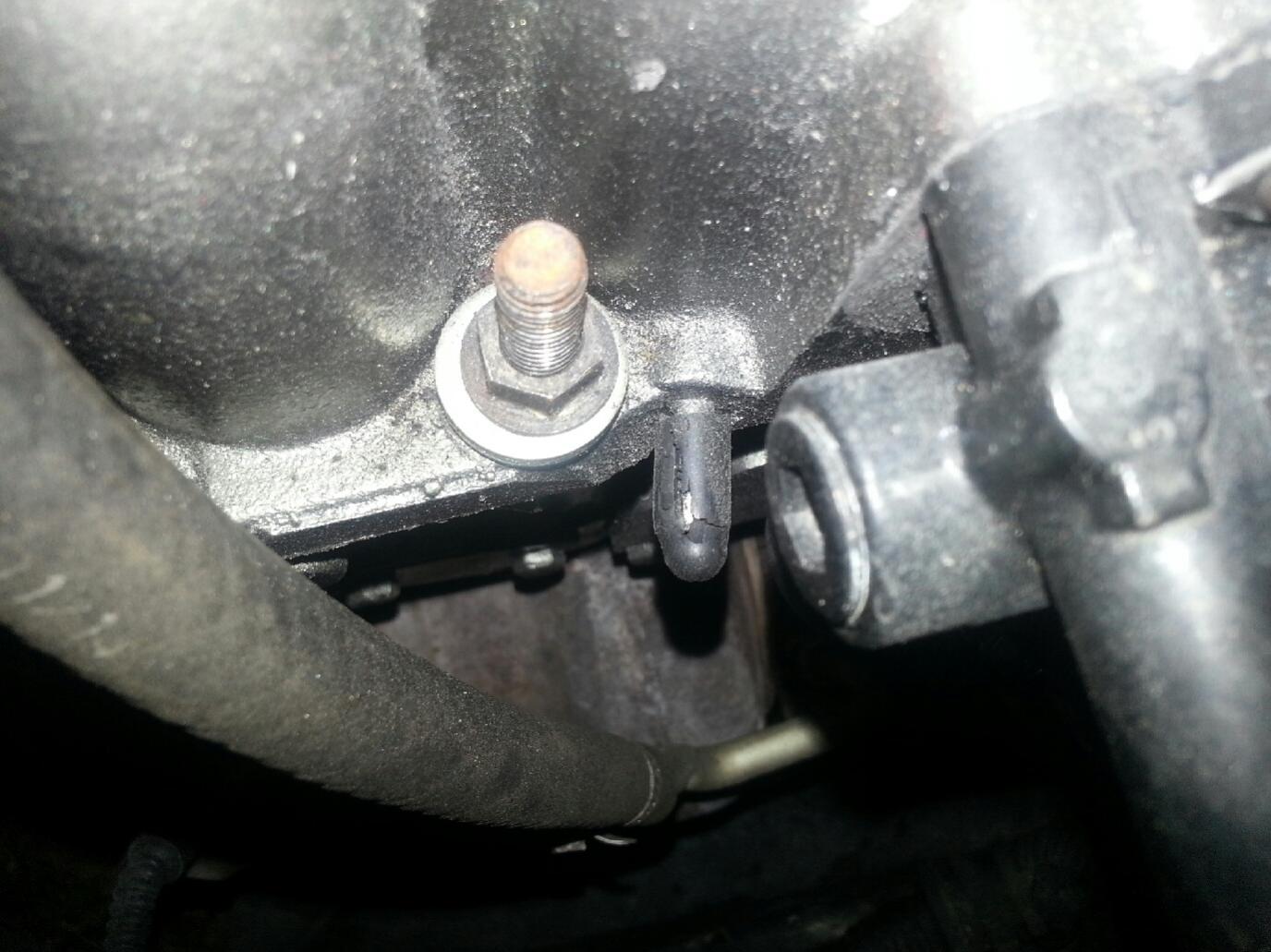

First thing I noticed was the vac nipple pictured below, when I went to put the line on that nipple. It appeared fine until I rotated it to remove it, then I saw that it was trashed.
I proceeded to hook up the line, rev the engine to 2500 and run 750ml of water through, without incident, it smoked a bit, and steamed consistently but all was well. Until I removed the line and it stalled.
I was able to get it started and rigged the pedal to 2500 and proceeded to hook the line up to the top most nipple on the front side of the uim (which normally goes to my bov). As soon as I stated feeding it water, it began struggling and shortly died. This time refusing to start until I used the fuel cut switch.
Now it won't even idle with everything hooked back up, so I figured I'd come type this up.
Perhaps the rear spark plugs a are covered in carbon and unable to sustain the cleaning of the front rotor?
New theory: perhaps that nipple being broken caused a lean condition that did actual damage to the rear rotor?
I used the "one rotor at a time methodology" figuring I would do the rear first, and that would make the front easier once it was un-stuck...no dice.
First thing I noticed was the vac nipple pictured below, when I went to put the line on that nipple. It appeared fine until I rotated it to remove it, then I saw that it was trashed.
I proceeded to hook up the line, rev the engine to 2500 and run 750ml of water through, without incident, it smoked a bit, and steamed consistently but all was well. Until I removed the line and it stalled.
I was able to get it started and rigged the pedal to 2500 and proceeded to hook the line up to the top most nipple on the front side of the uim (which normally goes to my bov). As soon as I stated feeding it water, it began struggling and shortly died. This time refusing to start until I used the fuel cut switch.
Now it won't even idle with everything hooked back up, so I figured I'd come type this up.
Perhaps the rear spark plugs a are covered in carbon and unable to sustain the cleaning of the front rotor?
New theory: perhaps that nipple being broken caused a lean condition that did actual damage to the rear rotor?
