car wont stop running after ignition key removed?
06-10-05, 12:46 PM
#1
Rotary Enthusiast
Thread Starter
Join Date: Mar 2001
Location: St. Charles, IL
Posts: 833
Likes: 0
Received 0 Likes
on
0 Posts
car wont stop running after ignition key removed?
as stated above. i solved the problem by swapping out the headlight switch on the cluster.. but the question is what do these 2 have in common? if i pull the headlight switch under the hood the power stops as well. so somewhere in here theres a possible wire occasionally rubbing and caused my headlight switch to overload?
could this be related to my headlights going up and down while the key is in the run position? anyone know where i can look at the diagram?
could this be related to my headlights going up and down while the key is in the run position? anyone know where i can look at the diagram?
06-10-05, 12:59 PM
#2
Lives on the Forum
Actually, looking for a chaffing wire(s) is fairly easy- just follow the bundle, and look closely at every spot that could be suspect. Very, very, VERY rarely do wires inside of a bundle chaff against each other (I've never seen it), so any chaffing will be on the external wiring in the bundle, and be readily visible upon inspection.
You could also turn the key on, laugh a bit at your haunted headlights, then proceed to move different areas of the wiring harness to see if anything is affected...
BTW- have you done any alternator work lately?
You could also turn the key on, laugh a bit at your haunted headlights, then proceed to move different areas of the wiring harness to see if anything is affected...
BTW- have you done any alternator work lately?
Last edited by WAYNE88N/A; 06-10-05 at 01:02 PM.
06-10-05, 01:09 PM
#3
Rotary Enthusiast
Thread Starter
Join Date: Mar 2001
Location: St. Charles, IL
Posts: 833
Likes: 0
Received 0 Likes
on
0 Posts
heres what its lookin like. the old switch no works again so a wire is the suspect. i believe that the "up" wire for the retractors is somehow getting a 12v feed that is only live when the ignition is present. the switch tells it to go down so it tries going down but the up is saying go up again. so it repeats process over and over. and now with my new problem i think more than 1 wire may be chaffed or touching. 1 wire before the fuse box but after the fuse block (underhood) because when i would unplug the headlight fuse it would shut off with the key off. so im thinking somewhere between the ignition bundle and headlight bundle theres a wire or a few that are missing their rubber coating and occasoinally touching. anyone else follow this logic?
06-10-05, 01:20 PM
#4
Lives on the Forum
OK, so your major malfunction seems to be that the headlight circuit is feeding into the retractor circuit. BUT, you said earlier that when the retractor fuse was pulled, everything came to a screeching halt, right?
Do you know how to read a schematic? The retractor circuit is easy; the headlight circuit (including the cluster switch) somewhat more difficult (I don't know why Mazda designed it like that, they could have made it a hell of a lot simpler to get the same results).
You're going to have to troubleshoot, by breaking the circuits down (usually at the plugs or components) and making sure each section is doing what it's supposed to do by taking voltage readings.
There are a LOT of diodes in this system, and when diodes short out, lots of funky things happen. Do you know how to troubleshoot a diode?
Do you know how to read a schematic? The retractor circuit is easy; the headlight circuit (including the cluster switch) somewhat more difficult (I don't know why Mazda designed it like that, they could have made it a hell of a lot simpler to get the same results).
You're going to have to troubleshoot, by breaking the circuits down (usually at the plugs or components) and making sure each section is doing what it's supposed to do by taking voltage readings.
There are a LOT of diodes in this system, and when diodes short out, lots of funky things happen. Do you know how to troubleshoot a diode?
06-10-05, 02:25 PM
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

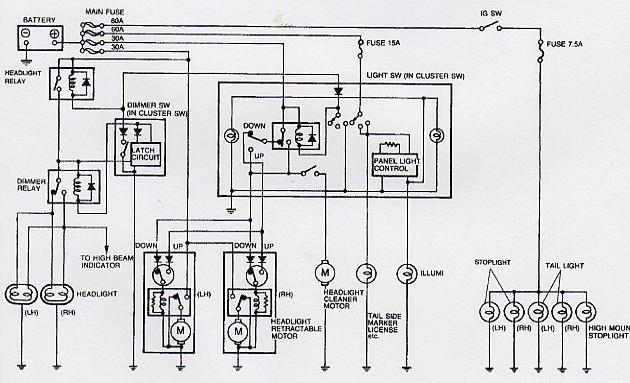

https://www.rx7club.com/forum/attach...chmentid=89313
There's a schematic of the headlight circuit in the ONLINE 89 FSM. It's in the BODY ELECTRICAL SYSTEM
A larger schematic of a series four in this post: https://www.rx7club.com/forum/showth...light=attached
There's a schematic of the headlight circuit in the ONLINE 89 FSM. It's in the BODY ELECTRICAL SYSTEM
A larger schematic of a series four in this post: https://www.rx7club.com/forum/showth...light=attached
Last edited by HAILERS; 06-10-05 at 02:33 PM.
09-06-05, 10:13 AM
#7
Senior Member
Join Date: Oct 2003
Location: Sherbrooke,QC,Canada
Posts: 271
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by WAYNE88N/A
Actually, looking for a chaffing wire(s) is fairly easy- just follow the bundle, and look closely at every spot that could be suspect. Very, very, VERY rarely do wires inside of a bundle chaff against each other (I've never seen it), so any chaffing will be on the external wiring in the bundle, and be readily visible upon inspection.
You could also turn the key on, laugh a bit at your haunted headlights, then proceed to move different areas of the wiring harness to see if anything is affected...
BTW- have you done any alternator work lately?
You could also turn the key on, laugh a bit at your haunted headlights, then proceed to move different areas of the wiring harness to see if anything is affected...
BTW- have you done any alternator work lately?
I did alternator work this morning, and now my car wont stop.
What is wrong?
