Can Someone Identify These Sensors?
Automatic = Power drain
Joined: Nov 2006
Posts: 399
Likes: 0
From: Pennsylvania
Yes, but I don't remmeber which is which. (You may be able to find the answer in the manual transmsission section of the FSM).
http://www.teamfc3s.org/main/factory_service_manual/
http://www.teamfc3s.org/main/factory_service_manual/
HAILERS
Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
Neutral on the right. A combination Reverse and fifth gear(over the top) on the left. If it's a *import* the switch on the left has but one function. Reverse.
The combination switch on the left will have four wires if for two functions.
The combination switch on the left will have four wires if for two functions.
Thread Starter
Joined: Jan 2008
Posts: 438
Likes: 5
From: Ft Worth, Tx

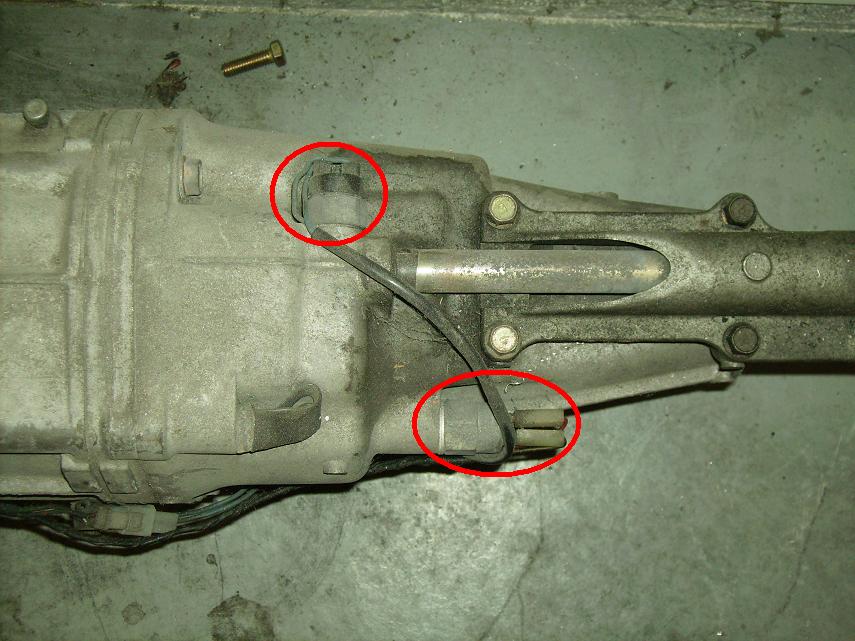

Thanks. Only two wires on both. When you say "right", is that the sensor on the upper portion of the picture, or the lower?
HAILERS
Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
Looking forward in the car, the switch on the right is neutral switch. The switch on the left is the reverse. You'll have no over the top functions anymore. Not a big deal....I suppose.
