CA Can somebody help identify this connector? Pics

OK so I removed my alternator this morning and that's when I noticed this wire connector not hooked up anywhere. I looked for anything obvious but I'm stumped. Its a '90 NA by the way. Air pump was removed by previous owner, so maybe that could have something to do with it, idk. any help would be great.

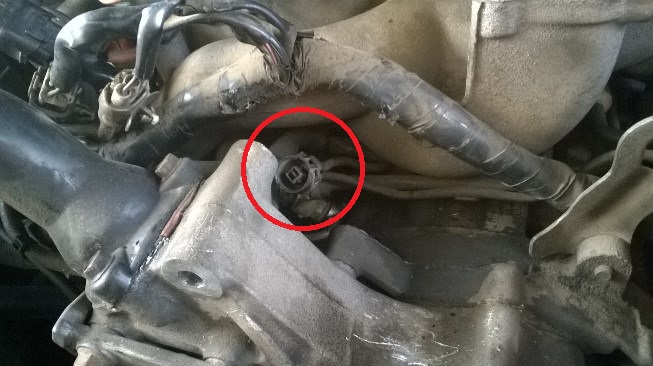

Name:  altpic1_zps8313e912.jpg
Views: 40
Size:  126.3 KB

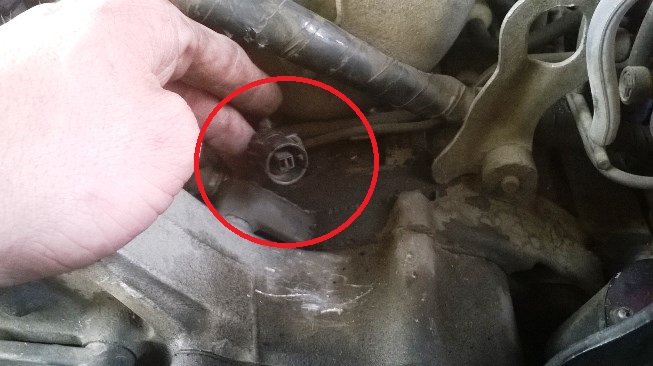

Name:  WP_20140302_002_zps3e86c211.jpg
Views: 38
Size:  110.0 KB

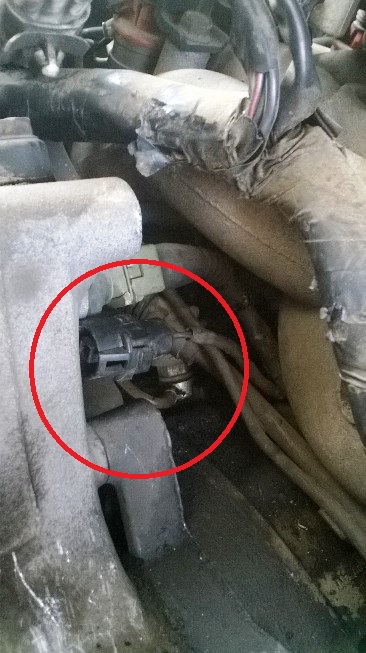

Name:  WP_20140302_003_zpsc279283a.jpg
Views: 69
Size:  129.6 KB
Reply
Old Mar 4, 2014 | 11:33 PM
  #2
clokker's Avatar
Cake or Death?
Tenured Member 10 Years
iTrader: (2)

Joined: Jan 2007
Posts: 10,249
Likes: 64
From: Mile High
That goes to the aux. electric fan sensor...which you probably don't have.
Reply
Old Mar 5, 2014 | 12:01 AM
  #3
DankestKush's Avatar
Thread Starter
Full Member
Tenured Member: 10 Years
iTrader: (4)

Joined: Aug 2011
Posts: 246
Likes: 2
From: Las Vegas, NV
Originally Posted by clokker
That goes to the aux. electric fan sensor...which you probably don't have.
Thanks man. I dont think i have one how would i know for sure as far as i know i can only see a clutch fan,
Reply
Old Mar 5, 2014 | 12:13 AM
  #4
clokker's Avatar
Cake or Death?
Tenured Member 10 Years
iTrader: (2)

Joined: Jan 2007
Posts: 10,249
Likes: 64
From: Mile High
You'd have a small efan (8 or 10", IIRC) on the front of your radiator.
Reply
Old Mar 5, 2014 | 07:20 PM
  #5
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,835
Likes: 3,232
From: https://www2.mazda.com/en/100th/
Originally Posted by clokker
You'd have a small efan (8 or 10", IIRC) on the front of your radiator.
and an automatic transmission. the harness was the same on every car, so they all COULD have fans, but an M/T S5 NA wont
