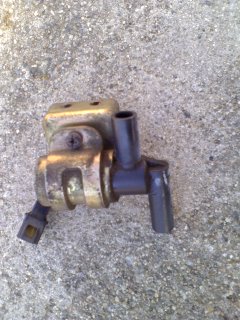

can anyone tell me what this piece is?
08-24-07, 05:20 PM
#3
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2005
Location: Canada
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts

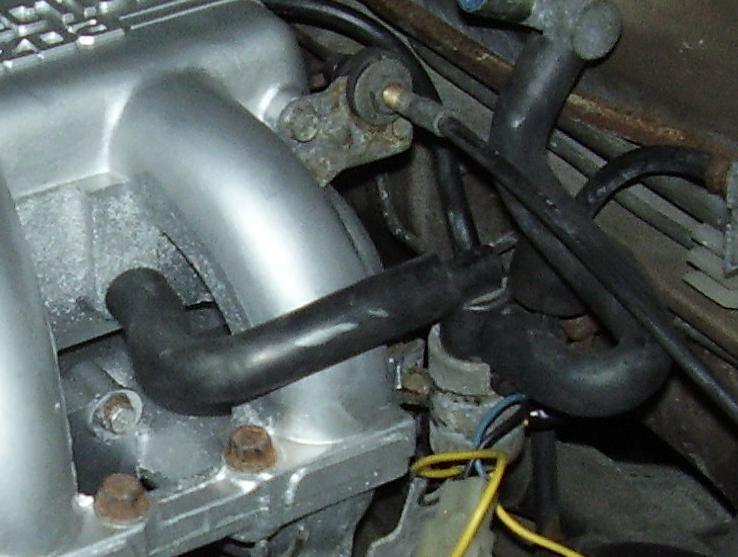

Its a valve that is connected to the UIM for emmisions purposes...I dont remember the name
It connects on the driver side of the UIM, a big nipple.
The pressure sensor hooks up the the nipple on the UIM on the passenger side.
It connects on the driver side of the UIM, a big nipple.The pressure sensor hooks up the the nipple on the UIM on the passenger side.
Trending Topics
08-24-07, 05:47 PM
#11
Non-op
Thread Starter
iTrader: (2)
Join Date: Jul 2005
Location: San francisco
Posts: 462
Likes: 0
Received 0 Likes
on
0 Posts
oh and instead of starting a new thread? whats the easiest way to take off oil cooler lines. those are on tight as **** to take off. its not even funny. i need to hook them up to the new engine. more specifically its the bolts on the cooler itself.
08-24-07, 05:58 PM
#12
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2005
Location: Canada
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Best way is with an impact gun and a 23mm socket. Otherwise, 23mm socket, ratchet with a breaker bar. If you use the ratchet, dont unbolt the oil cooler, take out the bolts where it is. You will have to remove the rad though...
DO NOT HEAT IT UP WITH A TORCH!
DO NOT HEAT IT UP WITH A TORCH!
08-24-07, 06:07 PM
#13
Non-op
Thread Starter
iTrader: (2)
Join Date: Jul 2005
Location: San francisco
Posts: 462
Likes: 0
Received 0 Likes
on
0 Posts
well hte thing is that i already removed the old engine with the oil cooler cause the lines wouldnt come out. so its sitting outside the bay ontop of the old engine. so its a size 23 for sure? thats great ill just run down to my store and pick one up.
08-24-07, 06:10 PM
#15
Non-op
Thread Starter
iTrader: (2)
Join Date: Jul 2005
Location: San francisco
Posts: 462
Likes: 0
Received 0 Likes
on
0 Posts
thanks for the info. ill be refering to this thread all day for help. also is it fairly obvious where the pressure sensor would hook up to on hte uim? is it a lone nipple?
08-24-07, 06:11 PM
#16
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2005
Location: Canada
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Yes it is.
Well, I'll get back to the thread every 15 minutes or so. So if you have any questions, I'll hold your hand through the process.
Yes, I have nothing to do tonight.
Well, I'll get back to the thread every 15 minutes or so. So if you have any questions, I'll hold your hand through the process.
Yes, I have nothing to do tonight.
08-24-07, 08:35 PM
#20
Non-op
Thread Starter
iTrader: (2)
Join Date: Jul 2005
Location: San francisco
Posts: 462
Likes: 0
Received 0 Likes
on
0 Posts
well it has a line coming down from the bottom of it but i dont know where it could connect to. and i think it is for the gas fumes cause its a vaccumn line
08-24-07, 08:38 PM
#21
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2005
Location: Canada
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Thats the canister I was talking about.
The line under it doesn't connect to anything. Whatever comes out just goes out in the atmosphere. Just make sure it doesn't dangle dangerously.
Sorry for the slow answers, a couple of friends just popped in.
The line under it doesn't connect to anything. Whatever comes out just goes out in the atmosphere. Just make sure it doesn't dangle dangerously.
Sorry for the slow answers, a couple of friends just popped in.
08-24-07, 08:39 PM
#22
Non-op
Thread Starter
iTrader: (2)
Join Date: Jul 2005
Location: San francisco
Posts: 462
Likes: 0
Received 0 Likes
on
0 Posts

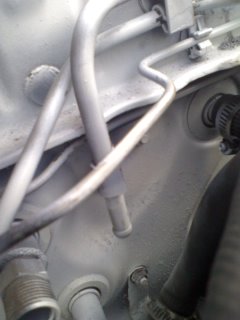

another thing is by the brake master cylinder. right behind it is that the power brake booster? and if so...it has a metal line that goes around the firewall to the passanger side and then curves downward. but its missing a hose. where does it connect too? ill get the pic up in a bit.
Last edited by xeccentric; 08-24-07 at 08:43 PM. Reason: pic
08-24-07, 08:44 PM
#23
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2005
Location: Canada
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Is it a J-spec engine? If so, it connects to the LIM on the passenger side. If its USDM engine, it connects to the UIM passenger side.
Kind of tube with a square fitting that bolts on the UIM/LIM. No need for pics. I'll take some and show you. BRB
Kind of tube with a square fitting that bolts on the UIM/LIM. No need for pics. I'll take some and show you. BRB
