Can A 88 Wiring Harness Go Into A 86

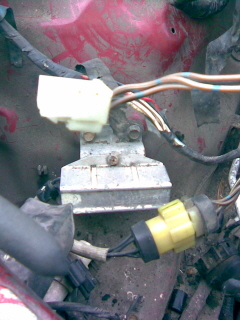

hey guys i bought a 86 gxl automatic with a bad motor i just bought a engine with harness that has 44k on it got the motor in and started to hook up the new harness and that harness dosent have some of the plugs my old one has one of them id the electronic shock which probaly dont work anyway so i dont care about that the one that is bothering me is the one that goes to a little silver box on the left side of the car towards the front does anyone know what that is and do i need it also im looking for a coolant bottle the goes on the firewall near thw winsheild wiper moter if anyone has one anyway heres a pic of the part im not sure if i need
#7
Polishing Fiend
iTrader: (139)
Well it's not a hard job per se but I don't think it will work. The impedence of the fuel injectors is different between the 86 and 88 engines. I installed a used 88 long block into my 86 chassis and used the wiring harness from the 88. I could not use the 86 harness IIRC because of the injector issue - different injector connectors plus the resistor pack problem. I'm sure there is a way to cut open the harness, swap the injector plugs, and strip out the resistor pack wires to make it work but it might be just as easy to simply rpelace it with the correct harness.
If you feel like a little light reading and a chuckle or two you might take a look at my webpages starting here: http://www.negative-camber.org/crisp...c/fcpart13.htm
or go right back to the very beginning here: http://www.negative-camber.org/crispyrx7/fc/fcpart1.htm
It's the best I can provide.
HTH,
Crispy
If you feel like a little light reading and a chuckle or two you might take a look at my webpages starting here: http://www.negative-camber.org/crisp...c/fcpart13.htm
or go right back to the very beginning here: http://www.negative-camber.org/crispyrx7/fc/fcpart1.htm
It's the best I can provide.
HTH,
Crispy
Trending Topics
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
You put a 88 engine in a 86. Used the 88 EM harness.
No problem as long as you used the 88 fuel injectors.
If you used the 86 injectors on the 88 harness, then you need to add to each injector wire, a 6ohm resistor block. But why make life difficult? Use the 88 injectors.
No problem as long as you used the 88 fuel injectors.
If you used the 86 injectors on the 88 harness, then you need to add to each injector wire, a 6ohm resistor block. But why make life difficult? Use the 88 injectors.
