a/c harness??? question

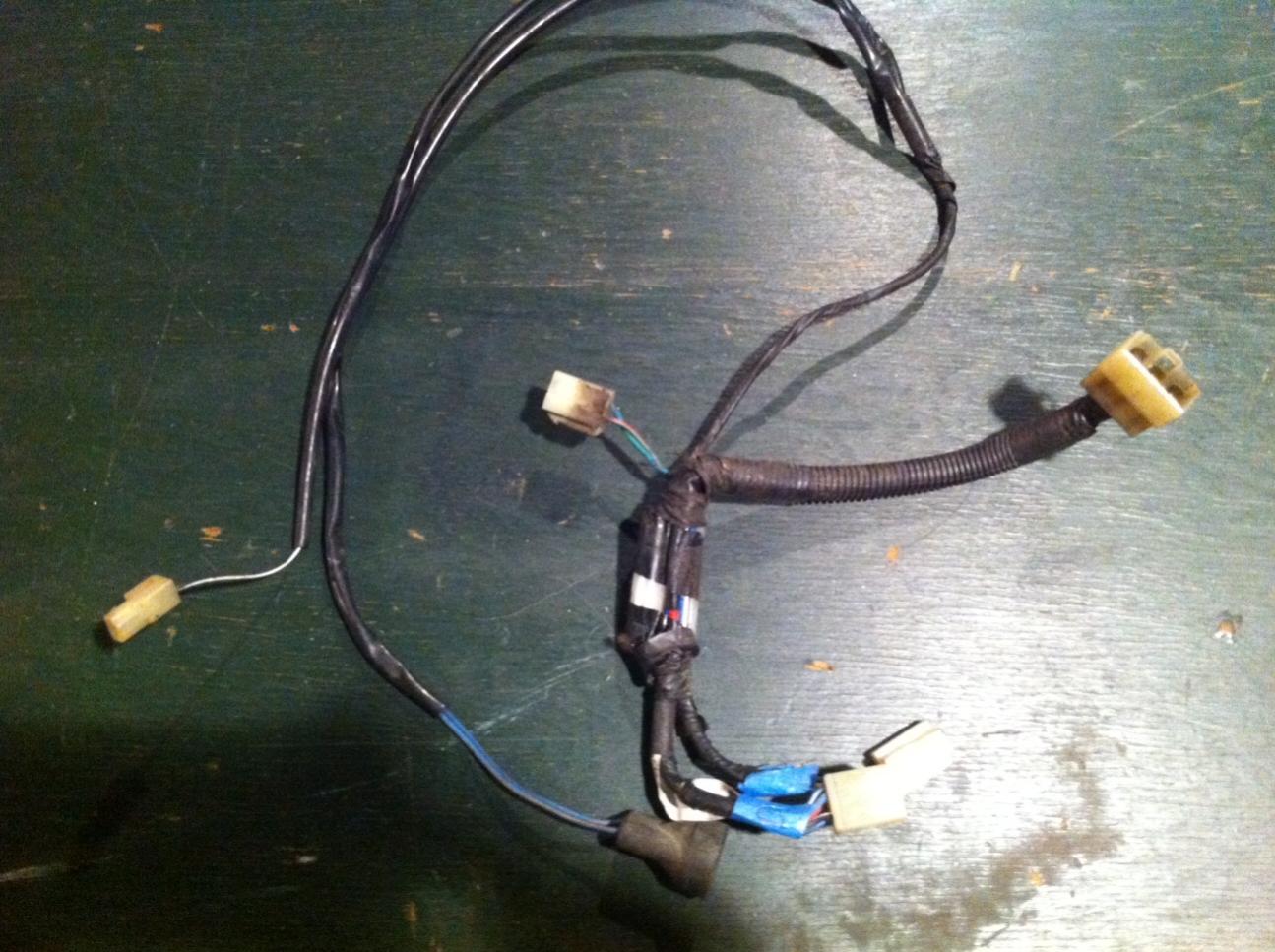

this harness is up front with the relays, i believe it went with a/c related stuff, it had 2 relays on it, and was connected to the main harness with a green/red and green T style connector... nothing else was connected besides the 2 relays. i did not know what the 2 relays were... i tried following the wiring diagram, but i dont know if these were even in the right order to start.... any help identifying this is appreciated.

car is a 87 T2
Attached Thumbnails a/c harness??? question-wiring-harness.jpg
Reply
Old Feb 20, 2013 | 08:26 PM
  #2
Rob XX 7's Avatar
FC guy
Tenured Member 20 Years
iTrader: (8)

Joined: Oct 2002
Posts: 8,713
Likes: 17
From: Long Island, New York
I believe one is for a electric fan, im pretty sure mazda put them in cars that didnt have them my vert also had those relays to nowhere
