Which bushing is this? I need one ASAP (tommorrow)

Ok heres the backstory...

lots of play in rear wheels (1991 turbo)
pressed in new bearings on the passenger side. solved.
drivers side on the other hand, its not a wheel bearing its a bushing. There is no up/down play, only side to side. i can see which bushing it is, its actually more of a plastic sleeve. here are 3 pictures, hopefully someone can tell me what it is so i can get the part for tommorrow (cars still up on a lift about 20 mins away)

thanks everyone

like i said this is the drivers side.

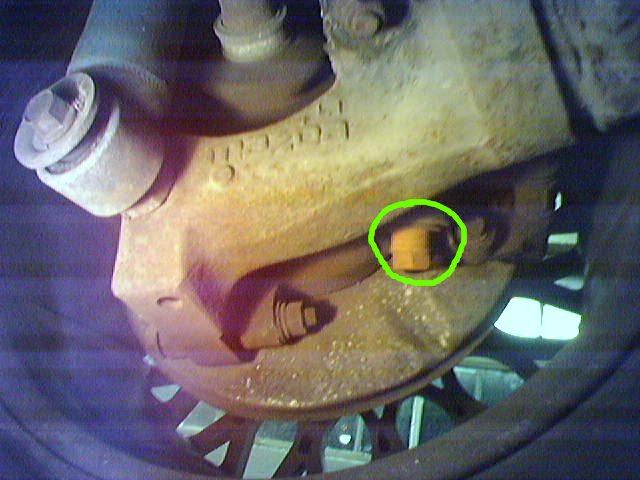

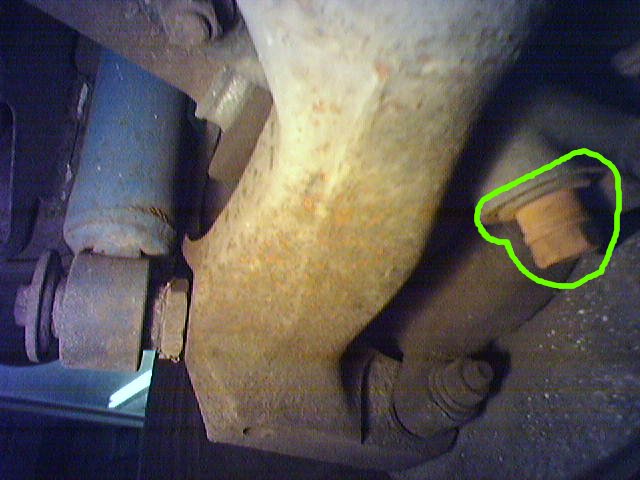

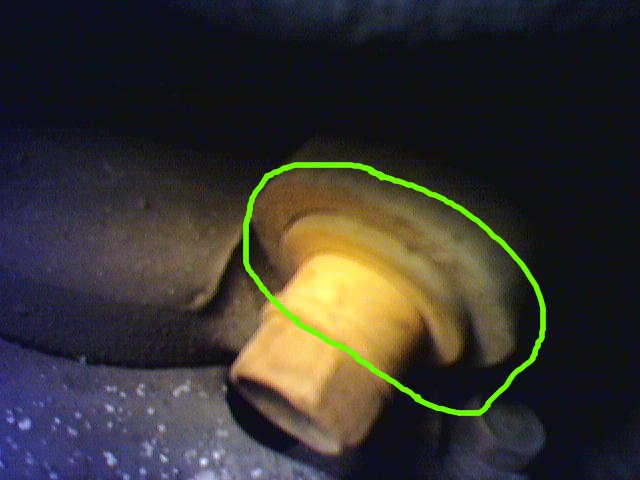

that circled bolt has a plastic sleeve around it. the passengers side is nice and tight, but this side has play, and allows the wheel to move left/right.
Attached Thumbnails Which bushing is this? I need one ASAP (tommorrow)-bushing1.jpg   Which bushing is this? I need one ASAP (tommorrow)-bushing2.jpg   Which bushing is this? I need one ASAP (tommorrow)-bushing3.jpg
Reply
Old Dec 9, 2005 | 06:47 PM
  #2
sleejay's Avatar
Thread Starter
omae mo na!
Tenured Member 05 Years

Joined: Nov 2004
Posts: 861
Likes: 0
From: NEW JERSEY
is it the trailing arm bushing? i really need to get my car out of my buddys bay :/
like tommorrow
Reply
Old Dec 9, 2005 | 07:39 PM
  #3
NoPistns's Avatar
Full Member
Tenured Member 05 Years

Joined: Jun 2003
Posts: 81
Likes: 0
From: St. Paul, MN
From what you describe, it sounds like the toe control hub. This was part of Mazda's Dynamic Toe Control Steering. When these bushings go, most folks replace them with an aftermarket piece that does away with the DTCS. The replacement sets are available from Mazdatrix. Their website also has a good set of photos to walk you through the replacement.
Reply
Old Dec 9, 2005 | 07:45 PM
  #4
rotarygod's Avatar
Rotors still spinning
Tenured Member 20 Years
iTrader: (1)

Joined: Jul 2002
Posts: 4,181
Likes: 23
From: Houston
It looks like a rear toe eliminator. If it isn't, I'd suggest getting them from Mazdatrix or Racing Beat instead of the stock ones. It looks like you might already have one on one side though. Can't quite tell.
Reply
Old Dec 9, 2005 | 07:51 PM
  #5
eyeoutthere's Avatar
Senior Member
Tenured Member: 20 Years

Joined: Nov 2002
Posts: 380
Likes: 1
From: Owego NY
As was said: That would be the “rear steer”, “rear toe”, or “DTC” bushing. During hard cornering the bushing should give, adding tow and essentially steering the rear of the car. Yours appears to be defective.

Most people replace them with solid bushings found here:
http://www.mazdatrix.com/h6_86-92.htm

You should replace both sides. The page above includes these installation directions:
http://www.mazdatrix.com/faq/rrsteer.htm
