batmanfc

Where exactly does the brake booster vacuum line hook up? I changed my brake pads and they are still pretty weak so I'm thinking that it may not be hooked up correctly. Any ideas?

SpeedOfLife

iTrader: (16)

There's a vac line that runs along the firewall for it. Not too many vac lines that big on these cars, should be hard to miss if it's there.

batmanfc

It's hooked up there but it is unhooked to the engine. I wasn't sure where it hooked up there.

HAILERS

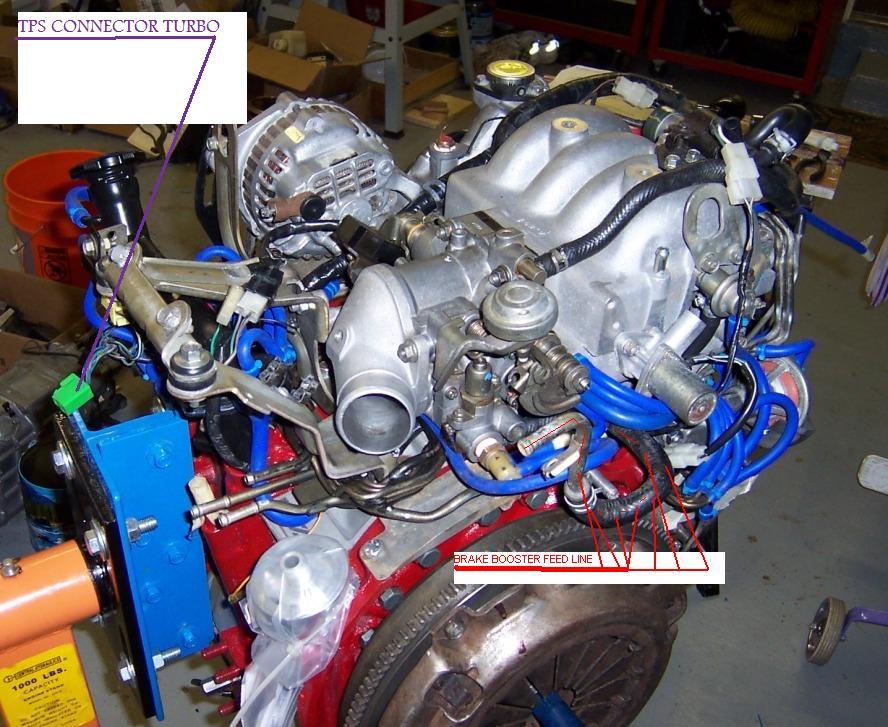

If it's a true USA series four turbo engine, it goes as shown in the attached jpg. IF series five.............it does NOT go there.

batmanfc

Its a series 5 engine. Sorry I should have put that in the original post.

batmanfc

Where would it go on the series 5?

HAILERS

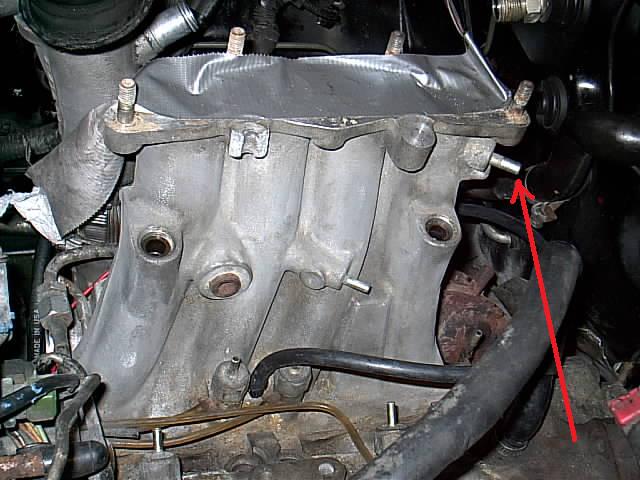

ON the rear end of the intake manifold. I don't own one and never seen one other than this site. I think SEARCH will turn up something if BRAKE BOOSTER FEED or BRAKE BOOSTER MANIFOLD words are entered. I think there are several pictures out there for series five turbo.

HAILERS

https://www.rx7club.com/showthread.p...t=BOOSTER+FEED

batmanfc

Thanks guys, that was exactly what I needed.
