BOV location
02-05-04, 08:36 PM
#1
Senior Member
Thread Starter
Join Date: Aug 2003
Location: Northern NJ
Posts: 492
Likes: 0
Received 0 Likes
on
0 Posts
BOV location
I finally ordered a BOV, and I'm planning on replacing it with the stock one. I went with a $60 bov located on eBay. It should fit perfectly, but the only problem is I don't know where the by pass valve is located on an 88 TII. I'm new to the entire rotary scene.
Old thread:
https://www.rx7club.com/showthread.p...hreadid=265713
Does anyone have a picture of where the stock by pass valve is located so I can do a swap? A picture would help greatly. Thanks.
Old thread:
https://www.rx7club.com/showthread.p...hreadid=265713
Does anyone have a picture of where the stock by pass valve is located so I can do a swap? A picture would help greatly. Thanks.
02-05-04, 08:41 PM
#2
my fc broke
Join Date: Feb 2003
Location: rohnert park,CA/ bay area
Posts: 2,231
Likes: 0
Received 0 Likes
on
0 Posts

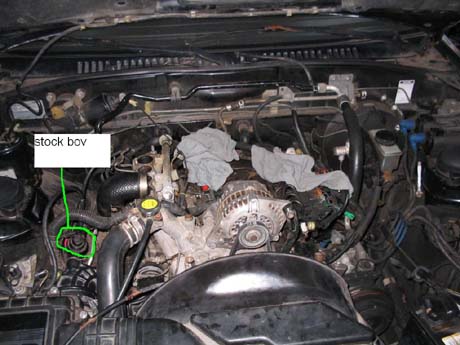

i dont know if you can see mine this picture. but its in the right hand corner.
yours should be a small aluminum thing with 2 hoses coming of it . one goes the the TID and the other goes to the BAC valve i belive
yours should be a small aluminum thing with 2 hoses coming of it . one goes the the TID and the other goes to the BAC valve i belive
02-05-04, 08:46 PM
#3
T2 Noob.
Join Date: Jun 2003
Location: San Fran-Mateo
Posts: 1,083
Likes: 0
Received 0 Likes
on
0 Posts
I wish I still had my digi cam but here's a link to ilike2eatricers site. should give you an idea where it is.
http://f2.pg.photos.yahoo.com/ph/sta...II&.dnm=12.jpg
But the best explanation I can give you is, take a look at your intercooler, on the front of it closer to the passenger side, there is a rubber hose coming off the intercooler with a 90 degree bend. The PIPE under that hose, is your BOV pipe. From that pipe, there is a small hose going to your BAC and well another hose going to your stock BOV going into your intake.
http://f2.pg.photos.yahoo.com/ph/sta...II&.dnm=12.jpg
But the best explanation I can give you is, take a look at your intercooler, on the front of it closer to the passenger side, there is a rubber hose coming off the intercooler with a 90 degree bend. The PIPE under that hose, is your BOV pipe. From that pipe, there is a small hose going to your BAC and well another hose going to your stock BOV going into your intake.
02-05-04, 08:50 PM
#5
SOLD THE RX-7!
Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 7,451
Likes: 0
Received 0 Likes
on
0 Posts
Re: BOV location
Originally posted by fg0d
I went with a $60 bov located on eBay. It should fit perfectly,
I went with a $60 bov located on eBay. It should fit perfectly,
the "rx7 kits" are like $300. the universal ones will take some custom work to get them to work.
02-05-04, 09:05 PM
#6
Senior Member
Thread Starter
Join Date: Aug 2003
Location: Northern NJ
Posts: 492
Likes: 0
Received 0 Likes
on
0 Posts
Well if you read my old thread, the nipple of the hose is the same diameter size of the bov. Also, a couple of other people did the same exact thing, so I just followed it.
