Anyone running the Turbo XS Type S?
I would like to see a pic where you mounted it. I have one but it has no instructions and not real sure wher eto mount it. It is the purple BOV at the top of this page,
http://www.turboxs.com/BOV/bovproducts.shtml

I will run this one till I can get the HKS SSQV BOV.

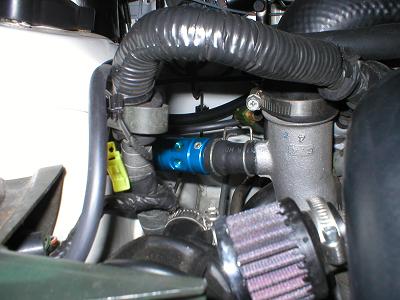

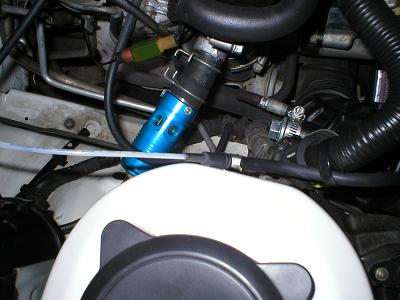

I mounted mine right off the stock 3/4" pipe using a 2 1/2" piece of 3/4"id tubing and a hose clamp. The BOV has a 1" metal tube which you must fit into the 3/4" tube. Use a hair spray to slip on, it will fit and when the spray evaporates it will be very snug. Plug the hole in your intake w/ a oil drain plug and a hose clamp, put the small vac line on your BOV, and you will be good to go.



[img]



I can't seem to figure out how to get my pics to post. Sorry



https://www.rx7club.com/attachment.php?attachmentid=121609&stc=1[/url]https://www.rx7club.com/attachment.php?attachmentid=121608&stc=1[/url]



Thnaks for the pics, does the BOV not rattle against the shock tower? I was thinking it would move a bit.
That is the same BOV i have besides mine is purple.
again thanks



It has about 1/2" clearance from strut tower.
