Block Off Plates Post Pics

I have a kit ,but I have 2 plates that I dont know what they block off

Jun 25, 2005 | 02:10 PM

Turbo II-FB

Thread Starter

Rotary Freak

Joined: Nov 2004

Posts: 1,879

Likes: 0

From: Austin-Houston Texas

oh yea a s4 t2

Jun 25, 2005 | 02:26 PM

Project84

Open up! Search Warrant!

Joined: May 2002

Posts: 3,838

Likes: 3

From: Kicking down doors in a neighborhood near you

Post pics of the two you have left over and someone can show you where they go.

Jun 25, 2005 | 02:42 PM

iceblue

Passing life by

Joined: Feb 2005

Posts: 4,028

Likes: 2

From: Scotland, USA

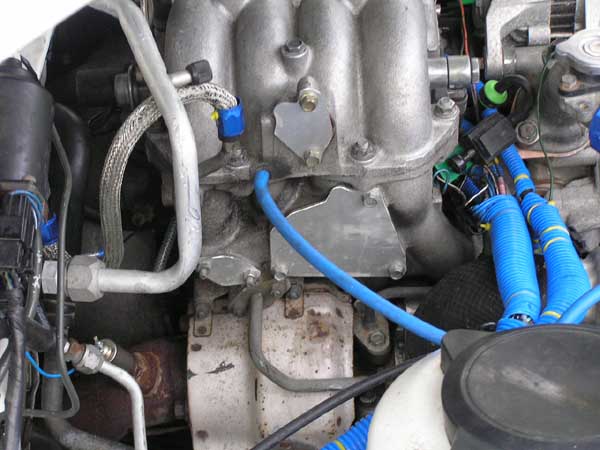

Not shown is the EGR plate under the UIM. I do not have this b/c it is a JDM engin.
The AWS in the back of the UIM is removed on this one as well. Doubt they supplyd a plate for this.

EDIT: Be very sure that you seald the ACV off well, around the top left and midle right are leak prone. As well the top left of the BACV. I used RTV on mine. Gasket was leaking still.

Last edited by iceblue; Jun 25, 2005 at 02:45 PM.

Jun 25, 2005 | 04:18 PM

ddub

i am legendary

Joined: Sep 2003

Posts: 8,478

Likes: 1

From: Kirkland, WA

Quote:

Originally Posted by Project84

Post pics of the two you have left over and someone can show you where they go.

Agreed.

The normal ones are split air, ACV, egr, BAC possibly, MOP...

It's easy to figure out if you just show a pic, or even find a pic of the ones on ebay and tell us which one yours looks like.
