Belts
11-10-10, 07:52 AM
#1
Riley Bickford
Thread Starter
Join Date: Nov 2009
Location: Florida
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Belts
hey i recently tore the belts and they ripped in half so i decided to raplcae them, i can do all the belts except the one that brings power to the air intake. i can get it on but it is very tight, and when i turn the key and it spins the belt just flips over to its side somehow. is it jsut the wrong belt? please help
11-10-10, 09:12 AM
#4
Junior Member
Join Date: Aug 2010
Location: St.Petersburg FL
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
11-10-10, 10:04 AM
#5
MECP Certified Installer
I think he means the air pump.
The tensioning bracket it on the bottom, and you need to get your hand underneath the pump and heave it upward and quickly tighten that tensioning bolt. The only hard part is getting enough leverage with one arm underneath, but doesn't need to be super tight, as the pulley doesn't require much force to turn.
The easiest way I have found is to put my left forearm underneath, and flex upward with it to get the belt tight, and then I use a ratchet with a 3 inch extension to get the tension bolt.
The tensioning bracket it on the bottom, and you need to get your hand underneath the pump and heave it upward and quickly tighten that tensioning bolt. The only hard part is getting enough leverage with one arm underneath, but doesn't need to be super tight, as the pulley doesn't require much force to turn.
The easiest way I have found is to put my left forearm underneath, and flex upward with it to get the belt tight, and then I use a ratchet with a 3 inch extension to get the tension bolt.
11-10-10, 07:56 PM
#6
1986 Mazda Rx-& Non-Turbo
Join Date: Nov 2009
Location: Somewere in Kansas?
Posts: 140
Likes: 0
Received 0 Likes
on
0 Posts
I use a rather beefy Craftsman screwdriver and two shop rags to get the tension on the air pump, work's for the alt aswell. Being small, levrage is my friend
Trending Topics
11-10-10, 10:44 PM
#8
Full Member
iTrader: (1)
Join Date: Sep 2008
Location: Georgia
Posts: 141
Likes: 0
Received 0 Likes
on
0 Posts
Hey guys. Some suggestions on these belts. I snapped all of mine recently and found the best way to install and get them tight is to use a BIG wrench. I have one of those large sized 7/8 craftsman wrenches that I use to slide in there and use it like a lever to push the pump and alt to max tension on these belts. So long as the belt has a nice "triangle" shape to it that fits nicely in the grooves in the pulleys it should not twist around. Make sure you tighten them after you install new ones because they will stretch a little.
Also found that buying belts that have the notches on the inside (that inserts into the grooves) of the belt are the best to get. They tend to be a little bit more expensive but they don't stretch as much and they last much longer because they can't properly bend around the pulleys creating less friction/heat and wear and tear.

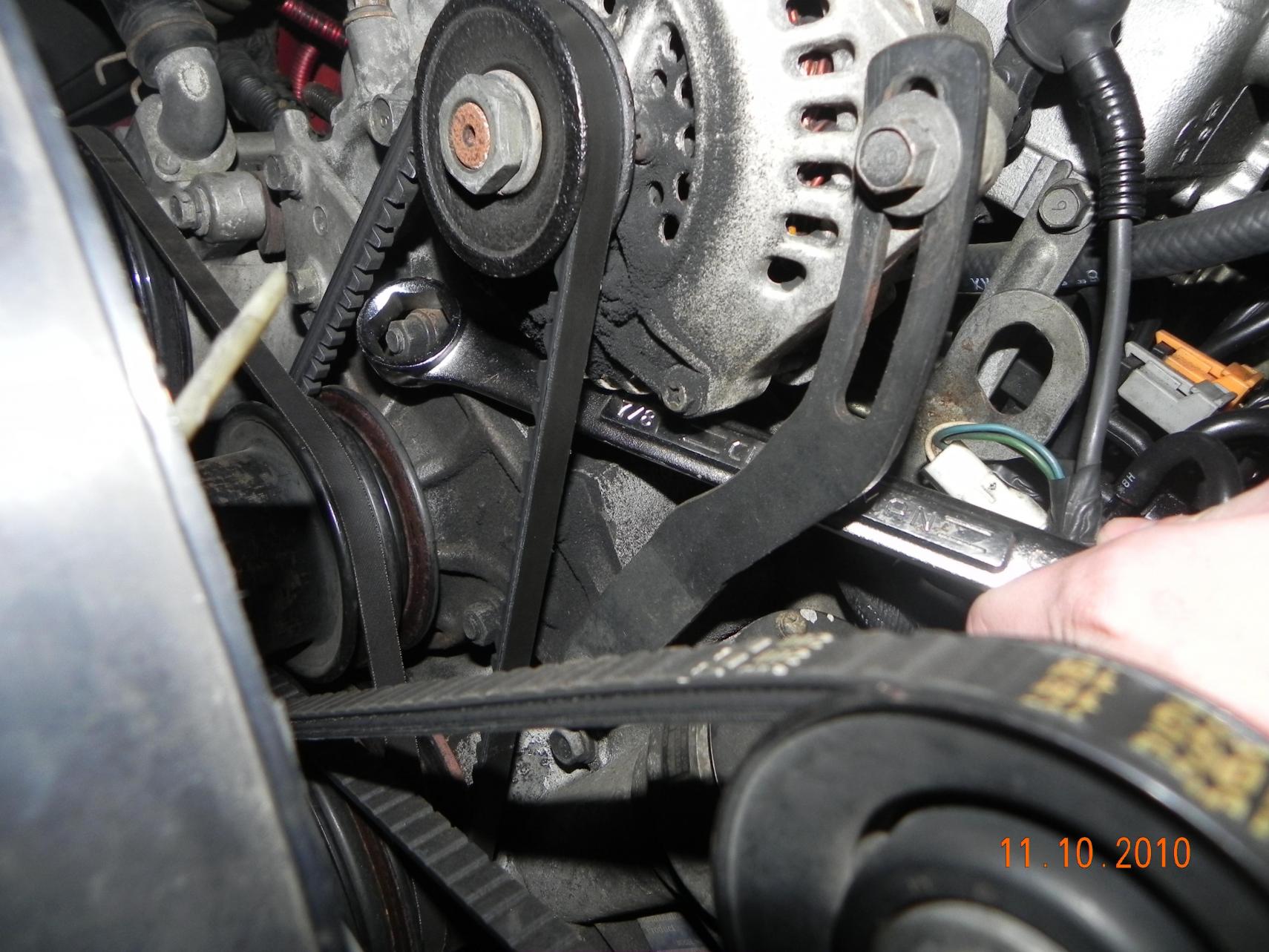

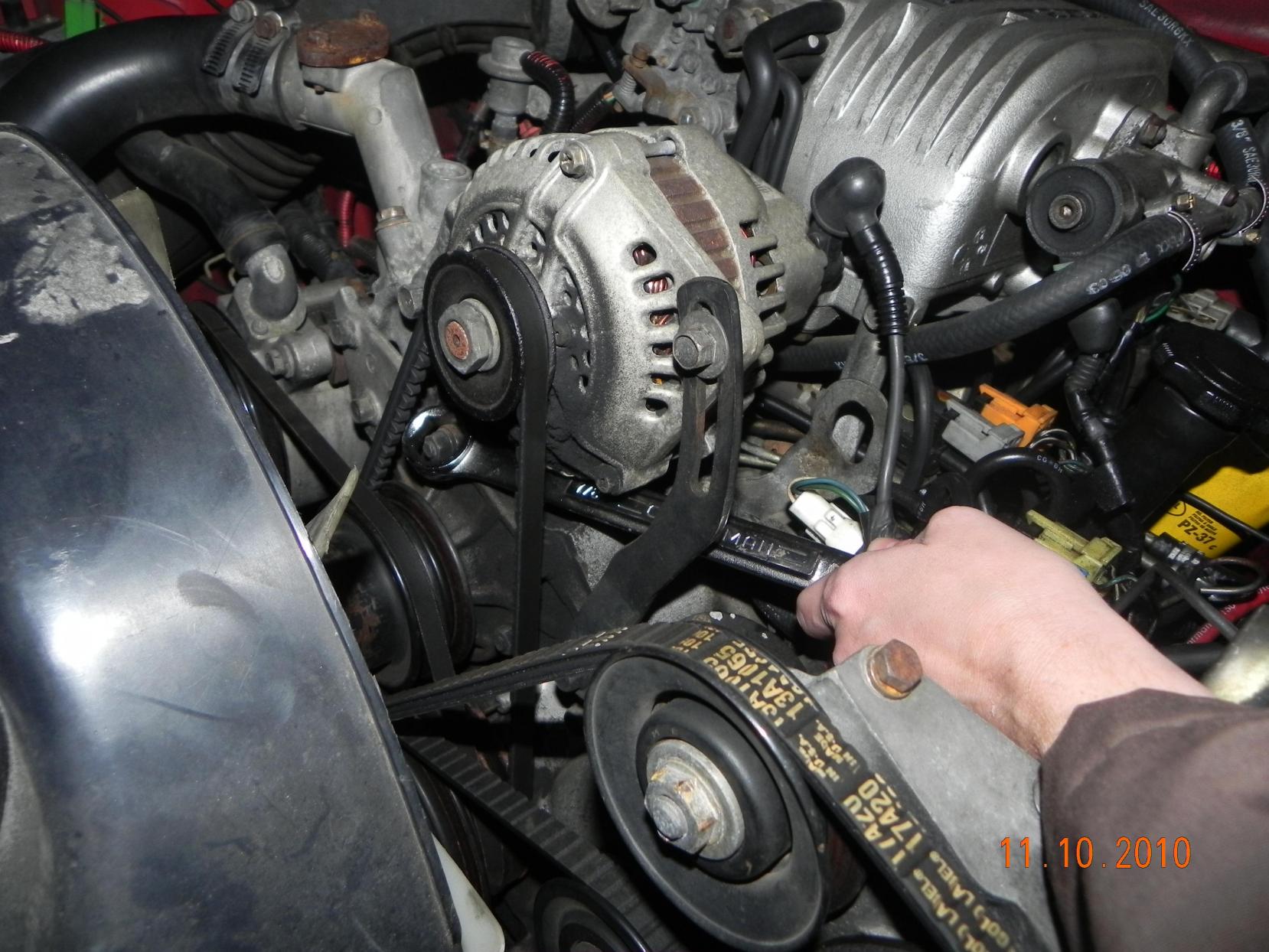

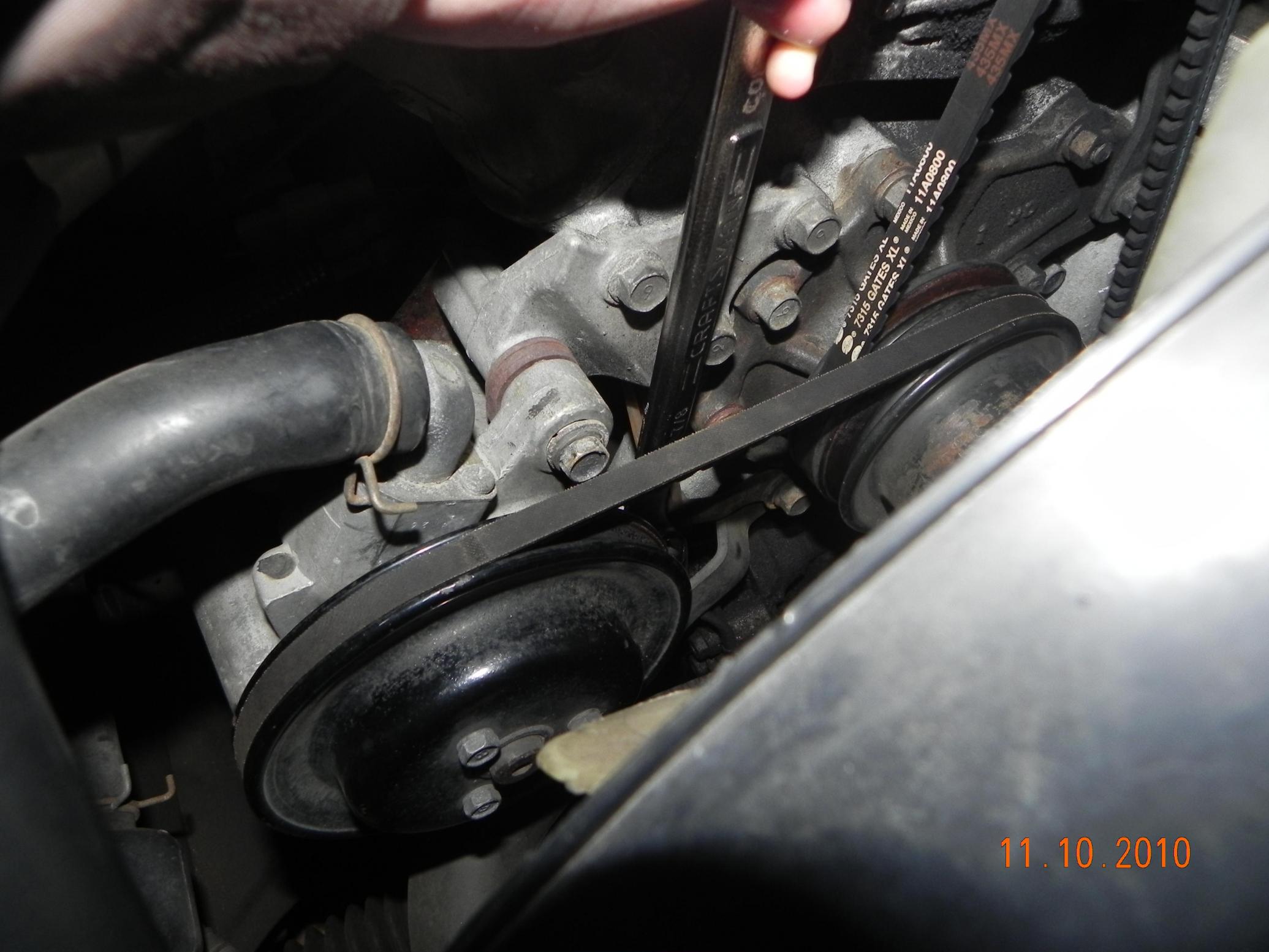

These are pictures of where I put the wrench to get the best leverage. (I'm a small person as well)
Hope this helps!
Also found that buying belts that have the notches on the inside (that inserts into the grooves) of the belt are the best to get. They tend to be a little bit more expensive but they don't stretch as much and they last much longer because they can't properly bend around the pulleys creating less friction/heat and wear and tear.
These are pictures of where I put the wrench to get the best leverage. (I'm a small person as well)
Hope this helps!
