Battery relocation - pictures
So - I had some #4 & #6 primary wire laying around, and:
The hurricane blew by - Sunday is free - Time to move the battery (in between rain showers)
Primary (+) behind the brake booster:
Drip loop at the firewall:
Past the heater:
To the battery:
The last of the #4 along the sill:
Remove the rug & cut the bin frame for storage room & strap clearance:
Terminations for jumper cables:
Marine style wing nut on the ground for easy disconnect:

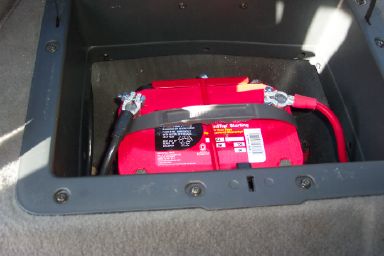

All done:
The hurricane blew by - Sunday is free - Time to move the battery (in between rain showers)
Primary (+) behind the brake booster:
Drip loop at the firewall:
Past the heater:
To the battery:
The last of the #4 along the sill:
Remove the rug & cut the bin frame for storage room & strap clearance:
Terminations for jumper cables:
Marine style wing nut on the ground for easy disconnect:
All done:
Last edited by SureShot; 08-16-04 at 07:28 AM.
08-16-04, 07:37 AM
#2
Looks nice! I have nothing to do today..and a battery relocation kit laying around.... I'll post pics later as well
Mind going into more detail about ehat exactly you did for the terminations at the fender? Also, do you not have any fuses/circuit breakers in line at the battery?
Mind going into more detail about ehat exactly you did for the terminations at the fender? Also, do you not have any fuses/circuit breakers in line at the battery?
Last edited by Rxmfn7; 08-16-04 at 07:49 AM.
08-16-04, 07:48 AM
#4
Seduced by the DARK SIDE
Thread Starter
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
The origonal ground (black/yellow) strapped to the terminal block of a cheap ground kit I had previously installed.
The jumper ground was just a bolt in the terminal block.
The (+) jumper used the origonal primary wires (black - from the starter & fuse block) into a #4 barrier strip terminal.
The jumper bolt is covered by a piece of fuel hose.
The jumper ground was just a bolt in the terminal block.
The (+) jumper used the origonal primary wires (black - from the starter & fuse block) into a #4 barrier strip terminal.
The jumper bolt is covered by a piece of fuel hose.
Last edited by SureShot; 08-16-04 at 07:51 AM.
08-16-04, 04:06 PM
#5
08-16-04, 05:10 PM
#6
If you look closely, you can see a metal strap running parallel across the center of the battery. Im assuming that is what he is using as a tie-down. I asked the same question about a fuse inmy above post.. maybe we just cant see where he located it.
08-16-04, 07:45 PM
#7
Zero Rotor Motorsports
iTrader: (1)
Join Date: Feb 2004
Location: Glen Burnie, MD
Posts: 2,525
Likes: 0
Received 0 Likes
on
0 Posts
This is the only picture I have of mine. I made an angled bracket to place under the battery so it would have a flat surface (I don't trust the curved floor to support the flat battery). Used a generic battery hold-down kit from PepBoys. Works pretty well, no problems, and leaves more room up front. And I do have the cover for the storage bin I just took the pic before I installed it.
Trending Topics
08-16-04, 07:46 PM
#8
All out Freak!
Join Date: Aug 2004
Location: in a little box on a stick
Posts: 2,300
Likes: 0
Received 12 Likes
on
9 Posts
nice work there. Looks good. I do not know if the benefit is worth it, but nonetheless it looks good. With our weight distribution like it already is, there is not much of a need for this IMO though. But it is always nice to see FC owners getting creative wiht their 7's....
Wonderful
08-16-04, 07:57 PM
#10
Zero Rotor Motorsports
iTrader: (1)
Join Date: Feb 2004
Location: Glen Burnie, MD
Posts: 2,525
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rx7roller02
nice work there. Looks good. I do not know if the benefit is worth it, but nonetheless it looks good. With our weight distribution like it already is, there is not much of a need for this IMO though. But it is always nice to see FC owners getting creative wiht their 7's....
11-23-04, 08:16 PM
#11
You've Been Punk'd
Join Date: Jun 2002
Location: Branson, Missouri
Posts: 4,727
Likes: 0
Received 0 Likes
on
0 Posts
ok any disadvantages of putting the battery in the back part of the trunk?
and how much battery cable do you need? and which size 2 gauge or 4 gauge?
and how much battery cable do you need? and which size 2 gauge or 4 gauge?
. Saved pics as a reference.
02-01-05, 01:37 AM
#14
Haven't we ALL heard this
The only disadvantage to it I can think of is in some racing classes (not sure if drag/autox/road racing) a battery in the cockpit means you need an external master switch ( Outside of the car so a course worker could disable your electrics in case you are on fire.)
Which could be a little weird for a street car.
James
Which could be a little weird for a street car.
James
02-01-05, 09:38 AM
#16
I need rotary turbo
Join Date: Sep 2003
Location: Richmond Hill
Posts: 109
Likes: 0
Received 0 Likes
on
0 Posts
dont batteries also build hydrogen around them in use? any small fire (lighter) or heat will make it explode. not sure if i wanna have a bomb behind my seats. or is there some countermeasure already taken that i dont know of?
02-01-05, 09:43 AM
#17
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Hydrogen is such a small molecule that it leaks out of any confined space very easily. So it's not that much of a concern unless you just finished SERIOUSLY overcharging the battery, immediately open up the case, and decide to light your cigar 2" from the top of the battery.
However, it goes without saying that flooded batteries should NEVER, EVER be used within a passenger compartment. The only type that should be used are sealed batteries, preferably AGM or gell cells. To use a flooded battery in the passenger compartment, where it could rupture in an accident and throw acid/lead into your eyes is just, well, stupid.
Edit...And even if you are running a sealed battery, the battery box should be vented to the outside of the car. Many racing classes require this safety feature.
However, it goes without saying that flooded batteries should NEVER, EVER be used within a passenger compartment. The only type that should be used are sealed batteries, preferably AGM or gell cells. To use a flooded battery in the passenger compartment, where it could rupture in an accident and throw acid/lead into your eyes is just, well, stupid.
Edit...And even if you are running a sealed battery, the battery box should be vented to the outside of the car. Many racing classes require this safety feature.
02-01-05, 10:51 AM
#18
Seduced by the DARK SIDE
Thread Starter
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
What doesn’t show very well in the pictures is the marine battery box bottom.
It doesn’t seal as well as it should because of the cut-outs for the tie down strap.
The cover is on top of the tie down just to make it easier to get to the ground disconnect.
Since I didn’t have enough #4ga wire for the whole run I had to finish it with #6ga.
The voltage drop while cranking was a bit much for the radio & clock, so I ran a parallel #8ga from the battery directly to the primary fuse block.
Sometimes you gotta use what you have.
A longer piece of #4 or #2 would have done it.
The primary fuse link is on the battery to body ground strap.
It doesn’t seal as well as it should because of the cut-outs for the tie down strap.
The cover is on top of the tie down just to make it easier to get to the ground disconnect.
Since I didn’t have enough #4ga wire for the whole run I had to finish it with #6ga.
The voltage drop while cranking was a bit much for the radio & clock, so I ran a parallel #8ga from the battery directly to the primary fuse block.
Sometimes you gotta use what you have.
A longer piece of #4 or #2 would have done it.
The primary fuse link is on the battery to body ground strap.
05-26-06, 05:48 AM
#24
D1 Drifter Status
Join Date: Dec 2004
Location: Sacramento CA
Posts: 484
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by XuperXero
dont batteries also build hydrogen around them in use? any small fire (lighter) or heat will make it explode. not sure if i wanna have a bomb behind my seats. or is there some countermeasure already taken that i dont know of?
I dont think this will be an issue... whens the last time you heard of somebodies relocated battery blowing up because they lit a ciggerette inside there car?
And as for heat... i bet it gets hotter under the hood then it does in that bin.
I plan on relocated mine soon. but i think i will be buying one of the slim optima batteries and locateding it where the stock jack sits. Prolly will have to build a custom box for it though.
05-26-06, 06:51 AM
#25
Seduced by the DARK SIDE
Thread Starter
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
A fuseable link on the ground is all you need for electrical safety unless you're going to the track.
Performance & handling secret - polar moment of inertia.
Performance & handling secret - polar moment of inertia.
