Atmospheric sensor
01-09-08, 01:30 AM
#1
Rotary Enthusiast
Thread Starter
iTrader: (9)
Join Date: Jun 2003
Location: west
Posts: 1,191
Likes: 0
Received 0 Likes
on
0 Posts
Atmospheric sensor
If someone has a spare engine harness out, I'd like to ask a favor.
On the atmospheric pressure sensor under the dash(87/88 TII), there's 4 wires Black/white, black, green/ yellow and brown /white.
Can you see where the brown/white wire ends up at?

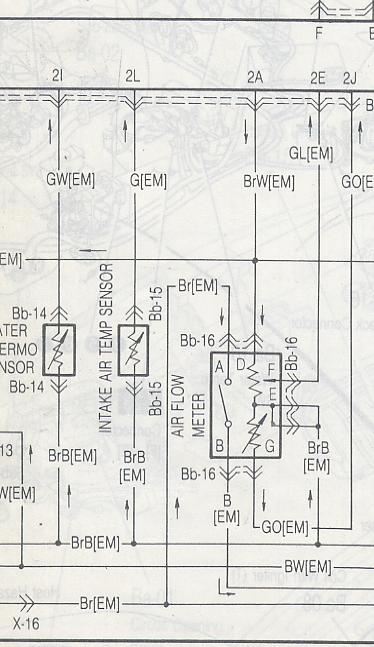

Someone did a bad hack job on the harness and the schematic doesn't show where or I'm reading it wrong.
Thanks to whoever can find it.
On the atmospheric pressure sensor under the dash(87/88 TII), there's 4 wires Black/white, black, green/ yellow and brown /white.
Can you see where the brown/white wire ends up at?
Someone did a bad hack job on the harness and the schematic doesn't show where or I'm reading it wrong.
Thanks to whoever can find it.
01-09-08, 02:59 AM
#2
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The BrW wire comes from pin 2A on the ECU.

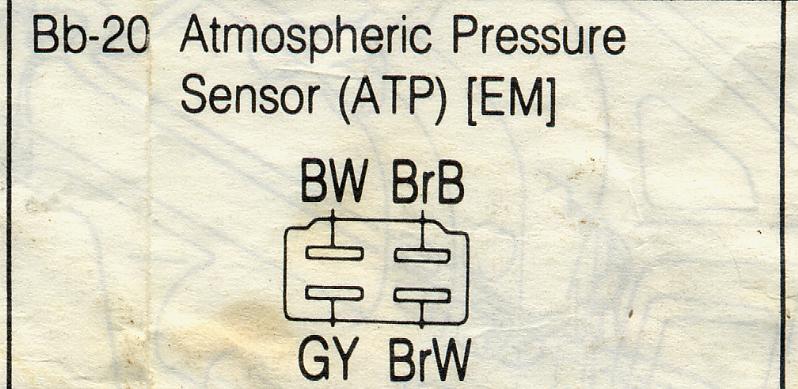

It gets pinned in the ATP plug as shown in the attached jpg. Jpg shows wires from the WIRE side of the plug.
It gets pinned in the ATP plug as shown in the attached jpg. Jpg shows wires from the WIRE side of the plug.
