Another way to find Vaccum Leaks???
11-29-07, 08:17 PM
#1
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Canton, GA
Posts: 301
Likes: 0
Received 0 Likes
on
0 Posts
Another way to find Vaccum Leaks???
Anyone know how else to find a vaccum leak? I tried having having the car idle and spraying Carb+Choke cleaner on it and nothing. I know I have a vaccum leak for sure. Use to idle at -20vac and now at -10vac, and besides that, the BOV doesnt work. I know the BOV has vaccum to it and I just bought a new BOV and still doesnt work. My guess is a vaccum leak. Anyone know an EASY way to nail a vaccum leak. I can even hear it, just cant find the stupid thing.
11-29-07, 08:20 PM
#2
Automatic = Power drain
Join Date: Nov 2006
Location: Pennsylvania
Posts: 399
Likes: 0
Received 0 Likes
on
0 Posts
Sometimes you can pressurize the intake and spray soapy water around.
I don't think this is necessary if you can hear the vacuum leak, I would just move around the car until it is the loudest and then simply move each vacuum line in turn to see if the sound changes, when it does, you found the leaking hose.
I don't think this is necessary if you can hear the vacuum leak, I would just move around the car until it is the loudest and then simply move each vacuum line in turn to see if the sound changes, when it does, you found the leaking hose.
11-29-07, 10:07 PM
#3
try this.
take an unlit propane torch, crack the valve open and use it to probe around the engine where you think the leak is, you'll hear the engine pick up rpm when your on top of it. it's pretty precise and doen't get your engine covered in flammable liquids or water. It helped me.
Trending Topics
11-30-07, 07:52 AM
#8
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Canton, GA
Posts: 301
Likes: 0
Received 0 Likes
on
0 Posts
Yes they are both t-ed together. Is that a problem? And both run to a vac nipple of the UIM. Is that not good? I know I have vaccum though to the BOV. I can pull the hose off the bov and it would stick to my finger.
11-30-07, 09:56 PM
#12
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
If you have a compressor, read this:
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/water-sensors-water-pump-diff-models-583211/ (Scroll down to posts #11 and #16)
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/water-sensors-water-pump-diff-models-583211/ (Scroll down to posts #11 and #16)
11-30-07, 09:57 PM
#13
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Canton, GA
Posts: 301
Likes: 0
Received 0 Likes
on
0 Posts
Well today I noticed something that might be the problem. Before I installed my FMIC there is the stock hose that runs to a nipple right next to the stock bov/setup, that short and pretty big hose. Anyway, when I putting the fmic, that hose had like an inline 'fuel filter-type' look alike. But this one is solid grey and has an arrow pointing in one direction. Is this neccesary to keep in that line? I just eliminated it and but a hose from the UIM/ vaccum source (stock) to a nipple I tapped into the intercooler piping connected to the turbo. Is it neccesary to have?
11-30-07, 10:11 PM
#14
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Canton, GA
Posts: 301
Likes: 0
Received 0 Likes
on
0 Posts

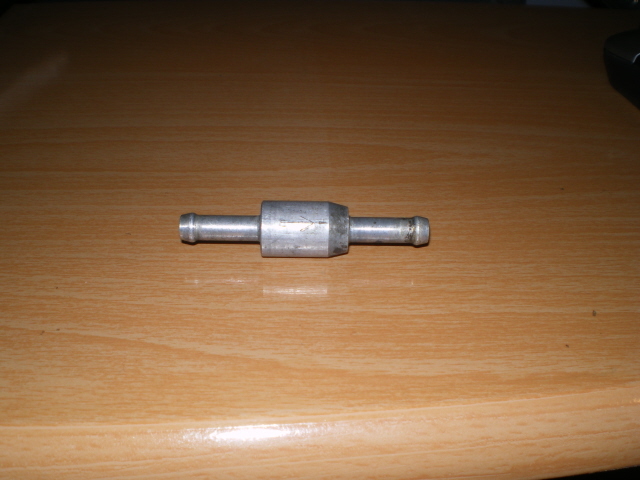

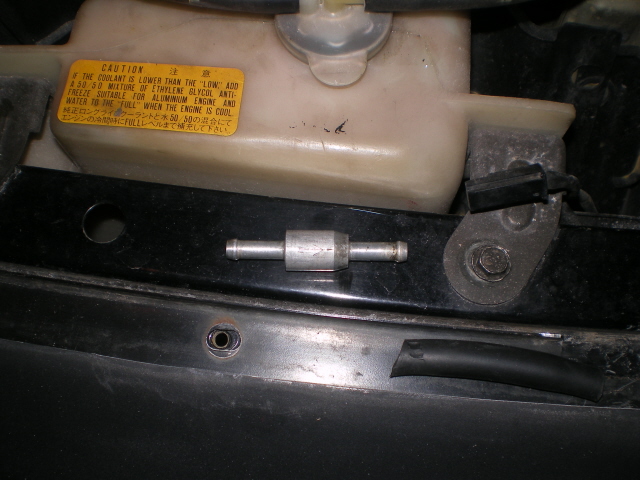

1st 2 pics are of that piece that I found inline with the hose that connected stock behind the stock bov setup.

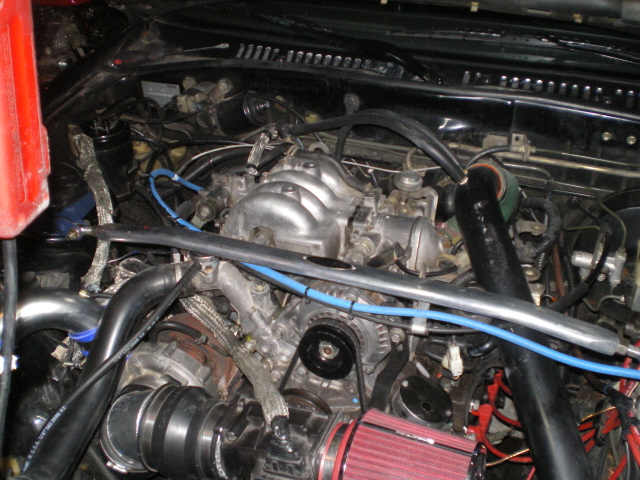

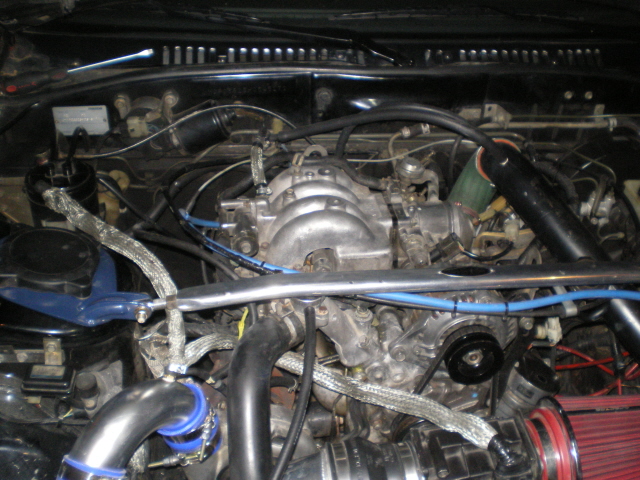

2nd 2 pics, wandering if anyone sees anything wrong?
2nd 2 pics, wandering if anyone sees anything wrong?
11-30-07, 10:47 PM
#15
Senior Member
you are referring to a one-way check valve....
a vac leak will usually bring vac up and raise idle.....
there is no way to miss a vac leak with the car running and using ether......
a vac leak will usually bring vac up and raise idle.....
there is no way to miss a vac leak with the car running and using ether......
11-30-07, 10:58 PM
#16
Haven't we ALL heard this
If you have a compressor, read this:
https://www.rx7club.com/showthread.php?t=583211 (Scroll down to posts #11 and #16)
https://www.rx7club.com/showthread.php?t=583211 (Scroll down to posts #11 and #16)
12-01-07, 12:25 PM
#17
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Canton, GA
Posts: 301
Likes: 0
Received 0 Likes
on
0 Posts
So do I need that one-way check valve in? Does that have anything to do with the bov not working?
12-01-07, 07:29 PM
#19
http://www.boostpro.net/prodtester.html
If you do not want to fabricate your own, this website sells pressure testers. You just need to buy a coupler. They also have one with a tire valve connector on it. So you will not have to buy an expensive impact-tool grade compressor to make this work.
If you do not want to fabricate your own, this website sells pressure testers. You just need to buy a coupler. They also have one with a tire valve connector on it. So you will not have to buy an expensive impact-tool grade compressor to make this work.
12-01-07, 07:45 PM
#21
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Canton, GA
Posts: 301
Likes: 0
Received 0 Likes
on
0 Posts
http://www.boostpro.net/prodtester.html
If you do not want to fabricate your own, this website sells pressure testers. You just need to buy a coupler. They also have one with a tire valve connector on it. So you will not have to buy an expensive impact-tool grade compressor to make this work.
If you do not want to fabricate your own, this website sells pressure testers. You just need to buy a coupler. They also have one with a tire valve connector on it. So you will not have to buy an expensive impact-tool grade compressor to make this work.
12-01-07, 07:55 PM
#23
It pressures your entire engine. Think about it, the air goes through the intercooler pipes into the intake manifold, which is connected to all your vacuum hoses etc. Read that link that NZconvertible posted up.
I have it, although I haven't used it yet because I need a reducer to make it work with my turbo. I've helped my friend use a similar one on his VR-4, and you would be amazed how many little bullshit leaks can develop.
I have it, although I haven't used it yet because I need a reducer to make it work with my turbo. I've helped my friend use a similar one on his VR-4, and you would be amazed how many little bullshit leaks can develop.
12-01-07, 08:05 PM
#24
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Canton, GA
Posts: 301
Likes: 0
Received 0 Likes
on
0 Posts
It pressures your entire engine. Think about it, the air goes through the intercooler pipes into the intake manifold, which is connected to all your vacuum hoses etc. Read that link that NZconvertible posted up.
I have it, although I haven't used it yet because I need a reducer to make it work with my turbo. I've helped my friend use a similar one on his VR-4, and you would be amazed how many little bullshit leaks can develop.
I have it, although I haven't used it yet because I need a reducer to make it work with my turbo. I've helped my friend use a similar one on his VR-4, and you would be amazed how many little bullshit leaks can develop.
