Alternator relocation project
I've spent a good portion of the week working on this. This is currently going into my track car, but I also need one for my S5 in order to have a strut brace the way I want.
Some projects just make you want to punch yourself in the taint. For me this has been one of them. A lot of measuring, cutting, recutting swearing, redesigning and a cut thumb have gone into getting it to this point. I still have to update the CAD files for the plate and sort out a tensioning bracket but all in all I'm happy with the results.
Some projects just make you want to punch yourself in the taint. For me this has been one of them. A lot of measuring, cutting, recutting swearing, redesigning and a cut thumb have gone into getting it to this point. I still have to update the CAD files for the plate and sort out a tensioning bracket but all in all I'm happy with the results.
#3
Junior Member
Join Date: Jul 2010
Location: Chicago burbs
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Wow. That piece looks fairly well engineered, but I can't help but think that strut brace is going to be GIGANTIC (uber strong, but possibly heavier than necessary?). Either way, props for finding a solution to a problem.
#4
Senior Member
Thread Starter
iTrader: (1)
Join Date: Dec 2008
Location: Vancouver, BC
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
LOL yeah I know. It's my track car and will never see the road. I picked it up running but expect the motor to get replaced before next year. Just focusing on chassis work right now.
Thanks. I haven't designed it yet, but I want it to sit centered between the strut towers. This will ensure maximum bracing and I'm a huge fan of chassis rigidity. I also needed the alt out of the way for when I get off my *** and start working on my supercharger project.
Thanks. I haven't designed it yet, but I want it to sit centered between the strut towers. This will ensure maximum bracing and I'm a huge fan of chassis rigidity. I also needed the alt out of the way for when I get off my *** and start working on my supercharger project.
#6
Junior Member
Join Date: Jul 2010
Location: Chicago burbs
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts

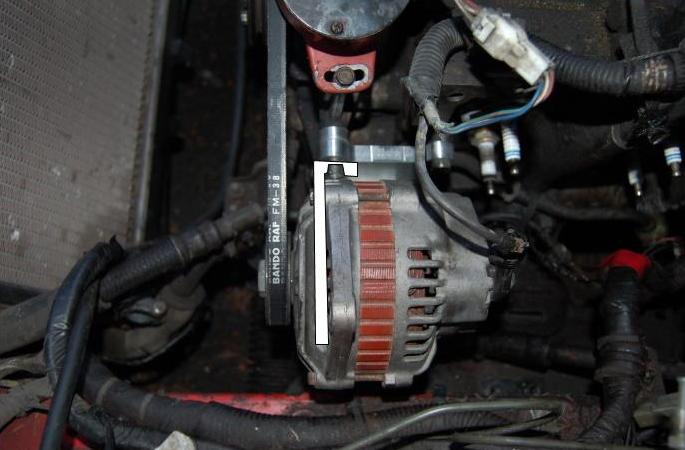

It looks like you may be able to use some sheetmetal either bent or welded into the shape of an L. The short leg of the L could tie into the two long studs closest to the belt. The long leg would need to profiled with a banana slot (just like the stock piece) and clearance for the alternator. Here are some badly drawn pics.
