Altenator connectors- i searched found my answer 50/50 need help to finish
03-17-07, 09:38 PM
#1
Altenator connectors- i searched found my answer 50/50 need help to finish
As i was installing my harness bach in i stumbled across my connector clip for my altenator , the wires were broken. STUPID me i removed the clip so i can put new spade connectors and forgot to remember which wire went to which inside the clip.
I found a really good and helpful S5 wiring diagram in the search menu really helpful to an extent i ran into another problem.
i now know my two color wires WL/WB
But i dont know which one goes into what socket on the clip . i dont want to just put these two wires any way because what if they are crossed on the altenator .
I know i probably lost you guys but i am lost myself
I found a really good and helpful S5 wiring diagram in the search menu really helpful to an extent i ran into another problem.
i now know my two color wires WL/WB
But i dont know which one goes into what socket on the clip . i dont want to just put these two wires any way because what if they are crossed on the altenator .
I know i probably lost you guys but i am lost myself
03-18-07, 11:06 AM
#2
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
See the plug with the reference designator A-05.
See the keyway at the top of the plug.
See the W/L to the left and the W/B to the right.
This view of the plug is looking at the end of the plug where the wires enter the plug.
Don't get the wires wrong or KABLOOOOEY, the alternator will go south, all the way to Mexico. And we all know what a mess that place is.
See the keyway at the top of the plug.
See the W/L to the left and the W/B to the right.
This view of the plug is looking at the end of the plug where the wires enter the plug.
Don't get the wires wrong or KABLOOOOEY, the alternator will go south, all the way to Mexico. And we all know what a mess that place is.
03-18-07, 11:12 AM
#3
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
m

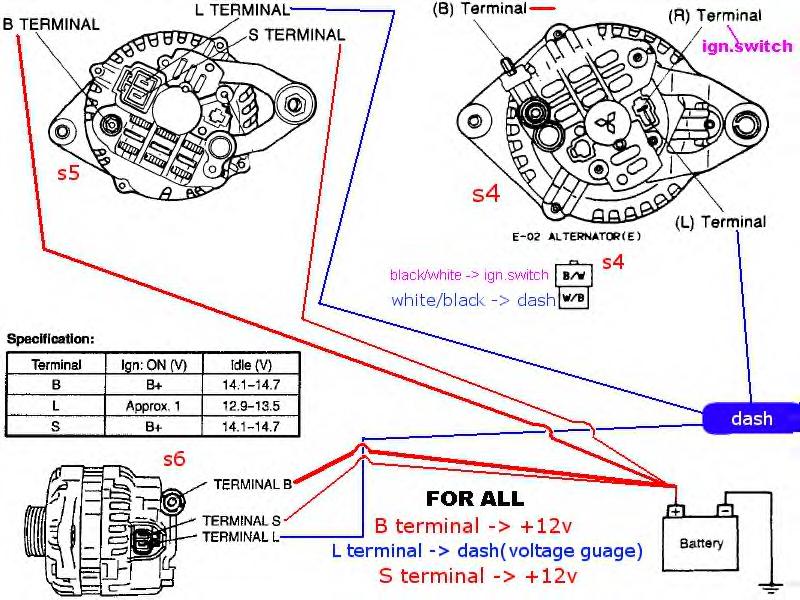

OR look at this picure. The WL should be the *S* wire and goes to the left as you look into the jack on the alternator.
The *S* wire is shown in red in the picture above.
OR look at this picure. The WL should be the *S* wire and goes to the left as you look into the jack on the alternator.
The *S* wire is shown in red in the picture above.
Last edited by HAILERS; 03-18-07 at 11:18 AM.
03-19-07, 01:57 PM
#4
holy crap my altenator looks like a s6 model one but i have a s4 harness....i am confused as hell now
but by looking at that little diagram of the clip the black wire with the white line goes on top and the white wire with black line goes on the bottom...thanks a lot HAILERS
but by looking at that little diagram of the clip the black wire with the white line goes on top and the white wire with black line goes on the bottom...thanks a lot HAILERS
