Air Hose to Bonez Cat

The rubber air hose connecting to my Bonez Cat is completely split and needs replacement. The original hose lasted a long time, but the replacement hose I used didn't last very long. When I replaced it I used whatever fit which I think was a water hose. I guess it can't handle the heat generated. Autozone hose I don't trust either. What type hose do have you guys used??

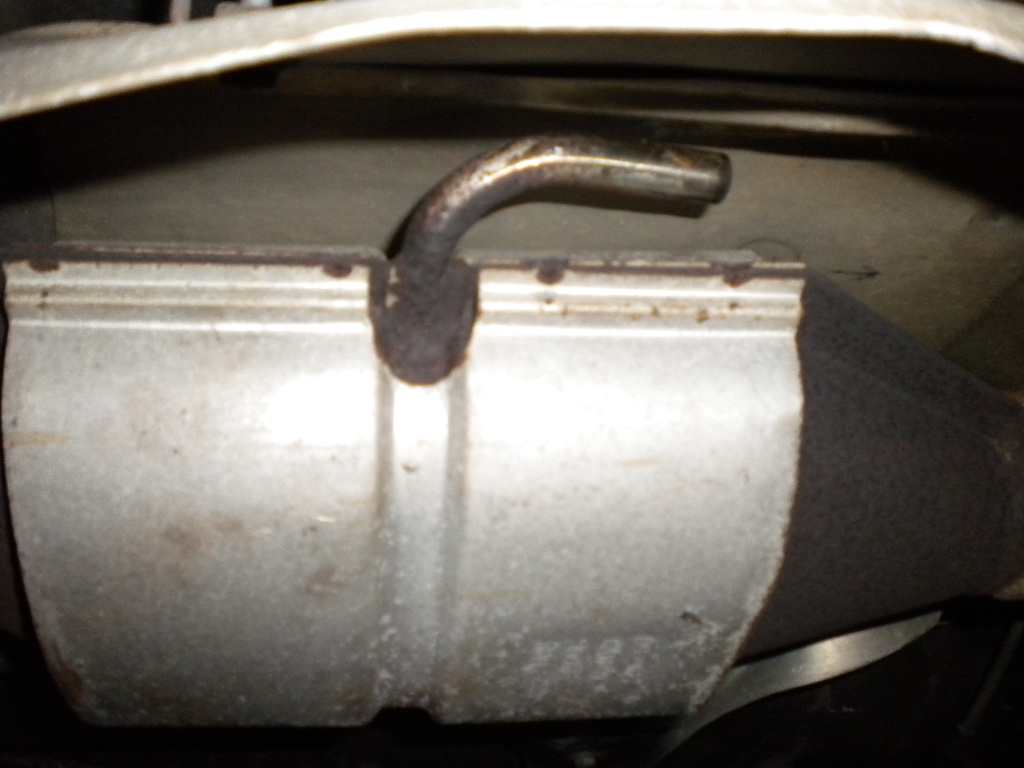

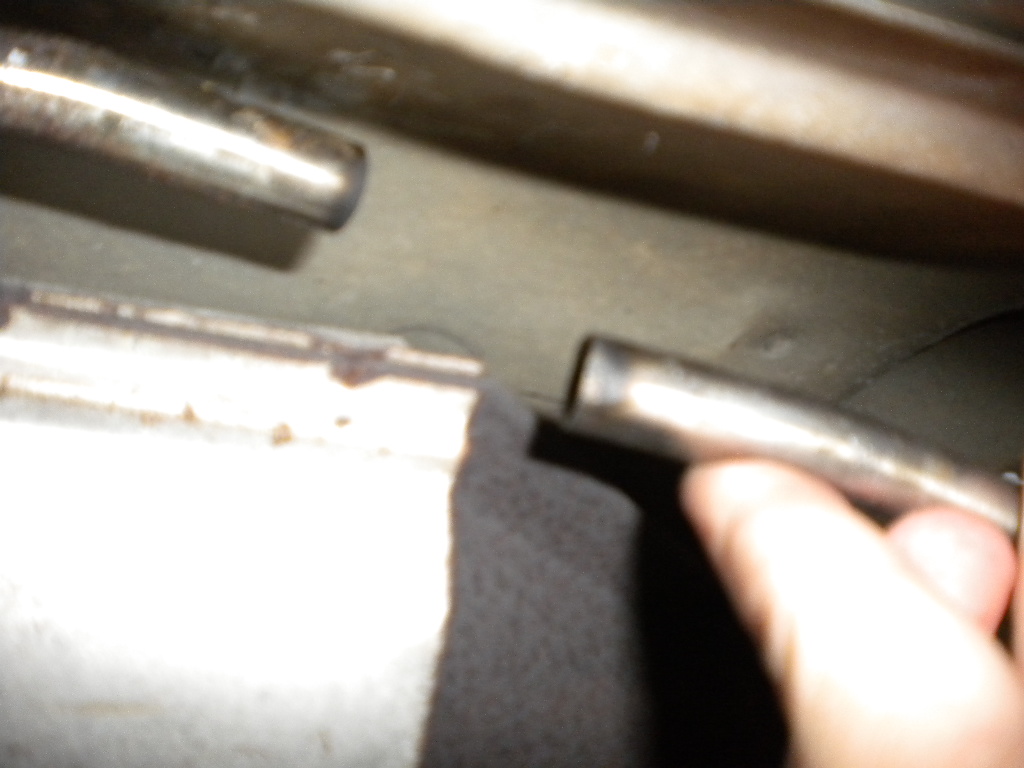

Here's pictures of where I'm talking about. Thanks.....
Attached Thumbnails Air Hose to Bonez Cat-dscn1845.jpg   Air Hose to Bonez Cat-dscn1846.jpg
Reply
Old May 6, 2012 | 06:03 PM
  #2
RotaryEvolution's Avatar
Sharp Claws
Tenured Member 15 Years
iTrader: (30)

Joined: Oct 2003
Posts: 5,107
Likes: 50
From: Central Florida
try to find some small diameter flex steel line.

anything rubber will eventually get cooked.
Reply
Old May 6, 2012 | 06:30 PM
  #3
jackhild59's Avatar
Rotary $ > AMG $
Tenured Member: 20 Years
iTrader: (7)

Joined: Apr 2005
Posts: 3,785
Likes: 30
From: And the horse he rode in on...
I hooked mine up with heat resistant silicon hose.

7 years ago.
Reply
Old May 12, 2012 | 10:16 AM
  #4
jdonnell's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 15 Years
iTrader: (1)

Joined: Nov 2001
Posts: 940
Likes: 3
From: Cape Canaveral FL
I finally started my car after the rebuild and it started, thank goodness, but I have a temporary rubber hose connecting the Bonez cat to the air pipe. I like the idea of silicone hose, but I see ratings are only to 350F. Is that good enough? I would think around the cat it would be near or more than a thousand degrees.
Reply
Old May 12, 2012 | 10:50 AM
  #5
misterstyx69's Avatar
Retired Moderator, RIP
Tenured Member: 20 Years
iTrader: (142)

Joined: Sep 2005
Posts: 25,581
Likes: 136
From: Smiths Falls.(near Ottawa!.Mapquest IT!)
Find a flange off your old cat and an extender pipe.Weld the flange to the cat.That will dissipate heat through the pipe.
Reply
