air this, air that... can someone give me answers?

ok i have one butchered 87 T2, the only thing i can see that is left on the intake manifold is the TPS.. i'm trying to figure out exactly what all i will need to be put back on for it to run correctly... and if anyone can send a link to a good write up on the emissions removal.. thats what was supposedly being done, and insted it was a massacre... please help
Old 03-16-07, 12:41 PM
  #2
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
I think if you'll look in the archeives section of this forum, you'll find a emissions removal item. Personally my car is intact so I can't help.

Might help to know IF all the electrical plugs are cut off. Like the small, two socket plugs on the left side of the enigne colored, green, blue, yellow, orange, grey. Are they still there?
Old 03-16-07, 02:16 PM
  #3
Rotary Enthusiast

iTrader: (1)

tandolla's Avatar

Join Date: Dec 2005
Location: Everett, WA
Posts: 1,017
Likes: 0
Received 0 Likes on 0 Posts
http://rotaryresurrection.com/2ndgen...s_removal.html

that is another emissions removal site.
Old 03-16-07, 10:56 PM
  #4
Junior Member

Thread Starter

RX-7sol's Avatar

Join Date: Jul 2006
Location: Lexington, SC
Posts: 31
Likes: 0
Received 0 Likes on 0 Posts
all the electrical plug-ins are there... sensors and such have been removed...
Old 03-17-07, 12:15 PM
  #5
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts

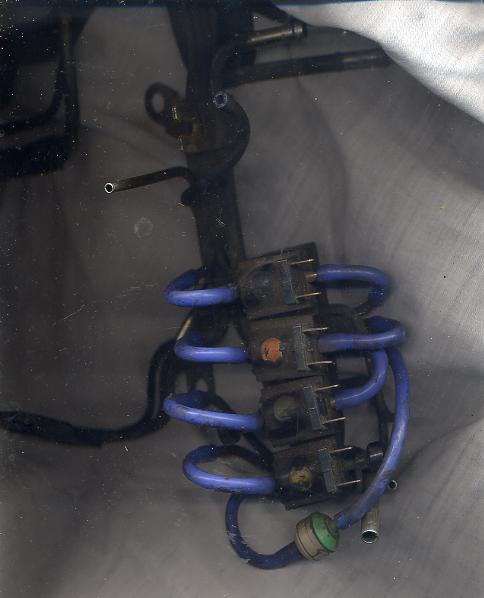

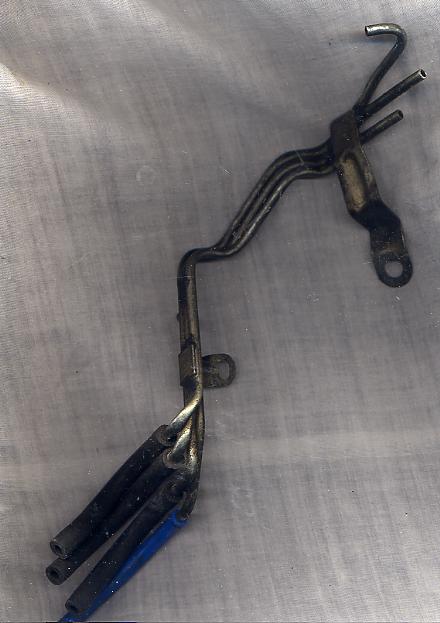

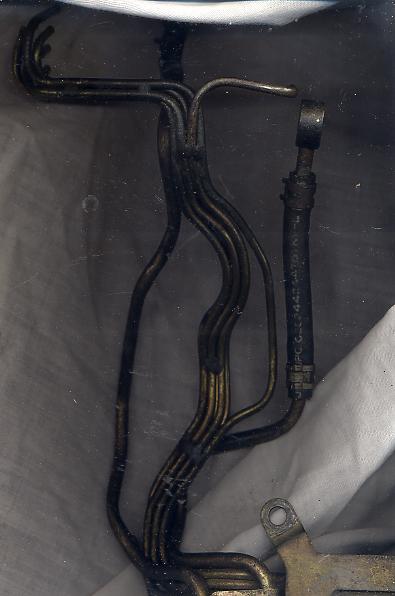

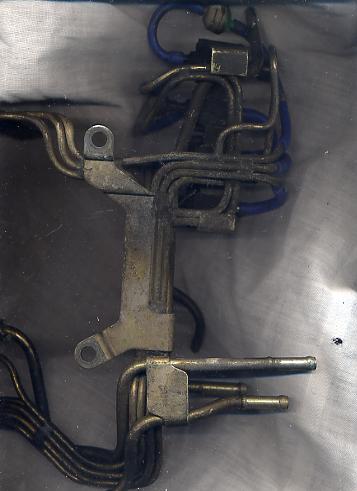

Your mising the vacuum rack which is made up of metal tubing welded together. Actually two assy's of tubing. Jpg's attached might help.
Attached Thumbnails air this, air that... can someone give me answers?-topview.jpg   air this, air that... can someone give me answers?-bottomview.jpg   air this, air that... can someone give me answers?-bottoomview2.jpg   air this, air that... can someone give me answers?-bottomview3.jpg
Old 03-17-07, 12:24 PM
  #6
Senior Member


redlineracer's Avatar

Join Date: Feb 2003
Location: Covington, VA
Posts: 541
Received 0 Likes on 0 Posts
http://forum.teamfc3s.org/showthread...highlight=gold

http://www.nopistons.com/forums/inde...opic=52144&hl=
Old 03-17-07, 12:49 PM
  #7
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
M

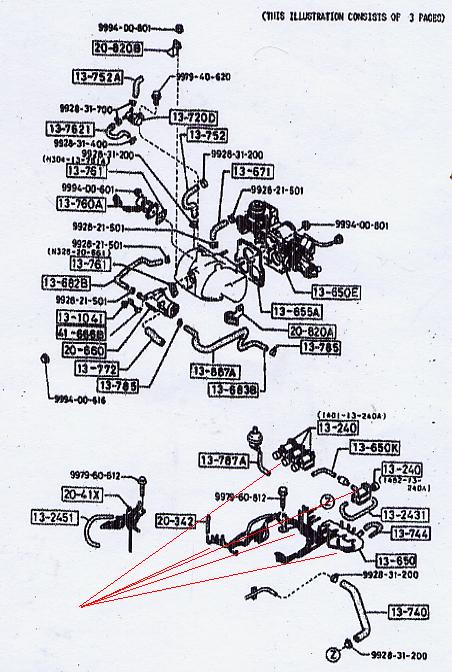

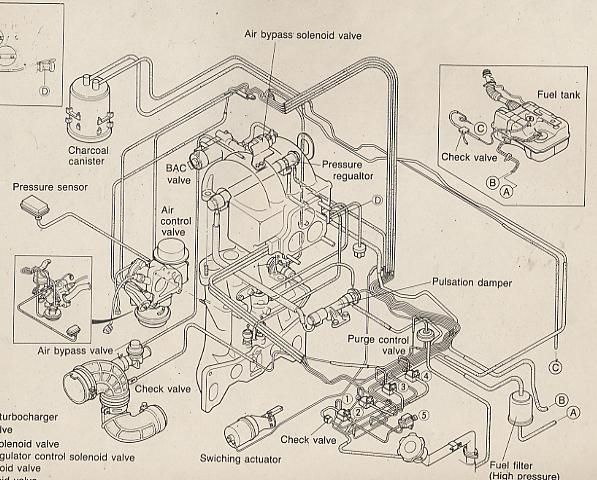

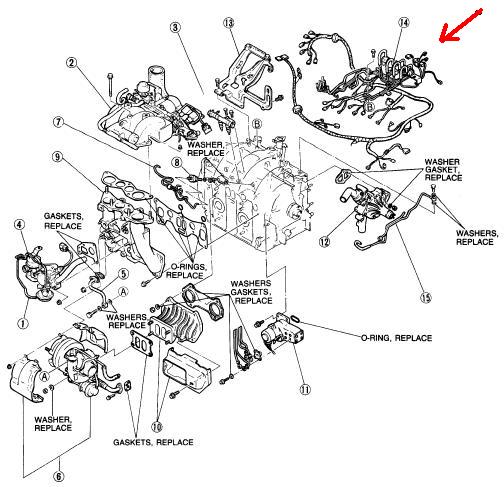

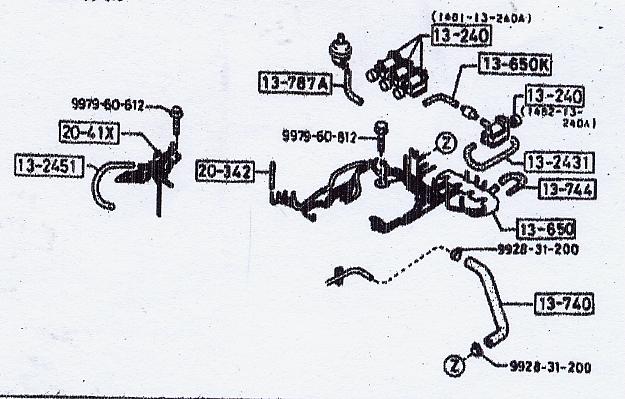

Buy the two metal pipe racks and about six feet of vacuum tubing and reinstall it. Use the FSM as a guide.
Attached Thumbnails air this, air that... can someone give me answers?-rackone.jpg   air this, air that... can someone give me answers?-racktwo.jpg   air this, air that... can someone give me answers?-intakemanifold3.jpg   air this, air that... can someone give me answers?-intakemanifold4.jpg

Last edited by HAILERS; 03-17-07 at 01:13 PM.
Old 03-17-07, 01:21 PM
  #8
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
,

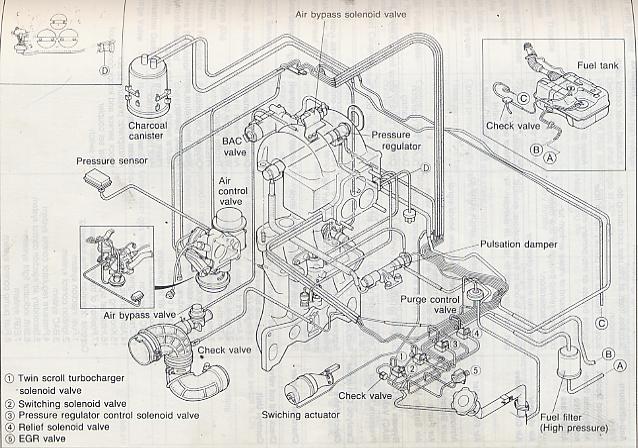

Attached Thumbnails air this, air that... can someone give me answers?-rackfive.jpg
