rx7 FC TII

iTrader: (3)

i am in the process of removing the ACV and i have a question about the vac line that goes from the pressure sensor and the line that comes off of the BOV..... the line that was coming from the pressure sensor was plugged into the ACV..... is that the correct place that it should have gone in the first place?.....and the line that was coming off the BOV went into a little nipple above and to the left of the ACV on the UIM... where are these lines supposed to go now??

HAILERS

Drill a hole and install a nipple on the blockoff plate that is replacing the ACV. Drill the hole and locate the nipple exactly where the nipple on the ACV was located (common sense, I know).

NZConvertible

Like this:



You can also tee it into the BOV line, but this way is better.

mazdaverx713b

iTrader: (91)

well played. i guess a barbed fitting would do fine. did you just thread it in or braze it in?

NZConvertible

I drilled and tapped a hole in the plate, screwed it in and ground off the excess threads poking out the back.

HAILERS

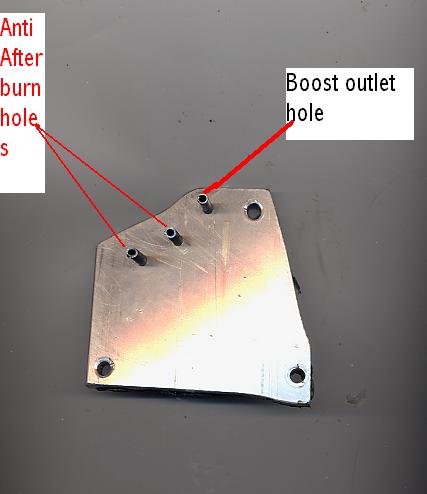

Here's a really fine looking blockoff plate for a turbo engine. Notice the three nipples. Superior product if I do say so myself. humor

Any BOP sold should have the three nipples or you should get a discount for their inferior product. If you bought one without nipples.........file a class action suit. Seems to work for every thing else.

rx7 FC TII

iTrader: (3)

well this thread is a bit old but i do plan on pulling the ACV blockoff and drilling a hole ...then install a nipple just like the first picture....the 7 is gona be sittin for a while due to a blown coolant seal.....
