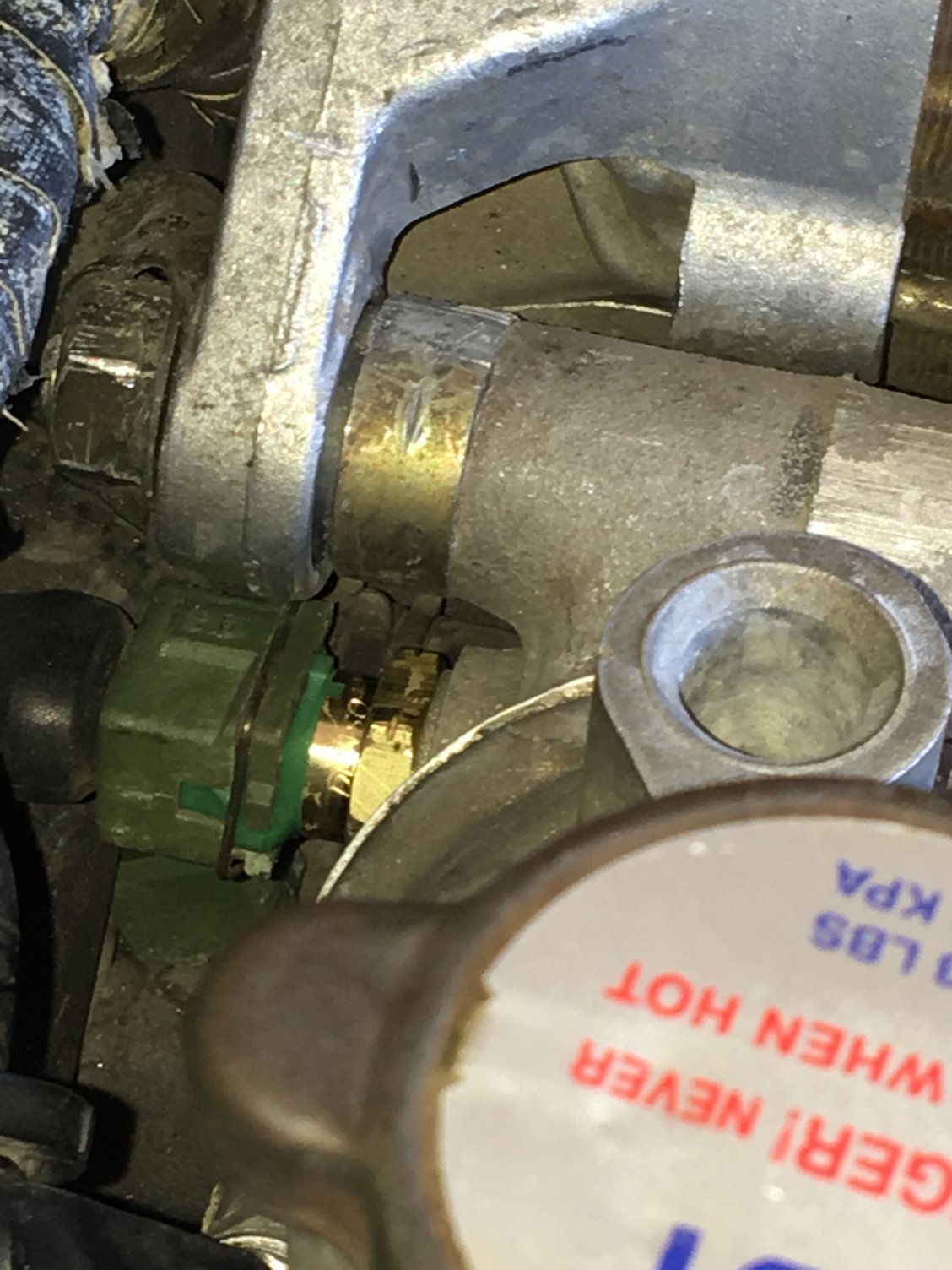

Can someone identify what this is? 88 NA GTU. It is located between the back of the thermostat housing and alternator
Old 06-20-17, 06:11 AM
  #2
Winter Rotary

iTrader: (5)

Acesanugal's Avatar

Join Date: Dec 2006
Location: Athens, Georgia
Posts: 2,552
Likes: 0
Received 12 Likes on 12 Posts
Coolant temp sensor.
Old 06-20-17, 08:49 AM
  #3
Cake or Death?

iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,249
Received 63 Likes on 53 Posts
Originally Posted by Acesanugal
Coolant temp sensor.
More specifically, it's the temp sensor used by the ECU.
The gauge has a separate sensor located on the block.
Old 06-20-17, 03:22 PM
  #4
Junior Member
Thread Starter

timekeepfc's Avatar

Join Date: Sep 2016
Location: LONG BEACH
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by clokker
More specifically, it's the temp sensor used by the ECU.
The gauge has a separate sensor located on the block.
so in other words it's very important lol what would happen if this were to break off entirely?
Old 06-20-17, 03:44 PM
  #5
Winter Rotary

iTrader: (5)

Acesanugal's Avatar

Join Date: Dec 2006
Location: Athens, Georgia
Posts: 2,552
Likes: 0
Received 12 Likes on 12 Posts
It's a 25 dollar part at autozone.. just replace it. Don't forget to bleed your cooling system after.

As clokker said, that is the sensor used by the ecu to determine how warm the engine is.. which in turn directly affects how your car will start and run because of the difference in fuel requirements.
Old 06-20-17, 06:04 PM
  #6
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
I've changed this sensor out before..and If you have good access to it and are Quick..(not like on Meth or anything.,lol..just not fumble nuts slow!)..you can pop it out and exchange it for new and lose about an ounce or two of coolant.

Ya.it's important..anything to do with the ECU and Temp is crucial as it alters fuel maps too..so that thing needs to be in good working order and connected up so that the ECU can read the temp of the engine.
Old 06-20-17, 06:07 PM
  #7
Senior Member


teeson's Avatar

Join Date: Mar 2015
Location: Vancouver, BC
Posts: 335
Received 7 Likes on 5 Posts
Originally Posted by timekeepfc
so in other words it's very important lol what would happen if this were to break off entirely?
ECU will keep the car rich, thus poor fuel economy, smell, even backfires. And that's if the sensor doesnt make continuity with the pins sticking out of it. I had all kinds of fun when mine had a similiar issue
Old 06-20-17, 11:39 PM
  #8
rotorhole

insightful's Avatar

Join Date: May 2017
Location: retired rotorist
Posts: 680
Received 70 Likes on 66 Posts
important enough that how you have it pictured it is most definitely non functional.
Old 06-23-17, 05:03 PM
  #9
Junior Member
Thread Starter

timekeepfc's Avatar

Join Date: Sep 2016
Location: LONG BEACH
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Finished product! Thanks 4 all the help Guys! 🤘🏽
