88 TII Engine Bay Relay Placement
06-30-18, 07:40 AM
#1
88 TII Engine Bay Relay Placement

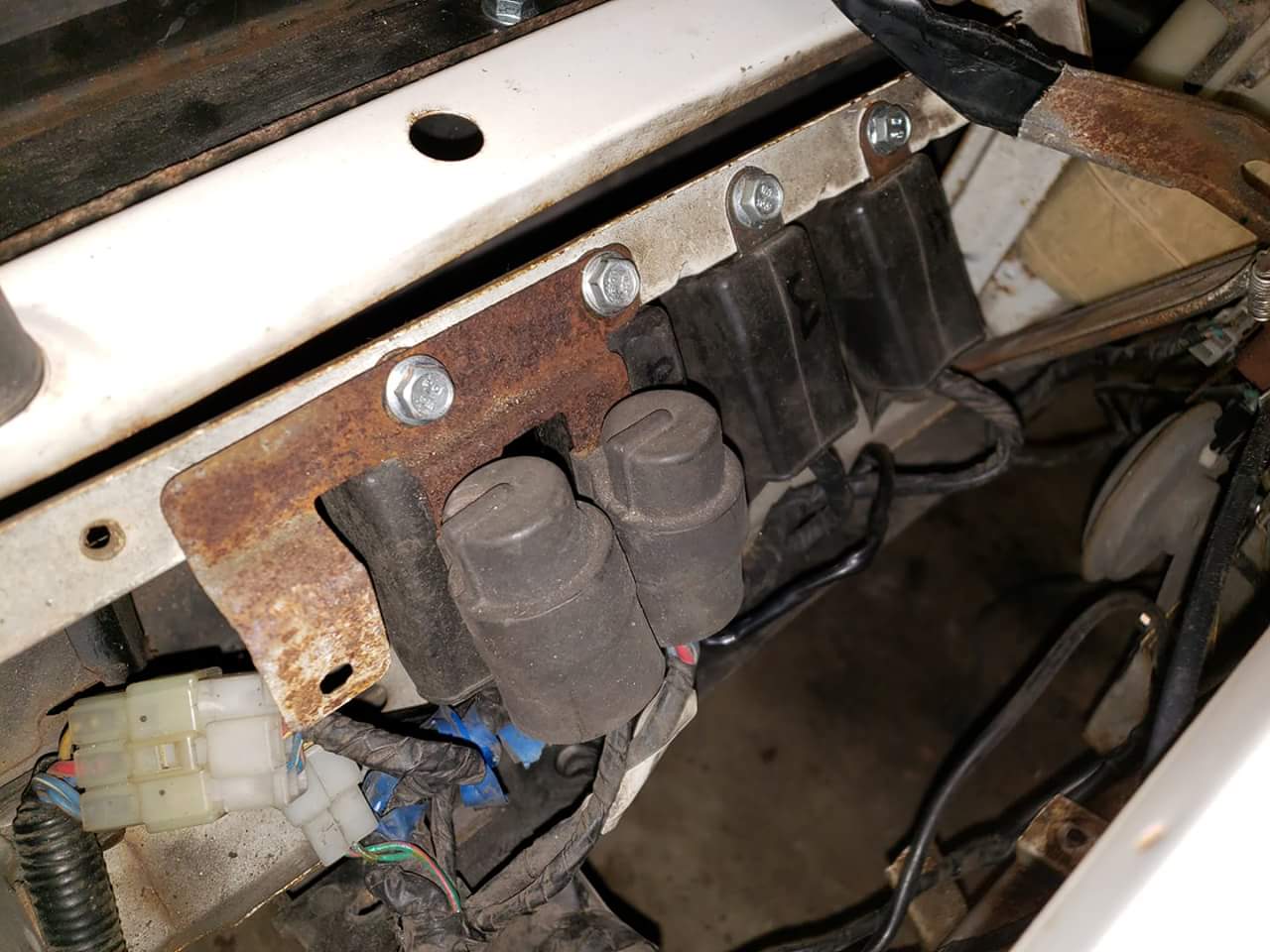

As you guys know, I got my current 10AE restoration project as a roller with the harness in a bunched roll in the engine bay. I'm looking to get the relays in their exact location. I have them loosely bolted in place currently but I want them in their correct location. I'm just weird like that. I currently have four relays in a row on the core support with the a/c relays on top of the first two. In looking pictures of the last 10AE that I restored, I only see the a/c relays and maybe the last two in a row like I currently have them. I just want them to be correct and if they are currently correct then I will feel much better. Here's a pic of how they currently are placed in my car:
06-30-18, 09:47 AM
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
i found that the wiring diagram had the best picture... Foxed.ca - Mazda RX-7 Manuals
