87 Turbo Hood Vacuum Diagram.

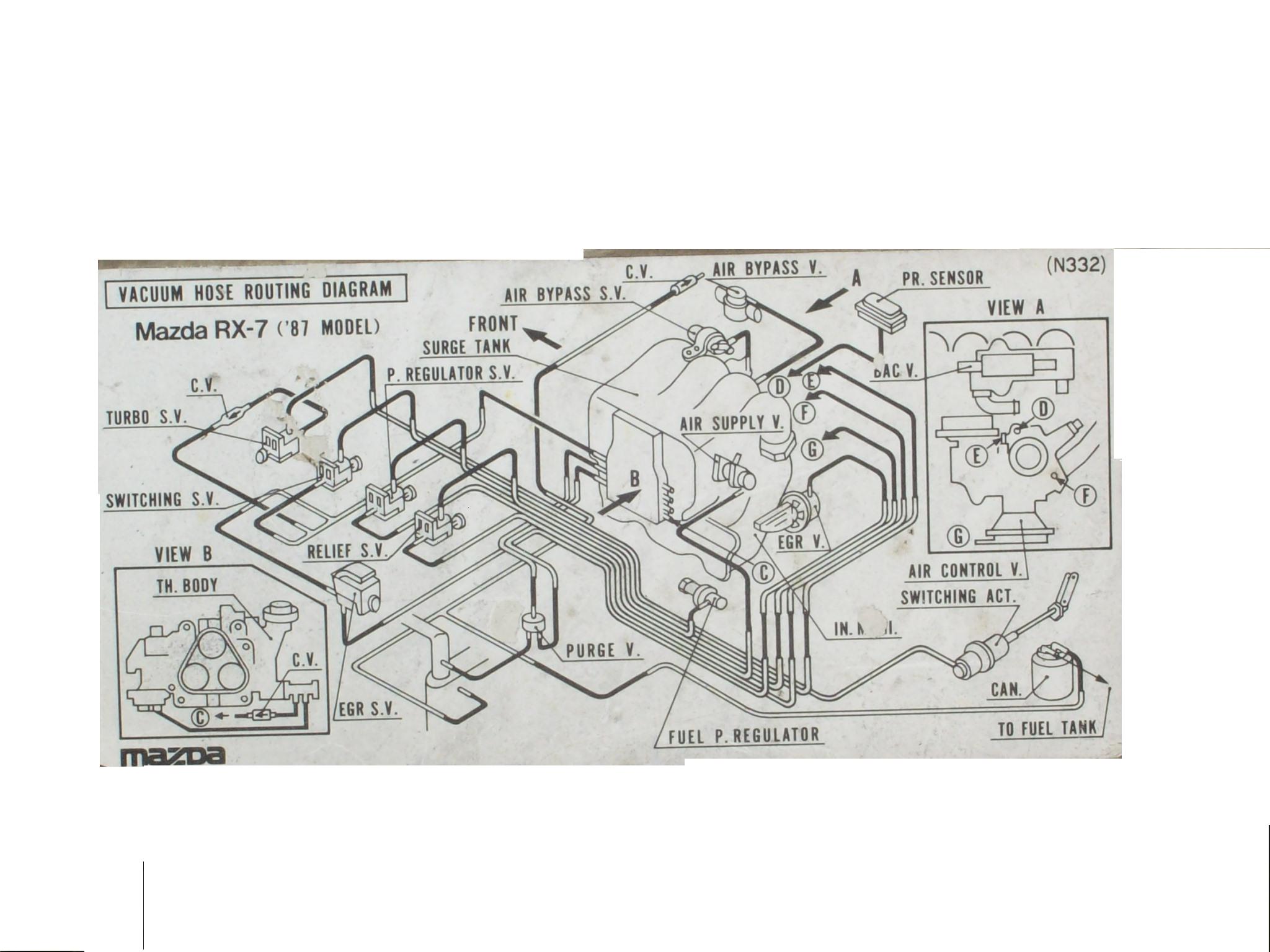

This is the diagram that was pasted on the hoods of series four Turbo cars and it might help someone who can't follow the FSM or Haynes diagrams. You can follow each line from end to end on this one.
