5th blown motor teardown pictorial: 56k NO WAY!
12-02-05, 02:37 AM
#1
5th blown motor teardown pictorial: 56k NO WAY!
Here you can see the chipped fin on the turbine wheel, likely due to the apex-seal savagely exiting the turbo.
Yes, I am a brutal Yeti-man... Working in the most deadly conditions known to man... A gnarly SEATTLE SNOW-STORM! I think we got 1/4".

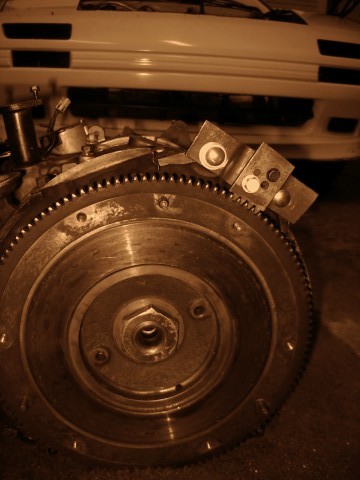

This is a shot of the sweet fly-wheel 'stopper' that my "rotary mentor's" Dad created.
Last edited by eriksseven; 12-02-05 at 02:40 AM.
12-02-05, 02:51 AM
#3
This is my fly-wheel removal setup. Fatty socket, breaker-bar and the chain/wood setup so the motor doesn't 'flip' over as I apply pressure to the breaker-bar.
If you look closely at this image you can see that one of the corner-seals was 'frozen' flush into it's slot. The spring behind it had flattened.
These are some pics of my front and rear irons. You can see my uber skilled, port-master style.
Suprisingly all of my irons came out undamaged.
Front rotor-housing... Undamaged!
Rear rotor housing... Undamaged! Except, take a close look at the exhaust sleeve.
You can see where the apex seal made it's exit.
This is my rear rotor. Look at the apex seal-slot.
It's 'folded' over and bent up.
These are my coolant seals... Is it ok to reuse them? Or is it a general consensus that they need to be repaced when the motor's taken apart...?
Good comparison between my stock turbo (top) and my hybrid TO4b turbo (bottom).
12-02-05, 03:05 AM
#6
Here's the best pic:
The apex seal on the left was taken out of the rear-rotor... The rest is history. Literally. There's nothing left.
The middle-left seal had it's tip broken off and the tip is history too. The seal in the middle-right is for comparison.
The apex-seal tip to the left has also been shattered, with no trace of it's missing peice. The one on the right is for comparison too.
Damage conclusion:
-The rear rotor had one flattened corner-seal
-One apex-seal had 3/4 missing
-Another apex-seal had a shattered tip
-One apex-seal tip was shattered
-The rear rotor-housing had a severely chipped and damaged exhaust sleeve
-One of the rear rotor's apex-seal slots had been chewed up
-The turbo had a chip on one of the turbine-wheel blades.
Suprisingly, the irons and housings appear to be undamaged and reusable. I have several other TII rotors, so I can replace the 'chewed' up rotor with a good one.
My rebuild list is:
apex-seals and springs
corner-seal springs
oil-seals
I think that's it...
The apex seal on the left was taken out of the rear-rotor... The rest is history. Literally. There's nothing left.
The middle-left seal had it's tip broken off and the tip is history too. The seal in the middle-right is for comparison.
The apex-seal tip to the left has also been shattered, with no trace of it's missing peice. The one on the right is for comparison too.
Damage conclusion:
-The rear rotor had one flattened corner-seal
-One apex-seal had 3/4 missing
-Another apex-seal had a shattered tip
-One apex-seal tip was shattered
-The rear rotor-housing had a severely chipped and damaged exhaust sleeve
-One of the rear rotor's apex-seal slots had been chewed up
-The turbo had a chip on one of the turbine-wheel blades.
Suprisingly, the irons and housings appear to be undamaged and reusable.
I have several other TII rotors, so I can replace the 'chewed' up rotor with a good one.My rebuild list is:
apex-seals and springs
corner-seal springs
oil-seals
I think that's it...
12-02-05, 03:10 AM
#7
Originally Posted by trochoid
Looking at the rotor groove and the exhaust port, you may need a little more bevel at the top of the exhaust.
How do you like that hybrid and which stage is it? I'm contemplating one for my 12a-bp when I turbo it.
How do you like that hybrid and which stage is it? I'm contemplating one for my 12a-bp when I turbo it.
Hybrid was purchased off another forum member. It is built to similar specs as the BNR stage 1. The wheel is a slightly different design (supposedly) and is supposed to produce more power than it's BNR counterpart.
Question; if the chipped turbine wheel is the only damage that was done to the turbo, is it still OK to use?
