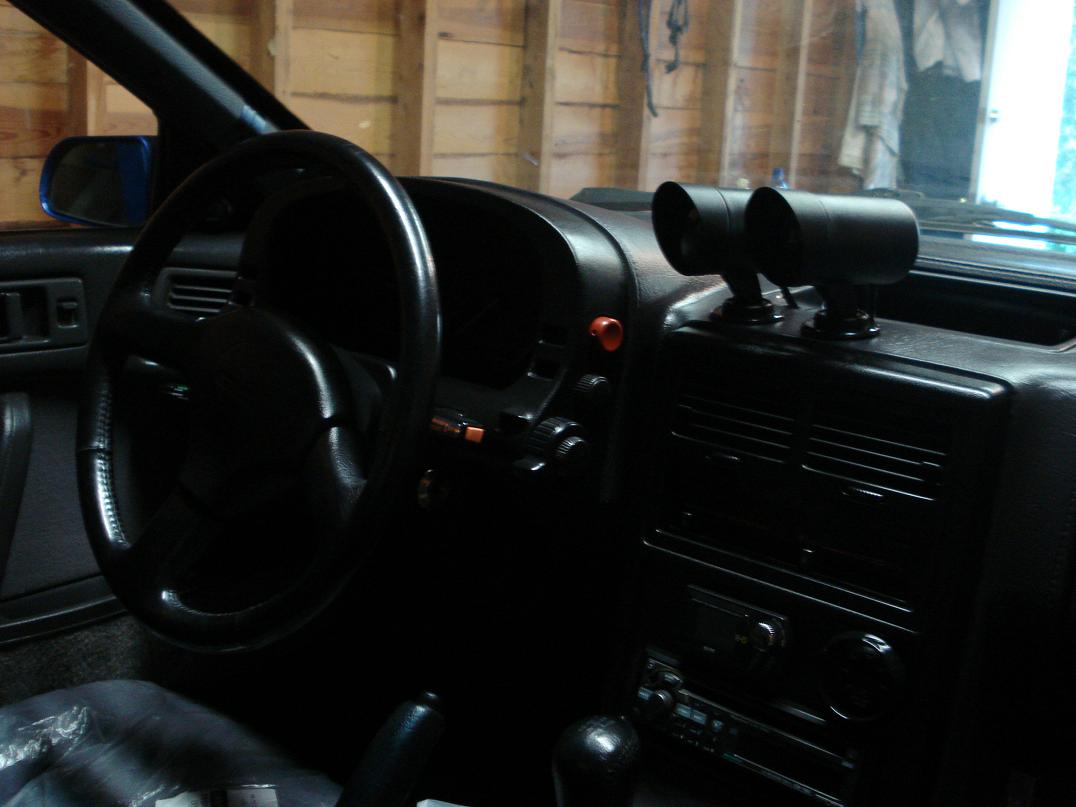

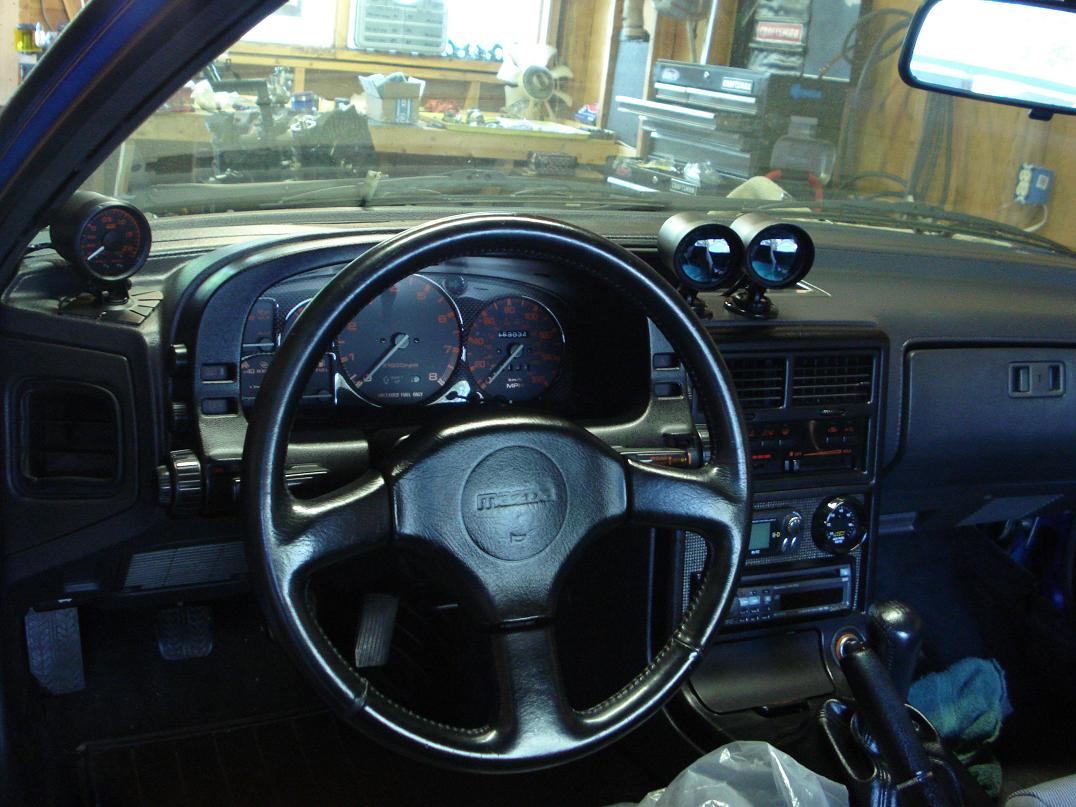

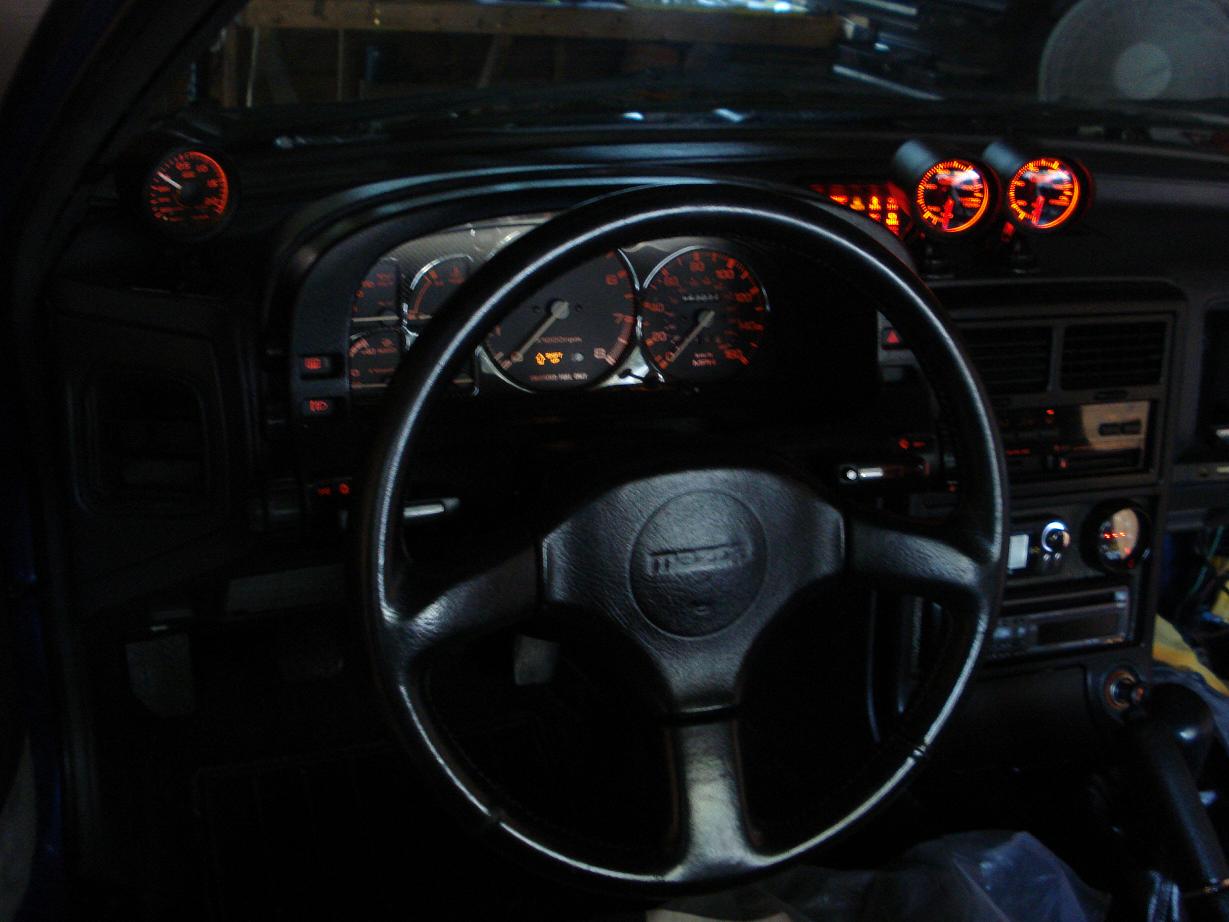

Using tacho`s, Let`s see your setup?
#26
Camshaft
iTrader: (1)
If you knew it was off, why bother putting another one in? I still don't understand.... If the ****'s so old it breaks, Fix it! lol....
Pretty much the way I always imagined having mine when my project is done. Beautiful gauges! Love the execution. Can we see some more interior shots?
#28
It wasn't to hard to make the cluster. All I used was a dremel, drill, hole saw, and a thin sheet of aluminum.
I don't have any pics of the build up. But here's a rough MSpaint example of what I did, borrowing one of Wanked_FC's pics.
All you do is take the gauge cluster apart separate the front black half and rear white half. When everythings apart carefully pop the clear front cover plate off, not to damage the black surround.
Once you got the clear cover off, take a dremel and carefully trim the face plate (circled in red) off the surround. Be careful not to cut into the surround itself.
The Green outline is an example of the shape I trimmed the aluminum sheet to mount the gauges to. The hole saw was used to cut the holes necessary for the gauges.
For the rear white backing, your gonna have to trim the center section as required to clear the gauges. Careful not to cut into the surround on this also.
Pretty much all you do now is just sandwich the aluminum plate that your gauges are mounted on, inbetween the front and rear surrounds. After its sandwiched you should have a couple of screw points available for you to hold everything together until you can finally mount this badboy into the dash securely.
I don't think you'd want to see my interior. Unless you have a thing for gutted interiors, lol.
I don't have any pics of the build up. But here's a rough MSpaint example of what I did, borrowing one of Wanked_FC's pics.
All you do is take the gauge cluster apart separate the front black half and rear white half. When everythings apart carefully pop the clear front cover plate off, not to damage the black surround.
Once you got the clear cover off, take a dremel and carefully trim the face plate (circled in red) off the surround. Be careful not to cut into the surround itself.
The Green outline is an example of the shape I trimmed the aluminum sheet to mount the gauges to. The hole saw was used to cut the holes necessary for the gauges.
For the rear white backing, your gonna have to trim the center section as required to clear the gauges. Careful not to cut into the surround on this also.
Pretty much all you do now is just sandwich the aluminum plate that your gauges are mounted on, inbetween the front and rear surrounds. After its sandwiched you should have a couple of screw points available for you to hold everything together until you can finally mount this badboy into the dash securely.
I don't think you'd want to see my interior. Unless you have a thing for gutted interiors, lol.
#31
Senior Member
Thread Starter
Join Date: May 2008
Location: Norway
Posts: 437
Likes: 0
Received 0 Likes
on
0 Posts
Is it me or am i making it harder than it really is in my head? You just carved a new cluster"bracket" and bought your aftermarket gauges of choice and just wired em up and mounted them in your instrument cluster?
#32
FC guy
iTrader: (8)
I wish they would sell a tach with a small digital readout for speed to eliminate another gauge.
are your gauges behind the original plexi panel or out in the open?
I want to do a custom gauge lay out but with a large tach front and center, thinking of no speedo, just going off GPS speed and engine speed, and all of it behind the stock plexi shield
are your gauges behind the original plexi panel or out in the open?
I want to do a custom gauge lay out but with a large tach front and center, thinking of no speedo, just going off GPS speed and engine speed, and all of it behind the stock plexi shield
#33
Senior Member
Thread Starter
Join Date: May 2008
Location: Norway
Posts: 437
Likes: 0
Received 0 Likes
on
0 Posts
Once you got the clear cover off, take a dremel and carefully trim the face plate (circled in red) off the surround. Be careful not to cut into the surround itself.
Does that mean u actually have too cut the face that have the holes for the gauges out and then trim/flatten/polish the leftovers from the cut-away inside,Or is the surrounding and the face teo separate pieces?
Does that mean u actually have too cut the face that have the holes for the gauges out and then trim/flatten/polish the leftovers from the cut-away inside,Or is the surrounding and the face teo separate pieces?
Last edited by OutCold; 08-30-08 at 11:41 AM.
#35
Its a swapped car, I'm sure it a lot of it will probably can still be made to work with a stock motor. I've had all the random stuff available to me, and all I spent money on were just the gauges. Which set me back around $550, if I remember correctly.
I think its just you, I'm sure once you have everything in front of you it will be easier to see what I was getting at.
They're out in the open. I did that because the stock plexi will have an open hole from the old trip reset, and other being that I wanted to mount the speedo trip button right next to the speedo itself on the gauge plate.
Its all one piece. But yeah just cut face with all the gauge holes out, and carefully trim the excess away.
Thanks for all the compliments.
They're out in the open. I did that because the stock plexi will have an open hole from the old trip reset, and other being that I wanted to mount the speedo trip button right next to the speedo itself on the gauge plate.
Once you got the clear cover off, take a dremel and carefully trim the face plate (circled in red) off the surround. Be careful not to cut into the surround itself.
Does that mean u actually have too cut the face that have the holes for the gauges out and then trim/flatten/polish the leftovers from the cut-away inside,Or is the surrounding and the face teo separate pieces?
Does that mean u actually have too cut the face that have the holes for the gauges out and then trim/flatten/polish the leftovers from the cut-away inside,Or is the surrounding and the face teo separate pieces?
Thanks for all the compliments.
#37
Senior Member
Thread Starter
Join Date: May 2008
Location: Norway
Posts: 437
Likes: 0
Received 0 Likes
on
0 Posts
HAHA tell me about it! Neither can i, either its the wrong colour series or wrong metric system or missing a few gauges that i need, im basically looking for a series that has the whole shebang, Like Tacho/Speedo/Fuel lvl/Oil Press and Temp/Water Temp and Turbo...maybe even voltage...
