Twins80s

iTrader: (3)

I hope others see this and read my thread on this kit.......and wait for the other kits to come out or make their own. Funny thing is rotary works was trying to say I did it wrong when I installed my kit. Still doesn't make up for things not fitting worth a damn.

tuscanidream

iTrader: (6)

@Twins80s What did you do for the temp sensor located in the water pump nozzle? The replacement doesn't come with a spot for it?!

Twins80s

iTrader: (3)

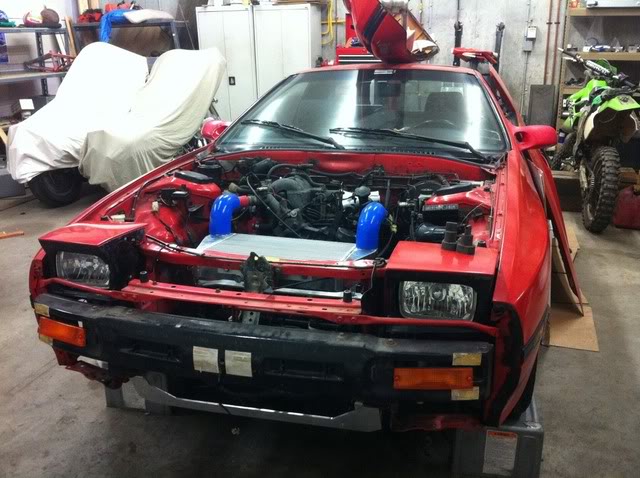

Well when I had the lower radiator outlet relocated I had the upper one rotated. So I actually ended up useing one of the flexible radiator hoses. here is how mine ended up looking. Mind you this was also before they released pics of how it was "made to fit".

afpreppie04

iTrader: (5)

I had this same question, since I am running the same TB tube. I posted about it here. Long story short, it fits without changing the brake stuff, but barely. There is about 1mm of clearance.

tuscanidream

iTrader: (6)

Thanks for the picture twins80s.

And thanks afpreppie04.

tuscanidream

iTrader: (6)

Trying to fix all the holes on every bracket was a learning experience. I did a far from perfect job, but it works. The oil cooler brackets might not even be usable. Who ever made this kit didn't make a jig or use a caliper. :/

I found out that I have to grind the sheet metal off where it used to pertrude to bolt the oem radiator. That's for another day.

Also, only one tube (intercooler to turbo) might work. I don't even have the right coupler. And the huge bag of bolts is shy two small bolts. Millions of other not-needed bolts and washers and nuts.



I am not happy with this kit. I'm going to call them Monday and at least see if they will send me the proper tubing. And give me the right water pump pulley since they never returned my call on Friday.

RXILVER7

iTrader: (2)

I have this kit sitting around waiting to be installed. All the "Don't Fit" threads are making me scared. I was hoping it would be an in and out easy job. Guess not though.

tuscanidream

iTrader: (6)

It can fit. Everything just needs adjustment. I'm finding out what techniques seem to work the best for "fixing" things. Like obliging the holes. I tried titanium flat bottom bits in my drill press. But because I couldn't clamp down a piece well enough, it made a mess. Roto zips dulled out too quick. I found that a round file broken off and on a drill worked best. And I used a marker and estimated the holes. I used my caliper and measured for length. To trim length, a 60 grit flap wheel in the drill press worked best for me.

While this kit is a disaster, I don't know how to weld. If I did, I would have probably made my own v-mount.

iani1.1

iTrader: (13)

im not a big fan of those end tanks.

sharingan 19

iTrader: (16)

Wow.
Calling this thing a "kit"should qualify as false advertising...

I'm pretty sure my custom v mount required less customization...

RXILVER7

iTrader: (2)

I'm just crossing my fingers and hoping mine bolts up easier than the rest. If not, I have a fair amount of fabricating skills and have done plenty of brackets on my FD, so I think i'll be ok.

tuscanidream

iTrader: (6)

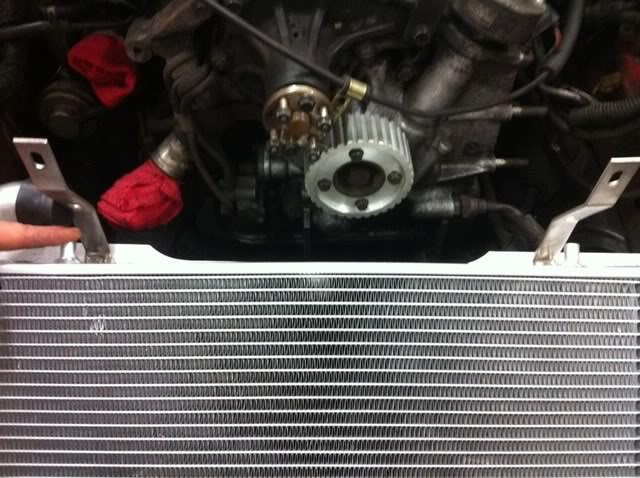

What the ****. I thought the radiator could be the one part to bolt up. Guess I'm wrong. Seriously, did they even test fit this kit?!

I just ordered an oil cooler from them. If the oil cooler doesn't fit... I might just say **** it and try to hire a fabricator to make all new brackets. The bracket that is supposed to hold the oil cooler is bent to clear the bumper (stress) and is only welded on one side. To top it off, because they welded the support bar crooked, the oil cooler mounts are not even. It may even hit the hood latch support. Ugh. This is getting me upset.

Here's the top radiator/intercooler brackets.

magus2222

iTrader: (22)

welp, that settles it for me. this looked like a legit kit, but if nothing has been made right, there no point of dropping over a G just to have to drop more $ to fab **** to fit.
i guess just shelling out 1500-2500 to fab my own vmic will be the only way to go................
this is just pathetic

Lloyd

antj101

I hate you for having a TII... lol.

Looks like your doing great work man.

tuscanidream

iTrader: (6)

Thanks. In the end, I know it will come out good. It will just be frustrating, cost a lot of money, and take a while to complete.

Ps I see a tii swap in your future :p

antj101

Yeah... you must be seeing waaayyy into the future... lol

sharingan 19

iTrader: (16)

If you're willing to pay that much I would suggest you check out Rotary Extreme. Unlike this mess there is some actual R&D that goes into his products. Check out the FD kits to get an idea...

I'm sure it will come out great, it just sucks that its going to end up costing more than twice what it should (honestly, after shipping, thats about where the RW kit is already) But a little time , a tape measure and and some fab skill will get you a LONG way.

If I didn't already have my IC and rad, I would have bought units w/ the proper orientation on the outlets (eliminating the need to cut and weld them) and I could have almost done my v-mount myself. There was really only one mount that HAD to be welded.

For any who might be interested...

https://www.rx7club.com/showthread.php?t=933572

tuscanidream

iTrader: (6)

So I just ordered a greddy compression tube in hopes that it is a tad shorter in length than the damn rotaryworks one. I really don't want to use a 45* coupler.

I'll grab a few other items, save, and wait until after the holidays to hire someone to fix this damn kit the right way.

Furb

iTrader: (2)

Thats imo no reason not to..
I cant weld aluminium either, but i fabricated every part for my v-mount and held it together with tape.
Then i went to a guy that can weld and he fixed everything for me.

RXILVER7

iTrader: (2)

So whats the latest on the v mount install?

-Crash-

Sorry to hear it is such crap dude!

Another option might be the Neukin V-mount. The kit comes with everything needed to install it and even comes with duel electric fans w/ wiring harness and the hood vent. Looks well built, and a member of this forum is sponsored by them. (And its a great price)

http://www.neukin.com/PhotoGallery.a...e=neukinmFCvmk

Here is the info from their site:

Custom Neukin Intercooler (Garrett bar/plate core), Double pass massive Neukin radiator, dual electric fans (terminals and wire included) Brackets and frame work needed to install. Intercooler pipes, couplers, and stainless t bolt clamps. Radiator hoses and clamps, inline coolant fill pipe with cap, Louver for hood, Sparco hood pins and latch and hardware for install. Some cutting needed to the upper radiator support, rectangle cut in hood and a few holes drilled. Best to use stock hood and cut our measured hood opening. Louver system drops right in and can be riveted with just two small rivets. The tight fitment allows easy install.

tuscanidream

iTrader: (6)

Dent Sport in mass was recommended to me from a few peeps on here. Dropping off the car to them next saturday to have them make all new brackets from scratch that fit, piping, ducting... etc. It's getting done the right way.

@-Crash-

Thats the only other kit i've seen (neukin). But it has some lack of information and pictures to it as the rotary works did. Like what the **** does "Brackets and frame work needed to install." mean?!?! It was a toss up between the two when i was shopping for my "**** it. vmount or nothing." Both kits was a gamble.

Either way, some one else if going to finish it the right way for me. I'll keep you guys posted with pictures as soon as possible.

hatemy7

This sounds like a bitch to do seriously. I rather just do the tradiotional front mount

smokie

iTrader: (5)

thats clean man...good work....i like it

-Crash-

Yea you do have a point, but at least the Neukin has SOME pictures of it installed lol. Keep up the good work dude, it might be a hassle at the moment but end the end it'll be a sweet setup.
