photoshop request. Coupe out an fc hatch.
10-30-10, 03:30 AM
#103
Well, i ******* hate hatchbacks. I apologize. That's why i created the thread.
I've taken down measurements of back windows when i'm bored and just so happen to remember i want to do this but haven't gone further than that.... I'm caught up in trying to dial my car in mechanically. Bleh....i'll get on it eventually.
05-30-11, 02:55 AM
#104
strange angle
im am 100% doin this. im using my 89 vert and im molesting it haha. ill use reg doors with manual windows a roof with a sunroof and a roof wing. i build it in my head when im tryin to go to sleep and im going to do it for real. ive been fabricating for about 10 years and its not a very far fetched idea. i will post pics wish me luck......
05-30-11, 05:42 PM
#107
im am 100% doin this. im using my 89 vert and im molesting it haha. ill use reg doors with manual windows a roof with a sunroof and a roof wing. i build it in my head when im tryin to go to sleep and im going to do it for real. ive been fabricating for about 10 years and its not a very far fetched idea. i will post pics wish me luck......
06-01-11, 07:56 PM
#110
strange angle
i got measurements off my buddies s13 coupe and its about the right size to make it work but it looks like i might end up starting out with a reg fc shell instead of my vert. its a immobile shell and it will save me time in fab work plus i dd my vert. the shell im using im also putting a cage in and stitch welding it all at once for track use. the s13 window was just for curiosity and it probably wont end up being the best fit so ill have to scout for a better fit.
06-02-11, 06:31 AM
#111
S13 Coupe Back window would be the one... it fits almost perfectly on a coupe (ive messed with attempting this when i did the rear tube chassis on my drift car) starting with a coupe is the easiest way.
anyone who has cut up an FC before knows why. the rear is much easier to cut apart, and install a vert FC trunk than to weld a roof onto a car... thinner metal. less supports. dont have to do much honestly...
someone do this already
anyone who has cut up an FC before knows why. the rear is much easier to cut apart, and install a vert FC trunk than to weld a roof onto a car... thinner metal. less supports. dont have to do much honestly...
someone do this already
06-02-11, 06:33 AM
#112
i got measurements off my buddies s13 coupe and its about the right size to make it work but it looks like i might end up starting out with a reg fc shell instead of my vert. its a immobile shell and it will save me time in fab work plus i dd my vert. the shell im using im also putting a cage in and stitch welding it all at once for track use. the s13 window was just for curiosity and it probably wont end up being the best fit so ill have to scout for a better fit.
06-02-11, 06:40 AM
#113
not to mention a trunk is easier to firewall for a fuel cell in racing applications.
06-02-11, 12:11 PM
#114
Full Member
Join Date: Jul 2006
Location: Canada
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
If I ever have enough cash or a good grow op I'd love to do this, I've thought about it a lot and the only sensible thing to me is to combine 3 different cars. You need a coupe for the bulk of it, you cut if off behind the sunroof and below the hatch.
Then you take the trunk section from a vert and graft it in to fill most of the space using the brace at the front of the trunk for strength. That leaves you with a good sized window area left.
If the S13 is a good fit that will work, you cut out a good chunk of roof, through the pillars and along the edge of the trunk lid, lay it in your hole, do a final trim and fab up whatever little pieces you need to blend it in nice. Should look awesome.
Using just a vert or just a coupe will give you a crappy result imo
Then you take the trunk section from a vert and graft it in to fill most of the space using the brace at the front of the trunk for strength. That leaves you with a good sized window area left.
If the S13 is a good fit that will work, you cut out a good chunk of roof, through the pillars and along the edge of the trunk lid, lay it in your hole, do a final trim and fab up whatever little pieces you need to blend it in nice. Should look awesome.
Using just a vert or just a coupe will give you a crappy result imo
06-12-11, 05:36 AM
#118
strange angle
change of plans again. ill be keeping the hatch frame just removing the big glass. ill put the different window in the hatch frame and sheet metal the rest flat so when you pop the hatch the trunk and rear window both go up like original saving me a lot of time and still having cool functionality. i might end up making more than one version too.
I think it'll be easier for everyone to see in the long run. Take lots of pics!!
10-09-12, 02:29 AM
#122
strange angle
Got a roof cut and home ready to trim and the doors fit perfect even the panels fit great I was serious about this I just had my motor build goin on but that's done. If I knew how to post pics from my iPhone I would show the first step to this getting done.
10-09-12, 03:31 AM
#123
Rotary Enthusiast
10-09-12, 03:52 AM
#124
strange angle

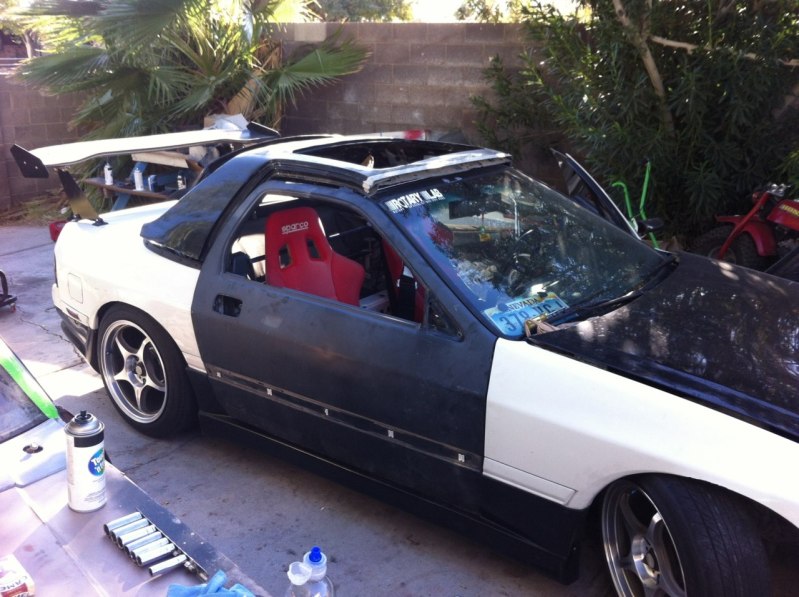

heres a pic of the first time setting it ontop and checking to make sure the doors fit ect. yes it looks pretty funny but im sure once i trim the inner layers of the top and remove the vert top peices it will settle nicely.
