sharingan 19

iTrader: (16)

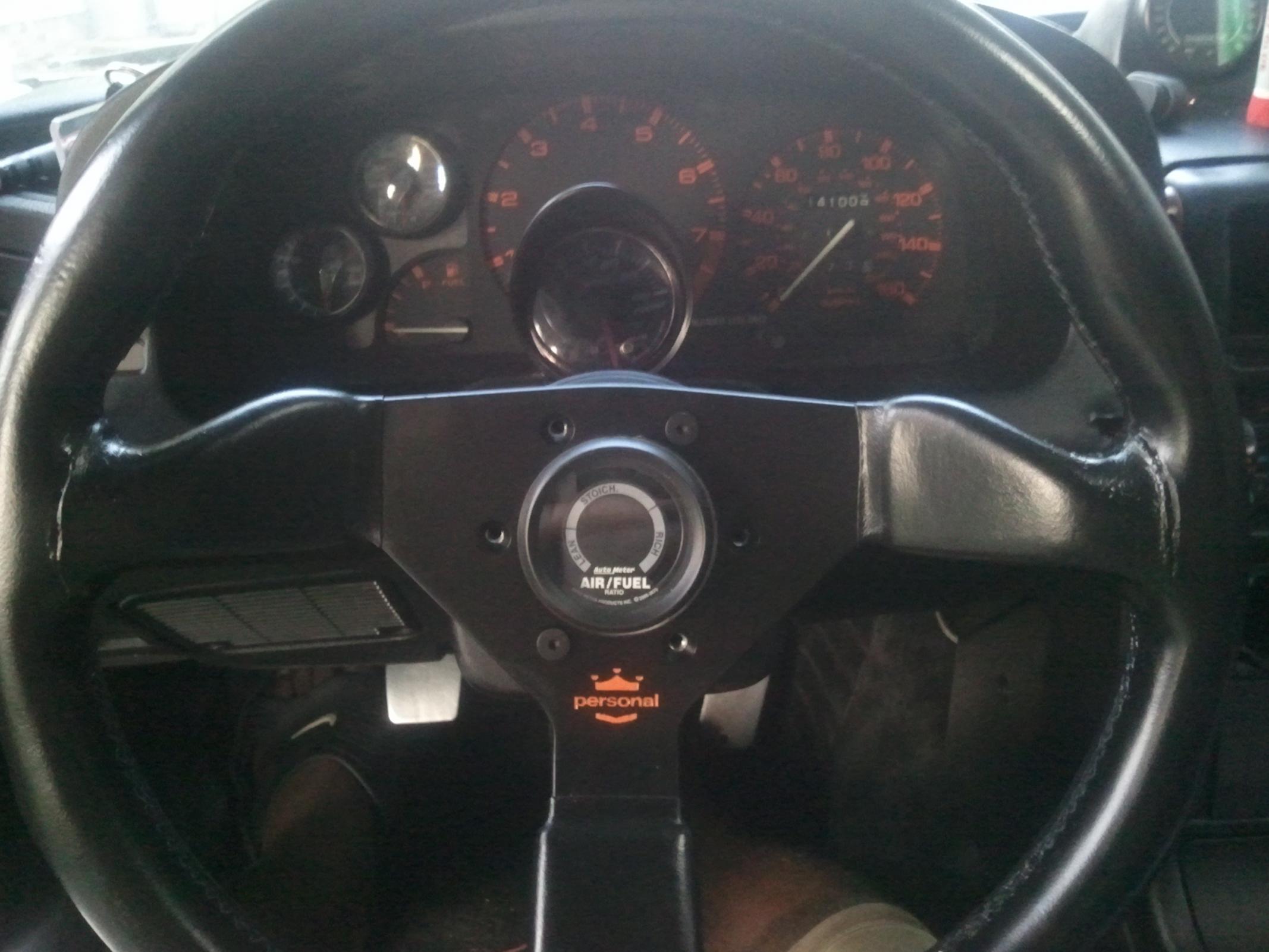

I recently had my steering wheel off for restoration and while I was re-installing it I decided to get creative...

Edit: sorry, when linked directly the attached pic was unreasonably large.

HOZZMANRX7

iTrader: (43)

You know what, THAT is creative. Must be a VERY short gauge body. One could always relocate the wiring for the horn to a separate push button.

Clever.

love_my_Fc

well, at least you didn't put a 5" taco-meter. gud yob senor!

JustJeff

iTrader: (13)

Very interesting!!

What I wanna know is why a narrow band when you've got an Innovate on your idiot cluster adapter?? I'm assuming it's just there as reference?

Hypertek

iTrader: (3)

my boost gauge is at the same spot. it just eclipses the tach, but who needs to read the lower rpm range anyways? =p

Steves13b

iTrader: (9)

i <3 your sandals bro! jk sweet spot for a gauge, foresee any issues with wiring shorts after awhile?

srfjay

iTrader: (10)

He is talking about the one in the steering wheel horn button.

clokker

iTrader: (2)

How did you run the wiring?

DC 91 fc3s

iTrader: (11)

looks cool!

tevan

iTrader: (4)

Personally just not my taste looks odd to me but at least you can see it lol it is a clever spot.

GuiltySoul

iTrader: (7)

does it stay level when you turn the wheel or it spins with?

sharingan 19

iTrader: (16)

Haha, that was just the only spare gauge I had laying around, I didn't permanently mount it, nor have I used the NB since the WB was installed. I was just using it to illustrate my point

Well I cut a recess in the steering column cover to match the contour of the gauge pod so it sits low enough not to block anything, even the lower revs....which I agree aren't all that important.

sharingan 19

iTrader: (16)

Funny you mention the sandals... They are the most comfortable rubber sandals out there (circa 2003...) I went to 7 diff stores to find another pair.

As far as the wiring issues...

I just ran the wires through the hole in my hub that was there for the horn button wire. Since it doesn't get worn through or shorted I see no reason why gauge wires would either. If your gauge requires a larger hole it would be relatively simple to drill it out, or add another. Everything will be hidden by the column cover/ hub cover anyway.

No. No gyros here. This location is more for gauges that you don't have to monitor constantly or at least not while turning....Fuel pressure? EGT? Temp? Fuel Level? etc

TheAbsence

iTrader: (19)

I have to applaud that idea. I've never even thought of that before.
