lownclean

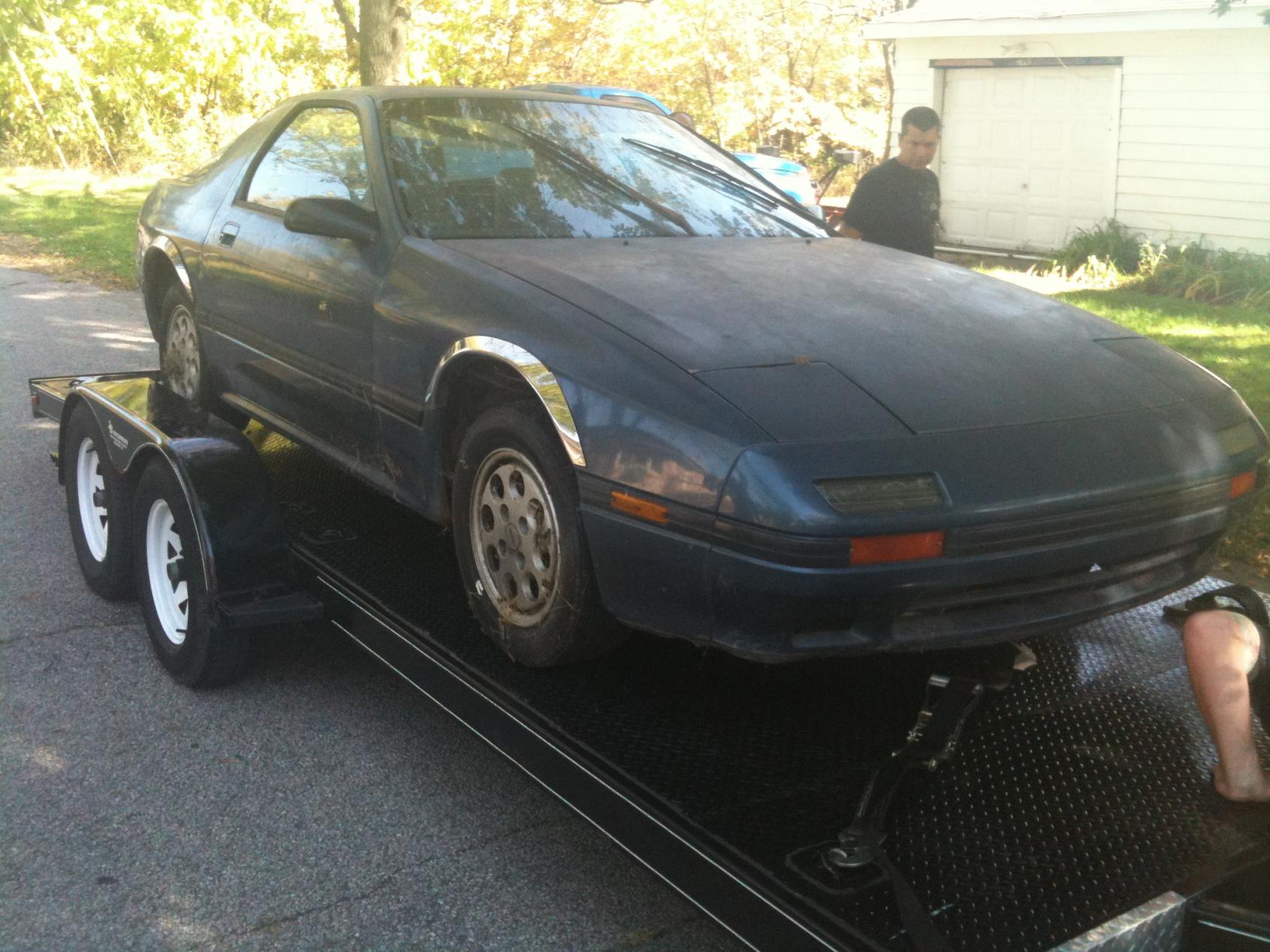

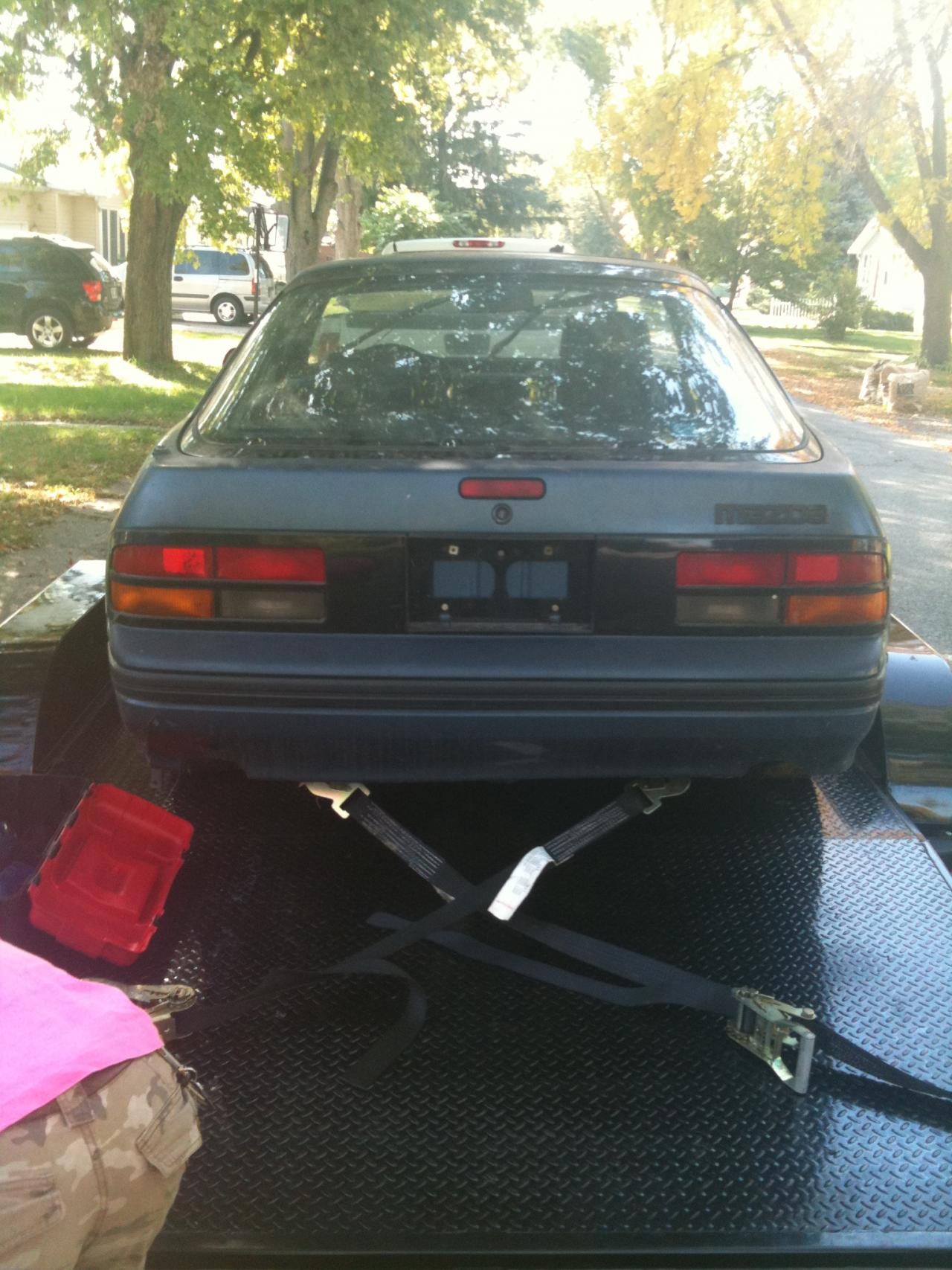

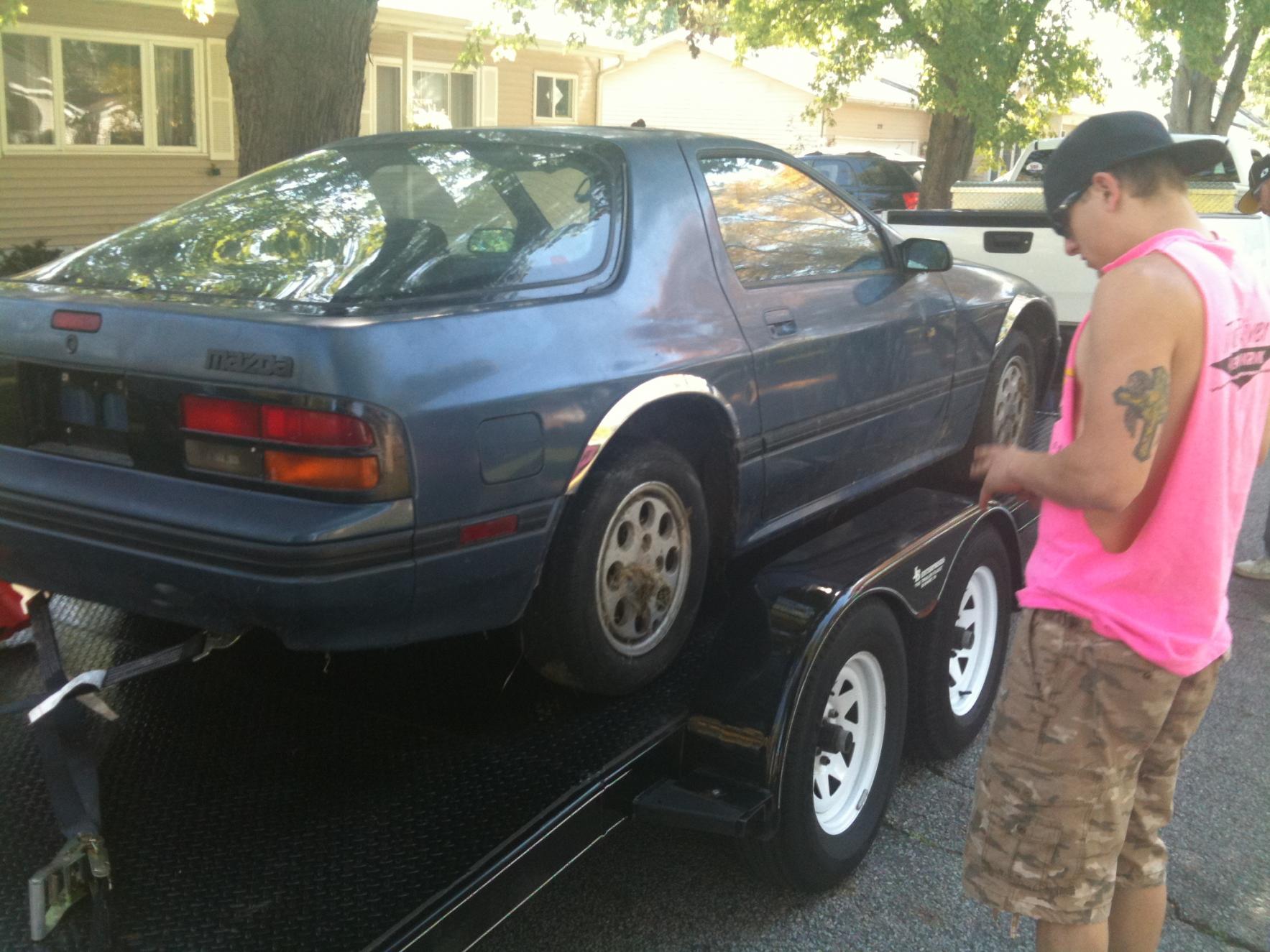

Hi Guys and Gals thought I would post a build thread on my 87 non turbo. This vehicle is going to make a major transformation over the next year or so. I will try and keep the photos up to date. Just a little background on this car is that I found it on craigslist for $800 I only paid $600 for it and thats still too much but its more about learing and the adventure for me. The car had been sitting in the guys garage for 12 years he said one day it just didnt want to start so he let it sit and bought something else. I plan to set the vehicle up for Drift & SCCA events. In the photos posted below i already started demo of the vehicle and have a full turbo drivetrain ordered for the car just waiting for it to come in. Keep wathing the post as I will be updating the photos.

Parts Already Purchased:
D2 racing hydraulic hand brake
Stance Coilover System GR+Pros
Battery Box
Full turbo conversion
Modified knuckles
5 lug swap
New outer door trim moldings (mazda)
New mazda sway bar link mounts (last three available, bought one extra)
Racing seat mount drivers side

Hypertek

iTrader: (3)

Nice selection of parts , your on the right track!

iani1.1

iTrader: (13)

aw shiit. those chrome fenders are madd tyte son!!

-Crash-

^Thats what im say'n! lol

lownclean

who wants to buy them $20 for them you know you could paint them :-)

lownclean

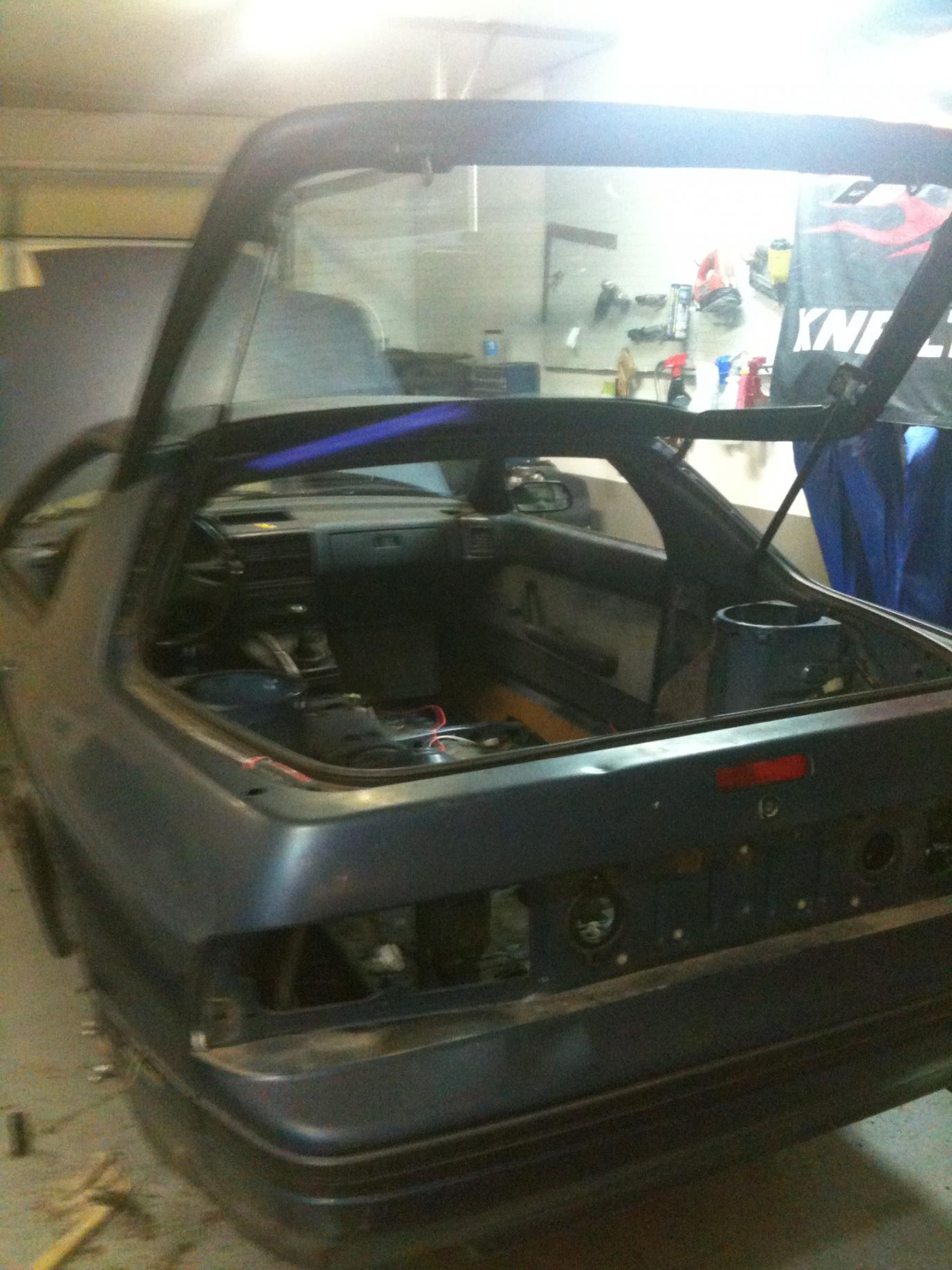

Demo Stage:

lownclean

NEW ENGINE TIME (HEDGE HOG 9000)









5 Lug Conversion

lownclean

Windshield Removal:

Glass In the vehicle with the left and right surroungs unbolted:



Close up on the drivers side with thebolt on moldings removed



Used a smaller flat head screw driver and a hammer to remove the upper molding.

lownclean

Once the upper molding was removed I used a high end ravor blade in a handle with a loop on it to cut all the remaining glue that was present. I then cut into the glue that was between the windshield and the body. I later went back with a body pin removal tool that looks like a screw driver with forked end on a 45 deg angle and worked it under the glass to seperate the pieces. I had to be careful because the glass already had chip/seperation from the previous owner.





Added tape the glass just incase it broke hopefully it would stay together.



And shes out!! (PS this took about 2 hours only because this is the first windshield ive ever removed)

PvillKnight7

iTrader: (16)

wait what why? Removed the glass?

lownclean

I have to be able to weld the gussets in for the cage to the A pillar

lownclean

No short cuts here ive built plenty of cars and this one is going to be built the right way the first time I dont want to have to go back later and do things over again. The cage will be painted with the car.

hioctane-dtc

iTrader: (1)

Nice work on it, keep the pictures coming!

jaggermouth

iTrader: (1)

Ive never built a cage but I have never seen one where they remove the windshield. Could you go more in to detail since I'd like to make one but do it right the first time as well.

Also, wow, I forgot how cluttered the stock engine bay is haha.

tuscanidream

iTrader: (6)

Awesome way to overhaul

lownclean

Further Demo: 1/30/2011

lownclean

If your looking for random parts let me know I might have them to sell to you keep in mind it started life as a 1987 RX7 Non Turbo,Manual Trans, 4 Lug:

MaczPayne

iTrader: (5)

Good going, nicely organized too!

mxrider914

iTrader: (3)

Looking good man. Check out my build thread, we got twins!

Hypertek

iTrader: (3)

change the thread title from "this may take a while" hahah you waste no time at all tearing it apart and staying organized!! lol

R.O.D

iTrader: (3)

^ i 2nd that lol

lownclean

Im a neat freak and if stuff is laying everywhere its hard for me to work so I bought a bunch of bins labeled them and will be selling all the take off stuff that I wont need. As for me taking awhile on the car i am moving quick with the dissassembly. The main thing is just to stay focused and every night when I come home I have to take time to remove or take apart something instead of sitting on the couch watching some stupid reality show or horrible american top gear.

Turbo20B

Subscribe

beefhole

iTrader: (29)

Talk about a tear down! Has to be the most extensive any of us have seen in a long while. And was that a chainsaw in the engine bay?

I like this thread. Looks like you know what you're doing. Looking forward to the rest

lownclean

Sorry guys its been alil while since ive posted anything but Ive been busy with alot of other stuff plus money flow has been tight! Well here is the most recent work done, I took out all the sound dedening using dry ice.
