What kind of injectors?

I was wondering what size of injectors are usually installed on the typical 20B motor? Are we talking about similar injector size?

Where can I read about this??
Reply
Old Oct 15, 2007 | 06:56 PM
  #2
David Hayes's Avatar
Lives on the Forum
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (6)

Joined: Jun 2002
Posts: 6,510
Likes: 188
From: FL
Stock - 550cc primaries and 850cc secondaries if I'm not mistaken. Most swap these out for 850 primaries and something much larger for secondaries, 1350cc or 1600ccs.
Reply
Old Oct 15, 2007 | 07:57 PM
  #3
Evil Aviator's Avatar
Rotorhead
Tenured Member 15 Years

Joined: Feb 2001
Posts: 9,136
Likes: 39
From: Charlottesville, Virginia, USA
Originally Posted by RotorFrank
I was wondering what size of injectors are usually installed on the typical 20B motor?
Stock 20B-REW:
Primary - 550cc/min side feed
Secondary - 550cc/min top feed

Originally Posted by RotorFrank
Where can I read about this??
Calculator here:
http://www.rceng.com/technical.aspx

If you aren't familiar with all the confusing numbers, just use the following and it will be close enough for government work.
Rotary Engine BSFC = .55 non-turbo, .64 turbo
Maximum Injector Duty Cycle = .80
System Fuel Pressure = 43.5

Originally Posted by David Hayes
Stock - 550cc primaries and 850cc secondaries if I'm not mistaken.
550/850 is stock on the 13B-REW, not the 20B-REW.
Reply
Old Oct 15, 2007 | 08:27 PM
  #4
kenn_chan's Avatar
Savanna Rx-7
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Jun 2004
Posts: 1,577
Likes: 12
From: yokosuka japan
sorry EA, but they are 550 top feed for primary and secondary, Ive had four of them...

kenn

Originally Posted by Evil Aviator
Stock 20B-REW:
Primary - 550cc/min side feed
Secondary - 550cc/min top feed


Calculator here:
http://www.rceng.com/technical.aspx

If you aren't familiar with all the confusing numbers, just use the following and it will be close enough for government work.
Rotary Engine BSFC = .55 non-turbo, .64 turbo
Maximum Injector Duty Cycle = .80
System Fuel Pressure = 43.5


550/850 is stock on the 13B-REW, not the 20B-REW.
Reply
Old Oct 15, 2007 | 11:28 PM
  #5
Evil Aviator's Avatar
Rotorhead
Tenured Member 15 Years

Joined: Feb 2001
Posts: 9,136
Likes: 39
From: Charlottesville, Virginia, USA
Originally Posted by kenn_chan
sorry EA, but they are 550 top feed for primary and secondary, Ive had four of them...

kenn

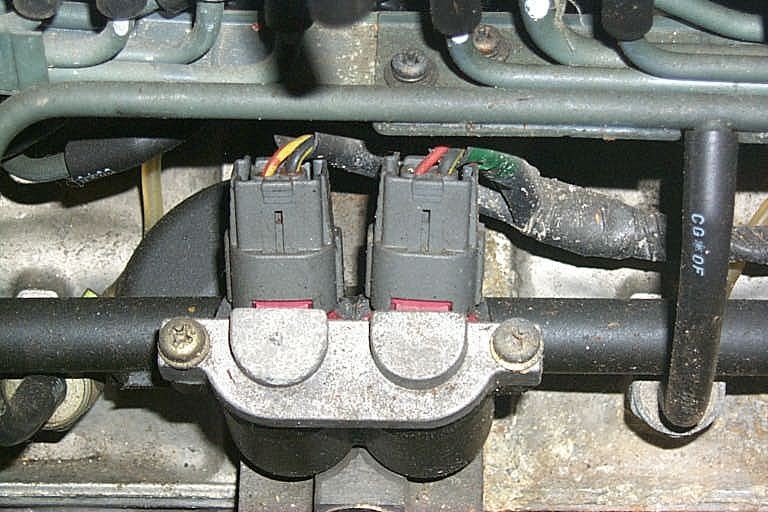

Those are some pretty funny looking top feeds.

Attached Thumbnails What kind of injectors?-p0001541.jpg
Reply
Old Oct 16, 2007 | 05:07 AM
  #6
RETed's Avatar
Lives on the Forum
Tenured Member 10 Years

Joined: Feb 2001
Posts: 26,664
Likes: 22
From: n
Originally Posted by kenn_chan
sorry EA, but they are 550 top feed for primary and secondary, Ive had four of them...
Uh, no.

Primaries are side feeds.
Secondary are top feeds.

And, I dunno what you're smoking, but the 20B comes with SIX fuel injectors...


-Ted
Reply
Old Dec 23, 2008 | 01:17 PM
  #7
TweakGames's Avatar
FD pro licensed driver
Tenured Member 10 Years
iTrader: (3)

Joined: Feb 2006
Posts: 2,897
Likes: 2
From: Renton/Bellevue/Seattle WA
Back from the dead.

Maybe someone will know, are the 13b-re and 20b primary injectors the same? I thought I saw somewhere that the RE was actually 540cc. They look very similar though.

Thanks
~Tweak
