The engine is finally in the car. I have a lot of work to do. It's in "for now" so I can measure and mock everything up. I am almost done paying off some bills, and when I do I can start buying stuff for the car again. for now I'm going to do the "free" stuff. Free meaning anything I can do on my own on my day off.



I decided I want to try and keep the A/C and power steering in the FC. That's not a problem except by doing so it makes intercooler piping tricky, especially when you want to run piping on the larger side. I have the K2RD mounts, and although K2RD says it does not fit, I am likely going to use the FD accessories bolted onto the 20B front cover. The 20B accessories are more compact and leave a lot more room for piping and suck in the FC engine bay. The drawbacks are that I need to relocate the radiator and AC condenser, and also that I might need to block off the hood scoop. The reason I need to do all that stuff is because the FD accessories and pulleys are about an inch and a half more forward than the FC accessories. This means that the main pulley would hit (actually, go through) the Griffin radiator I have, and the alternator, by being more forward, now definitely hits the hood as the slope of the hood is lower in the forward position.

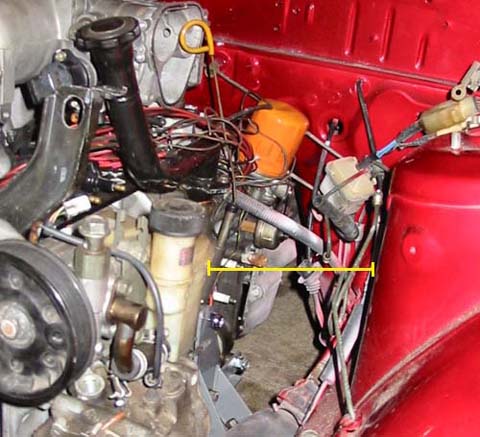

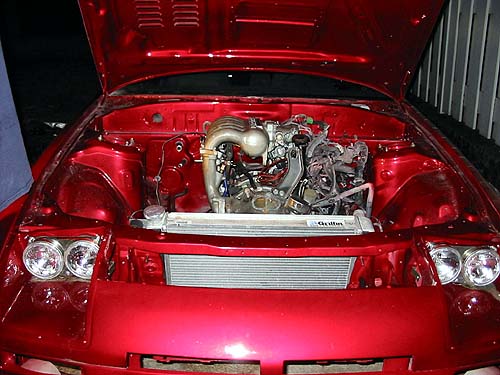

There isn't really a sense of scale in the photo, but I tried to mark how much more room there is with the FD power steering. Yes, by the way, I know I will need to make new lines, but oh well. New lines are a drop in the bucket compared to the overall cost of a 20B.

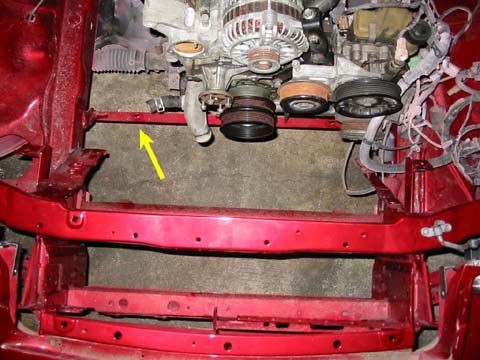

Here's a shot from above. The engine with the FD accessores is very far forward. That little bar that the yellow arrow is pointing to is the base where I had previously mounted my Griffin radiator. I pointed that out to illustrate where the bottom of my radiator used to extend to. I know I can get it to work if I mount my radiator vertically, but I it will take some cutting.

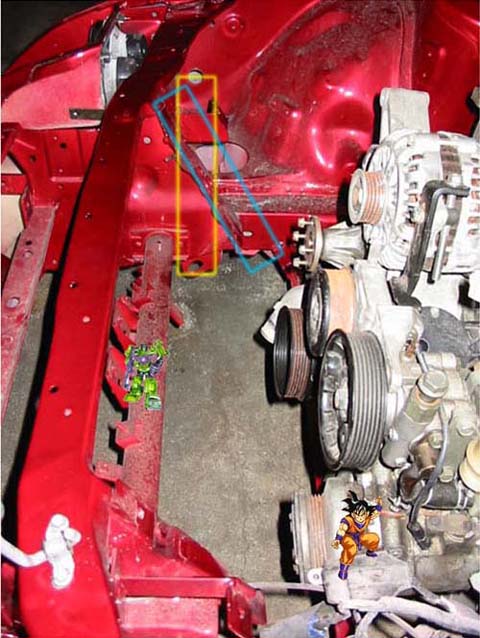

Here's another shot of the front, from the side this time. The blue rectagle is the old orientation of the radiator. The yellow rectangle is what I'd like to do with it. This still poses a problem though - by cutting off the old mounting brackets, I also cut out the AC condenser brackets. Mounting the AC condenser in front of the radiator, vertically is going to be tough, because it will either hit the hood latch on top (kind of non-negotiable...I'm not going to use only hood pins for the hood.) or it will hit the tubular cross bar on the bottom. (Marked by my favorite Decepticon, Devastator. )

Right now, ground clearance permitting, I think the best solution would be to cut out the tubular crossbar and weld in some box steel that will serve double duty - it'll put some strength back into the front and also mount the AC condenser.

By the way, that's NOT a FD AC compressor (marked by Goku). I don't have one yet, so I dug around and found something similar and bolted it in place with 1 bolt just to get the general feel for spacing.



looks good. have you thought about using the fc ac/ps? i think it might be easier to fit

mike



? I already mentioned why I wasn't using the FC PS and AC...



you can use the fc pump on the fd bracket. the fd pump will not work with an fc rack. your car looks sweet btw

mike



Thanks. Why won't the FD pump work with the FC rack? I already know I need to make new lines, but I'm not worried about that...



As expected, the FD alternator hit the hood, stopping it from closing. However, it manages to hit the hood in a very convenient place - the center of the fiberglass hood scoop. I cut my spare hood scoop to allow the alternator to peek through, thus allowing the hood to close. Next, I'm going to block off the front of the hood scoop. It'll look clean when I'm finished, I think.

By the way, I figured out the power steering rack thing.



.

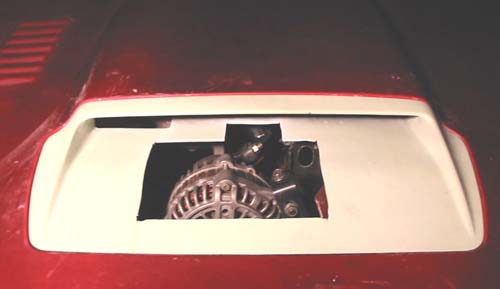

Pic of the hood scoop after the FD alternator was installed. Yeah, I know the FC or the 20B alternator clears the hood, but I'm really set on using the FD stuff
