Did you guys do all the polishing as well? 5k is a hell of a deal for all that work.
Motor looks beautiful. Which turbo did you guys go with? Who made the manifold?

Really makes me want to keep my car and go polish everything.



What kinda e-fan are you running on the Koyo?



I running the stock fans and having trouble with the temps creeping up in stop and go traffic. Do you have something better?

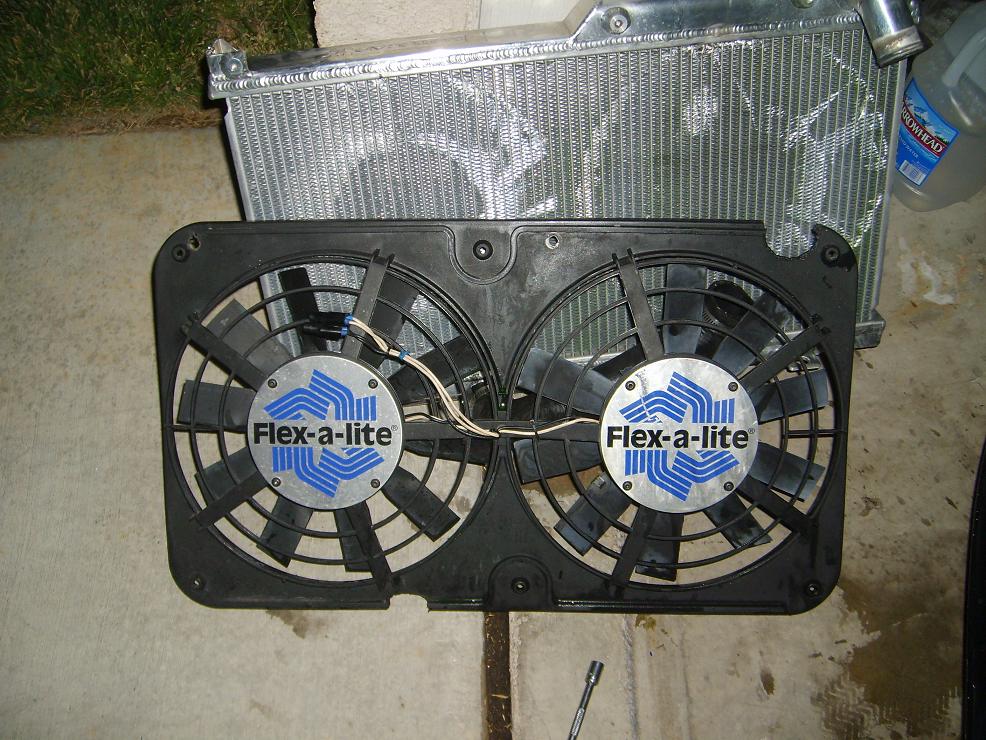

I'm running a dual flex-a-lite fan setup. No cooling probs but my fan hit my koyo the other day.. will have it all fixed this weeknd. Justy was wondering what fan you was running...



I'm using '99+ spec fans w/o issues. I tried Flex-a-lite slim line fans previously and it ran warmer but never overheated.



You ever try this flex-a-lite? Just wondering... It's what i got and looking for a better one..


http://store.summitracing.com/partde...5&autoview=sku



Are the 99+ spec ones beter than regular FD fans?



You need to duct and seal that radiator in order to help that situation.

Here is a pic of something i rigged up in my garage.
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/my-radiator-fmic-ducting-mini-project-651168/
Be kind. It was my first time every working with metal and all I have is crappy hand tools.

I also used the same thin metal sheet to create a little ducting/sealing under the radiator to seal off 2" worth of space between the bottom of the rad and the undertray. These 2 things alone helped a lot.

What also helped is I opened up the section between the lip and the bottom of the bumper so that I could get airflow under the FMIC to the radiator. I just got longer bolts and cut up some 3/8" rubber hose to use as spacers. CCarlissi had some pics and temp comparisons either here or on nopistons.


Max Cooper had a thread from his R85 single turbo install where he had a real fabricator do serious ducting/sealing. Might want to search for that.

Overall the fans can only move whatever air is fed to it. W/o any ducting, all you are doing is recycling the very hot air in the engine bay.



Jason, do you have any updates on the car?

Also, how did you use a greddy elbow on the car? Did you make a flange/adaptor for the elbow or did you use a 13b throttle body?

What intercooler did you guys use? Greddy 3-row or custom?

Thanks in advance

Jackson



I am also impressed that you didn't have to utilize a custom T-stat housing.

Nice build!

Jackson



nice work. what are the goals?



The car is here now getting some intercooler piping work done. We are rerouting it so the stock headlights will work. Should be done in about a week and then tune it.

As I recall we used an FD throttle body which let us use the Greddy elbow. The intercooler is a Greddy 2 row and we fabricated the piping.

Jason



This may seem a dumb question but is it not possible to mount the radiator in the stock location or better yet as a v mount like KS setup? Does the front of the 20b extend too far? Beautiful car



I have a question for you, Jason. I have the same set-up as you on my 3rd gen RX7: how would i get the speedometer and technometer to work? I used the microtech ecu on mine as well.



Very nice Jason.



Jason

what subframe are you using and how did it all drop in??? Does the subframe move the engine back or same location how does it handle???

Just got my 20b and workng on details now.

Thanks



Jason,

Is the cross member lost in your conversion? Or relocated? The piece that you guys removed just above the steering rack and where the A/C compressor is laying. I ask because I am really wanting to do a v mount with corresponding radiator. If the 20b doesn't disturb this crossmember then I can do my KS v mount with the 20b



Yes, the crossmember is gone. In fact, I will have to cut off the bracket on the AC side when I mount the compressor.



Nice job Jason. With the subframe you used, how did or does it effect the bump stops/steering problem I've heard you have unless you move the firewall?
TIA,
Ernie



i'm curious about the bump steer condition (if there is any) as well.



Finally got the car on the dyno. 10 lbs of boost was 468 RWHP and 15 lbs was 557 RWHP. Gotta love the 20b
I need to run it up to 8k because it will make more power.



nice!



nice job jason. looks good. nice #'s



Very nice. Did something happen to the boost at the end of the run? Seems to be dropping off. Also, do you have a plot of the A/F ratios for the run?



whew, I was afraid he would beat me!

ps.... you guys should have another dyno day, I need to tune mine again, but I need a better excuse to drive that far.
