Broke E-Shaft Today.

Old 11-02-08, 01:18 AM
  #1
Glutton for Punishment
10 Year Member
Thread Starter
iTrader: (1)

IronMdnX's Avatar

Join Date: Dec 2001
Location: MN
Posts: 722
Likes: 0
Received 0 Likes on 0 Posts
Angry Broke E-Shaft Today.

After feeling good with the tune the past month. I was all set for the dyno on Monday. But it was short lived. Earlier today while messing arround on the highway with my buddy Jess (1100 RWHP 97 Camaro). The e-shaft decided to let go. From looking at the datalog it happend at 6150 rpm at 25.5 psi in 3rd gear. We have done numerous runs with no issues. This motor has held up for 2 years of abouse after studding it. Last yeat running 24-25psi on race fuel and the this year on E85.

I just finished pulling apart the motor. All housing look good, I still need to check them for warp. I will to replace a rotor and a stationary gear from the preliminary inspection. I was happy to see virtually no wear on the housings. The Klotz Benol is doing it job premixed with e85.

Now to figure out what caused the failure. E-shaft flex, spun center bearing, or detination? I also will need to decide to go with an aftermarket or stock shaft again.

Here a pics

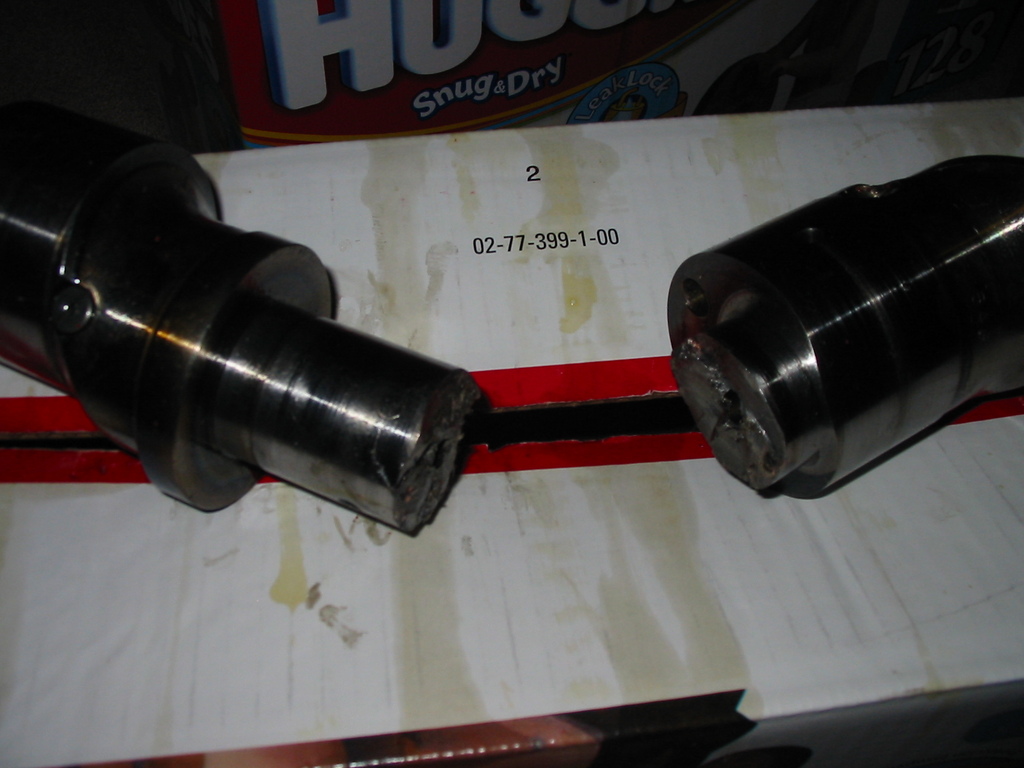

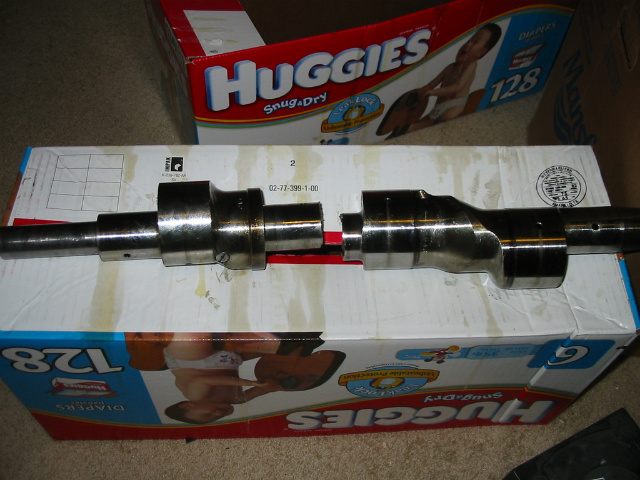

Attached Thumbnails Broke E-Shaft Today.-img_1511.jpg   Broke E-Shaft Today.-img_1510-1.jpg
IronMdnX is offline
Old 11-02-08, 01:42 AM
  #2
Lapping = Fapping
iTrader: (12)

Jeff20B's Avatar

Join Date: Aug 2001
Location: Near Seattle
Posts: 15,615
Received 36 Likes on 34 Posts
Do you see much evidence for a spun bearing? Check for all the signs.

Man, my condolences. Are you going to try a Jeff Bruce shaft next?
Jeff20B is offline
Old 11-02-08, 09:29 AM
  #3
not a drifter
10 Year Member
iTrader: (133)

87 t-66's Avatar

Join Date: Jun 2004
Location: Columbus, Ohio
Posts: 9,327
Likes: 0
Received 0 Likes on 0 Posts
wow.
87 t-66 is offline
Old 11-02-08, 09:45 AM
  #4
Banned. I got OWNED!!!
iTrader: (256)

Japan2LA's Avatar

Join Date: Mar 2005
Location: Los Angeles CA.
Posts: 11,092
Likes: 0
Received 0 Likes on 0 Posts
Was the rotating assembly balanced?
Lightweight rotors?


It matters...
Japan2LA is offline
Old 11-02-08, 10:23 AM
  #5
Back at it again!!
iTrader: (3)

2Lucky2tha7's Avatar

Join Date: Jun 2003
Location: Western Colorado
Posts: 1,318
Likes: 0
Received 0 Likes on 0 Posts
was it a stock 3rd gen e-shaft?
2Lucky2tha7 is offline
Old 11-02-08, 06:03 PM
  #6
malignant narcissist
iTrader: (2)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 9,525
Received 61 Likes on 57 Posts
um ... 20B section ...
diabolical1 is offline
Old 11-02-08, 08:41 PM
  #7
Back at it again!!
iTrader: (3)

2Lucky2tha7's Avatar

Join Date: Jun 2003
Location: Western Colorado
Posts: 1,318
Likes: 0
Received 0 Likes on 0 Posts
sorry, I wasn't paying attention when I clicked on the thread earlier on as it was on the main page...
2Lucky2tha7 is offline
Old 11-03-08, 08:40 AM
  #8
Glutton for Punishment
10 Year Member
Thread Starter
iTrader: (1)

IronMdnX's Avatar

Join Date: Dec 2001
Location: MN
Posts: 722
Likes: 0
Received 0 Likes on 0 Posts
The front portion of the eshaft was siezed to the center bearing. I had to use a press to remove it. The front stationary gear did have a few damaged teeth. I'm not sure if it ws part of the cause or a result of the failure. I was able to check the housings last night there is no damage or warp, thank god.

The assemby was not balanced. The new one will be!!
IronMdnX is offline
Old 11-03-08, 09:23 AM
  #9
Senior Member
10 Year Member
iTrader: (2)

Join Date: Oct 2001
Location: Baltimore
Posts: 678
Likes: 0
Received 0 Likes on 0 Posts
would you mind taking a good detailed picture of the surfaces of the break (macro if you've got it)? I'd like to see how the fracture propogated across the surface
FCNAred is offline
Old 11-03-08, 10:09 AM
  #10
Glutton for Punishment
10 Year Member
Thread Starter
iTrader: (1)

IronMdnX's Avatar

Join Date: Dec 2001
Location: MN
Posts: 722
Likes: 0
Received 0 Likes on 0 Posts
Pics of break
the smooth spots center of the left piece was caused from the press.




IronMdnX is offline
Old 11-03-08, 01:28 PM
  #11
****** of disaster
10 Year Member
iTrader: (1)

thetech's Avatar

Join Date: Aug 2001
Location: Santa Monica, CA
Posts: 1,115
Likes: 0
Received 0 Likes on 0 Posts
Wow. Condolences! It's possibilities like this that made me switch back to a 2rotor for racing purposes
thetech is offline
Old 11-03-08, 02:38 PM
  #12
Rotary Enthusiast

felix_is_alive's Avatar

Join Date: Jan 2003
Location: planet earth
Posts: 1,349
Likes: 0
Received 0 Likes on 0 Posts
damn man , just as i was following youre whole gto tranny upgrade , damn
any ideas of what whp you where pushing ?
some people argue that the limit for the shat is around 700 hp , i beg to differ though
or maybe just lots of street abuse?
felix_is_alive is offline
Old 11-03-08, 03:52 PM
  #13
Glutton for Punishment
10 Year Member
Thread Starter
iTrader: (1)

IronMdnX's Avatar

Join Date: Dec 2001
Location: MN
Posts: 722
Likes: 0
Received 0 Likes on 0 Posts
I was going to find out on the dyno today. I was shooting for 800+rwhp with this turbo which is maxed out. I can't quite keep up with Jess, He pulls away from me gradually. He keeps tellimg me to go to a 88 or 91mm, he's running a 94mm on a 383.

I am happy with the performance now, just neet to get it reliable. Drivability is great except for the clutch. I'm looking at carbon setups that can be slipped for smoother starts on the street. Tranny is holding up fine. Jess is still running a t-56 at 1100rwhp with a viper output shaft. We both powershift at 8000+, you can tell the GTO box is smoother shifting vs. the camaro box.
IronMdnX is offline
Old 11-03-08, 03:58 PM
  #14
Glutton for Punishment
10 Year Member
Thread Starter
iTrader: (1)

IronMdnX's Avatar

Join Date: Dec 2001
Location: MN
Posts: 722
Likes: 0
Received 0 Likes on 0 Posts
One Idea that was brought up is that the last tank of gas was winter blend E85 which is only 70+% ethonal vs 83+%. I only added 8 gallons that morning to top off the tank. The tank was down to about a 30% when it happend. So with the fuel sloshing back under hard acceleration there is a slight chance dropping fuel pressure. But the afr's in the log look fine. 10.9-11.2 under full boost.
Who knows, it was something to chew on.
IronMdnX is offline
Old 11-03-08, 04:58 PM
  #15
On flats
10 Year Member
iTrader: (29)

calculon's Avatar

Join Date: Oct 2004
Location: Albuquerque
Posts: 1,370
Likes: 0
Received 0 Likes on 0 Posts
Any potential that the place that made your adapter plate misaligned the input shaft? It seems like a stretch, but I could imagine the resulting stress on the flywheel, as subtle as it would have to be to go unnoticed, fatiguing the shaft over enough time.
calculon is offline
Old 11-03-08, 08:33 PM
  #16
Glutton for Punishment
10 Year Member
Thread Starter
iTrader: (1)

IronMdnX's Avatar

Join Date: Dec 2001
Location: MN
Posts: 722
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by calculon View Post
Any potential that the place that made your adapter plate misaligned the input shaft? It seems like a stretch, but I could imagine the resulting stress on the flywheel, as subtle as it would have to be to go unnoticed, fatiguing the shaft over enough time.
If it was misaligned, I think it would affect the input shaft bearing or pilot bearing more than the E-shaft. Both are in good condition.
IronMdnX is offline
Old 11-03-08, 10:12 PM
  #17
On flats
10 Year Member
iTrader: (29)

calculon's Avatar

Join Date: Oct 2004
Location: Albuquerque
Posts: 1,370
Likes: 0
Received 0 Likes on 0 Posts
Definitely. . . the bearings would be destroyed completely.

Were you data logging? If the ethanol content dropped, the mixture should've richened, but not that significantly. . . hmmmm.

Hope you get to the bottom of it. Any thoughts as to which route you're going to go? OEM replacement? GURU? MPS?
calculon is offline
Old 11-03-08, 10:28 PM
  #18
Saiga-12 Power!
10 Year Member
iTrader: (4)

Juiceh's Avatar

Join Date: Oct 2004
Location: N of Chicago
Posts: 4,384
Likes: 0
Received 0 Likes on 0 Posts
What letter code eshaft was this?
Juiceh is offline
Old 11-04-08, 02:19 PM
  #19
Rotary Enthusiast

felix_is_alive's Avatar

Join Date: Jan 2003
Location: planet earth
Posts: 1,349
Likes: 0
Received 0 Likes on 0 Posts
i dont think it could be the adapter plate , it would have fucked up some time ago , you got some time already hogging it right ?
maybe just stress ??
felix_is_alive is offline
Old 11-04-08, 06:32 PM
  #20
Glutton for Punishment
10 Year Member
Thread Starter
iTrader: (1)

IronMdnX's Avatar

Join Date: Dec 2001
Location: MN
Posts: 722
Likes: 0
Received 0 Likes on 0 Posts
The Shaft is from a B Series. The only marking on it is 746, that I can remember. I just flew back to CA this morning for 2 weeks.

I have emails back from Xtreme Rotary and Japan2LA win pricing.

Does someone have a contact to purchace the Jeff Bruce shaft?
And a recomended shops to lighten the rotors then balance the assembly?

I have all winter to get it fixed. That is the only plus about breaking at this time of the year.
IronMdnX is offline
Old 11-04-08, 09:39 PM
  #21
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,707
Likes: 0
Received 10 Likes on 8 Posts
Shouldn't that e-shaft have a letter as well? Hmm maybe someone switched it? Either way, since you have a lofty goal, I would just pony up for the aftermarket e-shaft. Glad your having great results with the GTO tranny. That is something I will most definetly do in the future.

Last edited by t-von; 11-04-08 at 09:41 PM.
t-von is offline
Old 11-05-08, 05:34 PM
  #22
Glutton for Punishment
10 Year Member
Thread Starter
iTrader: (1)

IronMdnX's Avatar

Join Date: Dec 2001
Location: MN
Posts: 722
Likes: 0
Received 0 Likes on 0 Posts
The motor had all matching #'s on the housings when i bought it. I am sure the motor was never opened before. I still have all the original housings but they need to lapped. When I studded the motor I was came accross a good deal on all 4 new in box side housings for $1250.
IronMdnX is offline
Old 11-06-08, 04:39 AM
  #23
Rotary Enthusiast

felix_is_alive's Avatar

Join Date: Jan 2003
Location: planet earth
Posts: 1,349
Likes: 0
Received 0 Likes on 0 Posts
^--nice!!
felix_is_alive is offline
Old 11-07-08, 04:21 PM
  #24
Sponsor
RX7Club Vendor
iTrader: (9)

FDNewbie's Avatar

Join Date: Jul 2003
Location: Tampa, FL
Posts: 13,199
Likes: 0
Received 1 Like on 1 Post
Originally Posted by IronMdnX View Post
The Shaft is from a B Series. The only marking on it is 746, that I can remember. I just flew back to CA this morning for 2 weeks.
That's part of your problem. C & D series had upgraded shafts and backing plates for a reason; earlier shafts were prone to flexing and eventually snapping.

Does someone have a contact to purchace the Jeff Bruce shaft?
You mean the 3-piece shaft? Yea, I can get it for you.

And a recomended shops to lighten the rotors then balance the assembly?
Yep; I work w/ the same guy who balances the rotating assembly for RacingBeat. You'd have to send the entire assembly, and if you wanna go all out, include the clutch, flywheel, & counterweight too.

~Ramy
FDNewbie is offline
Old 11-08-08, 12:55 AM
  #25
Full Member
10 Year Member

Join Date: Apr 2002
Location: New Zealand
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
I can sort the shaft from here if you like...

And I have never seen a letter on a shaft yet... just numbers & they dont relate to the number on the block either...
mad20b is offline
