Wiper Linkage Assembly
05-10-10, 07:39 PM
#1
Junior Member
Thread Starter
Join Date: Dec 2009
Location: Central Washington
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
Wiper Linkage Assembly
When I rebuilt the wiper motor & linkage, I obliterated the orientation mark I had made on the motor shaft/linkage tab.
The Black Dragon catalog diagram shows everything in the exploded view - except the linkage tab.
Can someone post a pic of the assembled wiper motor/linkage to help me with tab orientation - or just tell me which way it points when in the parked position.
TIA
The Black Dragon catalog diagram shows everything in the exploded view - except the linkage tab.
Can someone post a pic of the assembled wiper motor/linkage to help me with tab orientation - or just tell me which way it points when in the parked position.
TIA
05-11-10, 10:16 AM
#4
I've got a bunch of photos at home from my last rebuild, but here's what I have up on the P-bukkit at the moment:

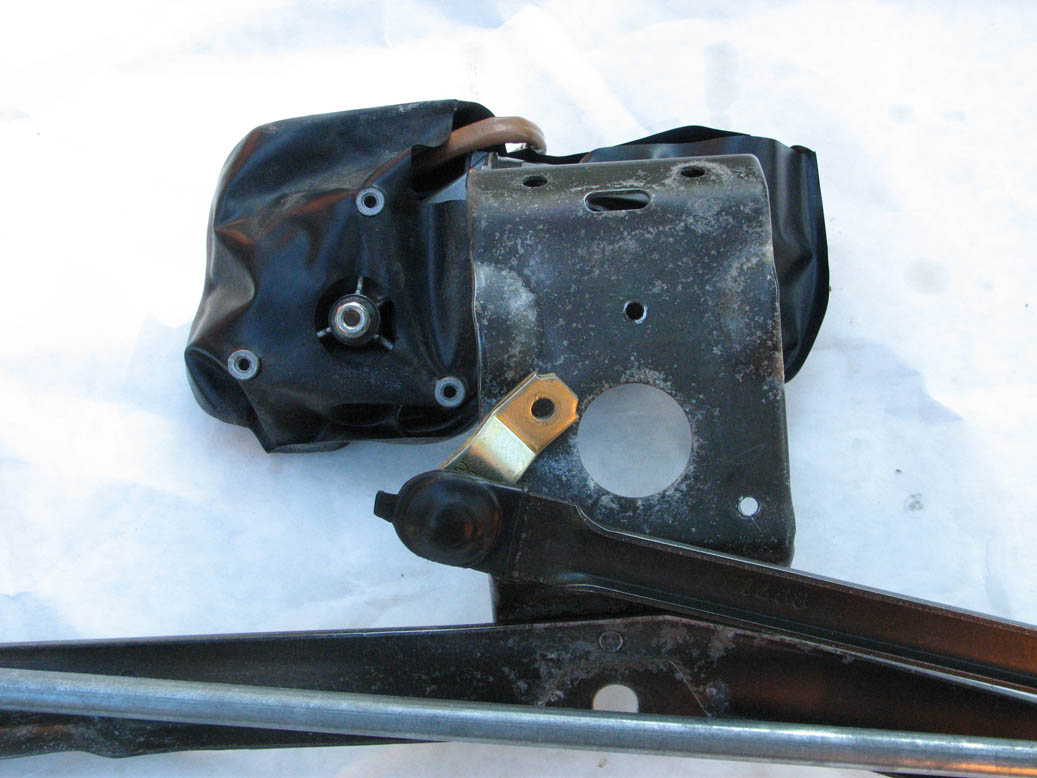

Before disassembly - - my "index" pic.

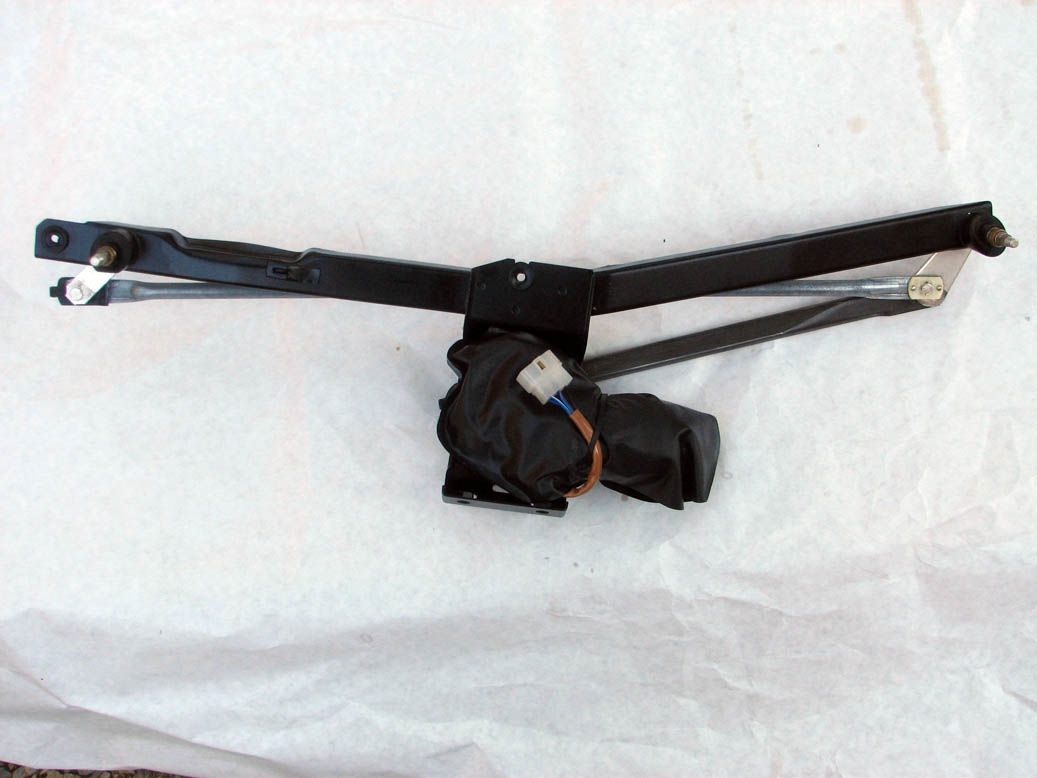

Finished:
(Ignore my non-stock wire connectors; had to improvise when the original ones turned to dust years ago.)
Motor re-assembly:
Keep in mind, if you're worried about getting the wipers back in the right place; after you reinstall the rack in the car, just run it for a few seconds, then turn it off normally before you put the blades on. the motor will stop at the appropriate place automatically, and you just install the blades in the "off" position.
Before disassembly - - my "index" pic.
Finished:
(Ignore my non-stock wire connectors; had to improvise when the original ones turned to dust years ago.)
Motor re-assembly:
Keep in mind, if you're worried about getting the wipers back in the right place; after you reinstall the rack in the car, just run it for a few seconds, then turn it off normally before you put the blades on. the motor will stop at the appropriate place automatically, and you just install the blades in the "off" position.
Glen you make even wiper guts look purdy.....!
