1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

will fc seats bolt into an fb?

Thread Tools

Search this Thread

Old 02-01-08, 03:15 PM
  #1
Junior Member

Thread Starter

elbee7's Avatar

Join Date: Dec 2007
Location: Thornton Co.
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
will fc seats bolt into an fb?

I have an 84 with the low back seats and I would like a more comphy stock type seat any idea's ?
Old 02-01-08, 04:36 PM
  #2
Senior Member

iTrader: (1)

StealthGXL's Avatar

Join Date: Nov 2003
Location: Boston, MA
Posts: 564
Likes: 0
Received 0 Likes on 0 Posts
I have gray cloth TII seats in my 83

Some owners on here just use the FB rails on the TII seats, but I opted to modify the FC rails a little (just had to slot one of the holes on the driver's side, I think it was, to get it to line up correctly)

The seats are actually out of my car at the moment, I'll snap a picture or two for you when I get the chance.
Old 02-01-08, 04:45 PM
  #3
Stu-Tron Get Yo Groove On

iTrader: (4)

Jeezus's Avatar

Join Date: Nov 2006
Location: Huntsville AL
Posts: 8,405
Received 9 Likes on 9 Posts
Also interested in the pictures!
Old 02-01-08, 04:49 PM
  #4
My 7 is my girlfriend.

iTrader: (5)

orion84gsl's Avatar

Join Date: Feb 2006
Location: London, Ontario, Canada
Posts: 3,162
Likes: 0
Received 1 Like on 1 Post
So basically any aftermarket seat that will bolt into an FC should bolt into an SA/FB?
Old 02-01-08, 05:13 PM
  #5
Senior Member

iTrader: (1)

StealthGXL's Avatar

Join Date: Nov 2003
Location: Boston, MA
Posts: 564
Likes: 0
Received 0 Likes on 0 Posts
Good condition TII seat (1 of 2 pictured, of course )




This is the only modification I had to make, otherwise the FC rails bolted right in (passenger side needed no modification). Just slot the right front hole on the drivers seat and you are good to go




In case you are not familliar with the FC rails, they are a little beefier and I also like the fact that both rails lock. On the FB rails only one side locks..

Old 02-01-08, 05:16 PM
  #6
CPS Motorsport

iTrader: (1)

justint5387's Avatar

Join Date: Oct 2005
Location: Fremont, CA
Posts: 1,358
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by orion84gsl
So basically any aftermarket seat that will bolt into an FC should bolt into an SA/FB?
I don't think so, because aftermarket seat uses different mount and slider.
Old 02-01-08, 07:48 PM
  #7
We're All Fkd..

iTrader: (16)

AcidAngel7477's Avatar

Join Date: Nov 2005
Location: Whittier,CA
Posts: 8,722
Received 2 Likes on 2 Posts
just take the fb rail's and bolt them up to the fc seat's..they should fit..

:AA:
Old 02-02-08, 01:15 PM
  #8
Junior Member

Thread Starter

elbee7's Avatar

Join Date: Dec 2007
Location: Thornton Co.
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Thank's that was what I wanted to know.
Old 02-02-08, 02:49 PM
  #9
Brap, Brap, Ole!


mikewoodkozar's Avatar

Join Date: Apr 2005
Location: kalamazoo, mi
Posts: 1,461
Likes: 0
Received 0 Likes on 0 Posts
I wish those TII seats came in black cloth
Old 02-02-08, 05:18 PM
  #10
Administrator

iTrader: (8)

mar3's Avatar

Join Date: Nov 1998
Location: So. Arlington, TX!!!
Posts: 12,974
Likes: 0
Received 59 Likes on 36 Posts
If that's an FC seat, then that's what I have in my '83...I'll dig up some pics when I get home or take new ones if they're on the old dead PC...


Old 02-02-08, 06:18 PM
  #11
Old Fart Young at Heart

iTrader: (6)

trochoid's Avatar

Join Date: Apr 2004
Location: St Joe MO
Posts: 15,145
Likes: 0
Received 7 Likes on 7 Posts
The GTUs, 88, had the same seats as the TIIs, 3rd gen and RX8 seats will also bolt in, not sure if the rails need modded.
Old 02-03-08, 01:42 PM
  #12
Administrator

iTrader: (8)

mar3's Avatar

Join Date: Nov 1998
Location: So. Arlington, TX!!!
Posts: 12,974
Likes: 0
Received 59 Likes on 36 Posts
RX-8 seats, too? It may be time for an upgrade once I get my 'tax rebate' check...the pics as promised...

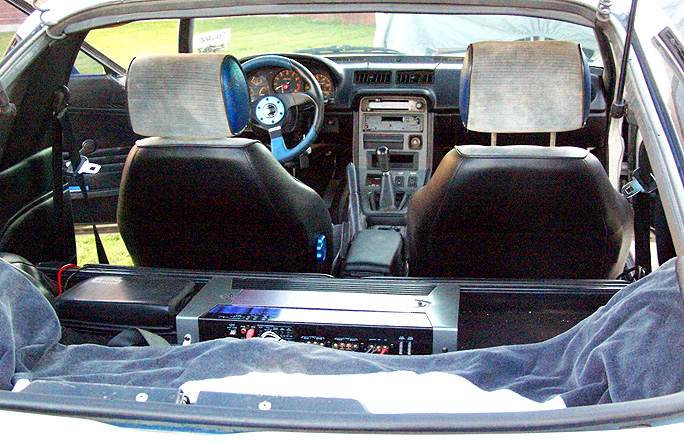

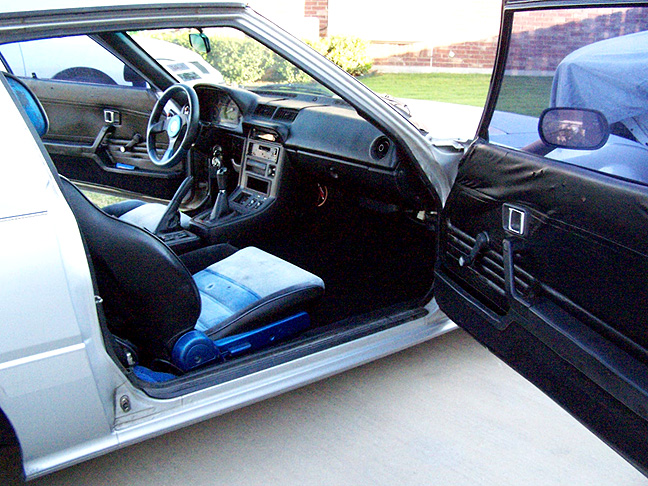

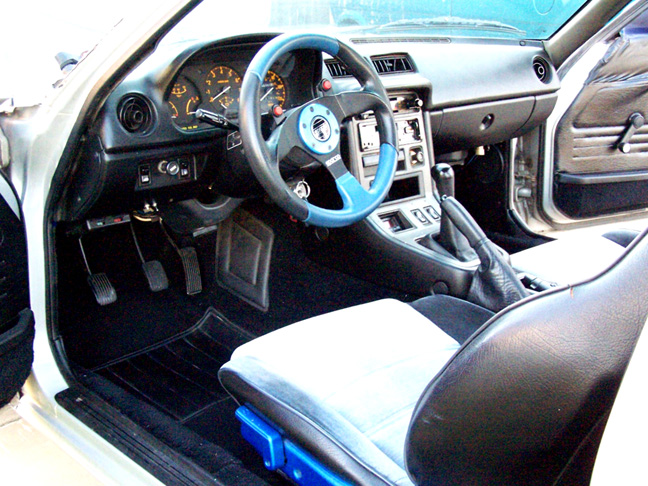

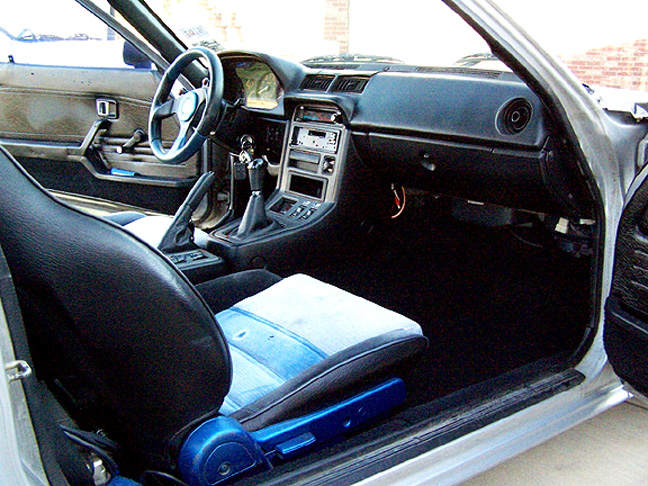

Attached Thumbnails will fc seats bolt into an fb?-interior-shot...pass-side2.jpg   will fc seats bolt into an fb?-interior-shot...pass-side1.jpg   will fc seats bolt into an fb?-interior-shot...drvr-side2.jpg   will fc seats bolt into an fb?-interior-shot...rear.jpg

Last edited by mar3; 02-03-08 at 01:56 PM.
Old 02-04-08, 07:38 PM
  #13
Junior Member

Thread Starter

elbee7's Avatar

Join Date: Dec 2007
Location: Thornton Co.
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
I really like the look of that Tll seat are they different than the regular fc seats?
Old 02-05-08, 11:13 AM
  #14
Administrator

iTrader: (8)

mar3's Avatar

Join Date: Nov 1998
Location: So. Arlington, TX!!!
Posts: 12,974
Likes: 0
Received 59 Likes on 36 Posts
What looks like holes in the fabric on the passenger seat is indentations and discoloration of the material from a kiddie seat. I'll have to restain the fabric once both of the kids are 50 lbs+ or 8 years old, the legal limits here in Texas where they can just sit in the seat without a booster or anything.

I can honestly say it's a lot better than the stock FB seat even the leather ones, examples of which are in my Parents '85 GSL. I have had a chance for direct comparisons in hard driving between the three types of seats. I can also say the TII seat is NOT enough seat for a road course or even a slalom run. It may have been the stock seat belts, but it seemed like a struggle to stay in the seat around long curves and any abrupt corner transitions...still, I love them since they only cost me $40 from a junkyard and $25 more in the pro vinyl dye spray and fabric color-change rattle cans.

As far as differences between FC seats, I couldn't say...these were actually clumsily attached to an FB already...it was one of those sad stories...guy spent every nickel restoring the car and modifying it a bit, fresh paint job and then the car gets totaled not too much later. He/she must have said to Hell with it all and screw rotaries because that car was a gold mine. Fresh black carpet, fresh black panels, perfect black dash (which I would end up destroying in the exact same manner as described above....), perfect black trim pieces like the A-pillars and the rear speaker covers...nice find you don't get handed to you often.



Old 02-05-08, 11:18 AM
  #15
Right near Malloy

iTrader: (28)

Pele's Avatar

Join Date: Dec 1999
Location: Behind a workbench, repairing FC Electronics.
Posts: 7,841
Received 510 Likes on 345 Posts
Originally Posted by justint5387
I don't think so, because aftermarket seat uses different mount and slider.
But the mount and slider will be sized up to fit the FC bolt pattern...

As shown above, slight ovaling of the bolt hole should make the FC pattern fit the FB.
Old 02-05-08, 11:38 AM
  #16
Nekurd


Druken's Avatar

Join Date: Feb 2006
Location: California
Posts: 1,129
Likes: 0
Received 0 Likes on 0 Posts
I'm going to be purchasing some Black/Black Leather Rx8 seats soon, and the write-ups for it increases the height of it by 2". I'm hoping that when I get them, I can somehow mount them a bit better, since it seems like I am taller than the original poster of the "How to" thread. If you guys are interested, I can try to document it so others can try to mount it the same, but I don't know if I can make it better than his though.
In the end I think getting TII seats are the easiest to install. They feel like bucket seats but more padded, kind of like a baseball glove that is just broken in. A real bucket seat feels like a thin old glove. I was going to get some nice TII seats but I like the fact that I can get heated seats in a car with no AC/Heater and it comes with the rotary emblem in the headrest. How can you not love that?
Old 02-05-08, 11:56 AM
  #17
Full Member


780rx7's Avatar

Join Date: Nov 2007
Location: Edmonton
Posts: 87
Likes: 0
Received 0 Likes on 0 Posts
speaking of heated seats, try this link. They are easy to install in any rexer seats.

www.heatedseatkits.com
Old 02-05-08, 12:02 PM
  #18
Nekurd


Druken's Avatar

Join Date: Feb 2006
Location: California
Posts: 1,129
Likes: 0
Received 0 Likes on 0 Posts
^^ Thats pretty cool.
Old 02-05-08, 12:12 PM
  #19
Senior Member

iTrader: (1)

StealthGXL's Avatar

Join Date: Nov 2003
Location: Boston, MA
Posts: 564
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by mar3
I can also say the TII seat is NOT enough seat for a road course or even a slalom run. It may have been the stock seat belts, but it seemed like a struggle to stay in the seat around long curves and any abrupt corner transitions...
I'll agree with that.

Still an improvement over stock, definitely worth it if you are not interested in racing seats.
