S-S - Not trying to be pedantic, but doesn't it say ET14 on the wheel? Maybe they are marked wrong, but if I am seeing that right it indicates 14mm offset not 20mm. The clearances in your pictures do look a little bigger than I have seen with Konig Rewind that I think are ET19 or 20.
Whatever offset they are, they are awesome looking wheels.
Setec - For what it is worth, the 205-60-13 diameter is about 22.7" and the 205-50-15 is about 23.1, so basically the same. Might start with lowering springs (~$300) first to close the fender/tire gap and save the expense of tires and wheels for later fine tuning.
Carl
Whatever offset they are, they are awesome looking wheels.
Setec - For what it is worth, the 205-60-13 diameter is about 22.7" and the 205-50-15 is about 23.1, so basically the same. Might start with lowering springs (~$300) first to close the fender/tire gap and save the expense of tires and wheels for later fine tuning.
Carl
#27
Senior Member
The following users liked this post:
Setec_fl (10-04-23)
#28
Went through the same thing. Wheels and springs in one go. Wasnt sure until I had them installed that they would work, so would love to get you some direct real world dimensions. Hang on a day though. Carl noticed an offset stamp on my wheel photo that does not match measured offset…. Plus the offset table on VTO website as a third different number that doesn’t march measurement or stamp! Will measure again and report back tomorrow.
and it occurred to me last night. The front spoiler is 6.5 inches off the ground. This will drop it another inch? Wondering if that is going to be hell to deal with
#29

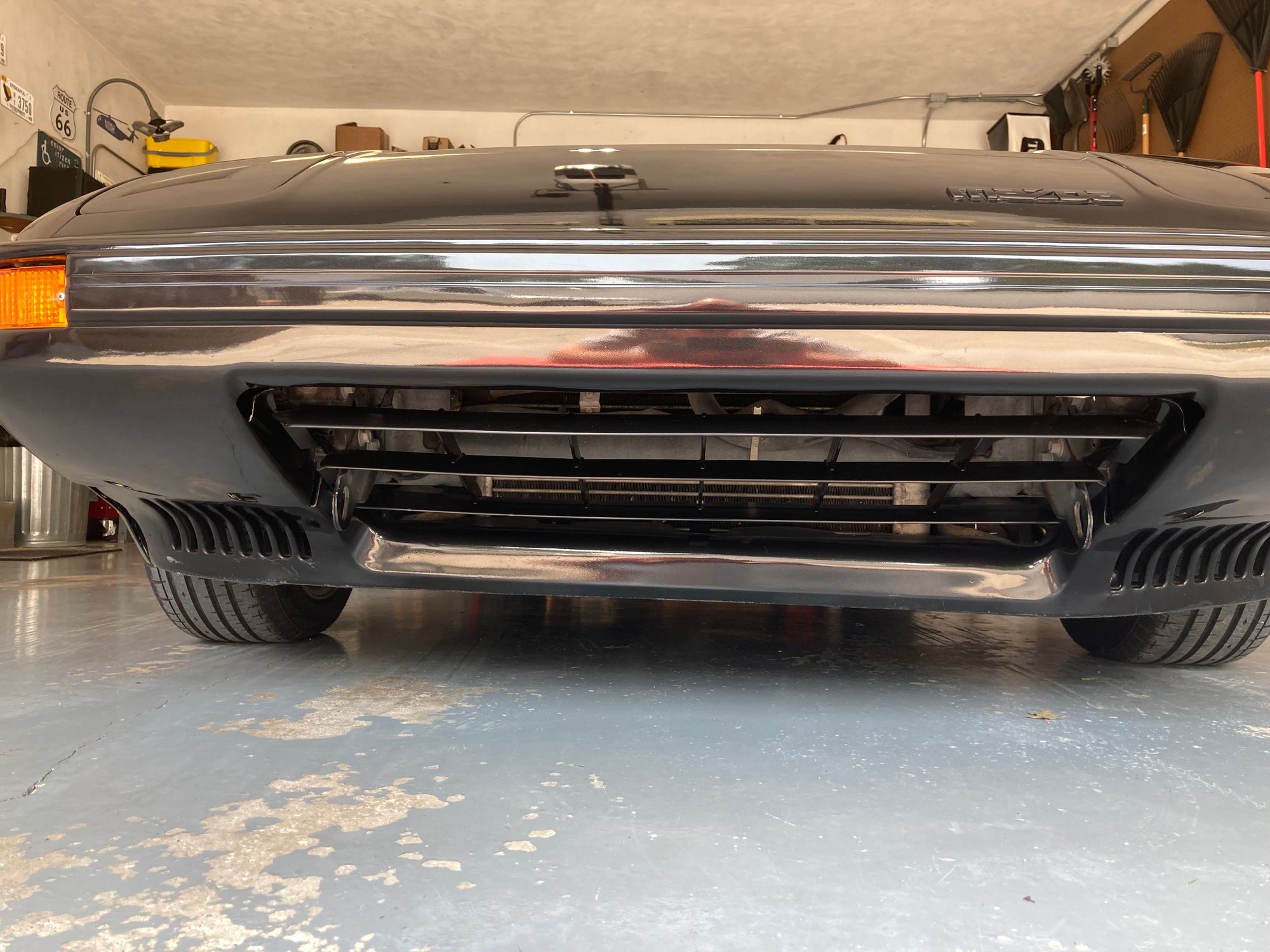

Here is the current clearance on the car.
do you guys think those racebeat springs with new shocks and the above rim/tire combo will work?
I also saw they have a suspension package that has new sway bars.
https://www.racingbeat.com/RX7-1975-...kage79-85.html
or just 2 of these
https://www.racingbeat.com/RX7-1975-...cks/14319.html
and this for the rear
https://www.racingbeat.com/RX7-1975-...cks/14321.html
and the springs
https://www.racingbeat.com/RX7-1975-...ets/14080.html
and I realized I kind of hijacked this thread. Wasn’t my intention.
do you guys think those racebeat springs with new shocks and the above rim/tire combo will work?
I also saw they have a suspension package that has new sway bars.
https://www.racingbeat.com/RX7-1975-...kage79-85.html
or just 2 of these
https://www.racingbeat.com/RX7-1975-...cks/14319.html
and this for the rear
https://www.racingbeat.com/RX7-1975-...cks/14321.html
and the springs
https://www.racingbeat.com/RX7-1975-...ets/14080.html
and I realized I kind of hijacked this thread. Wasn’t my intention.
#30
Rotary Enthusiast
iTrader: (2)
I think S-S has the RB springs and VTO wheels (basically the same dimensions as Konig Rewind) so his pictures should be pretty representative of what to expect visually. Unless you are racing (wheel to wheel or autocross) I personally don't think there is much point in changing the swaybars. I am sure plenty of people would not agree with that. Just my opinion. The struts are worth doing, if the ones you have are still original. I think the RB springs give a nice drop and would be fun autocrossing or tracking the car.
Carl
Carl
The following users liked this post:
Setec_fl (10-04-23)
#31
Senior Member
Confirming after double checking the offset of my wheels….they are indeed 20mm offset despite the 12 stamp.

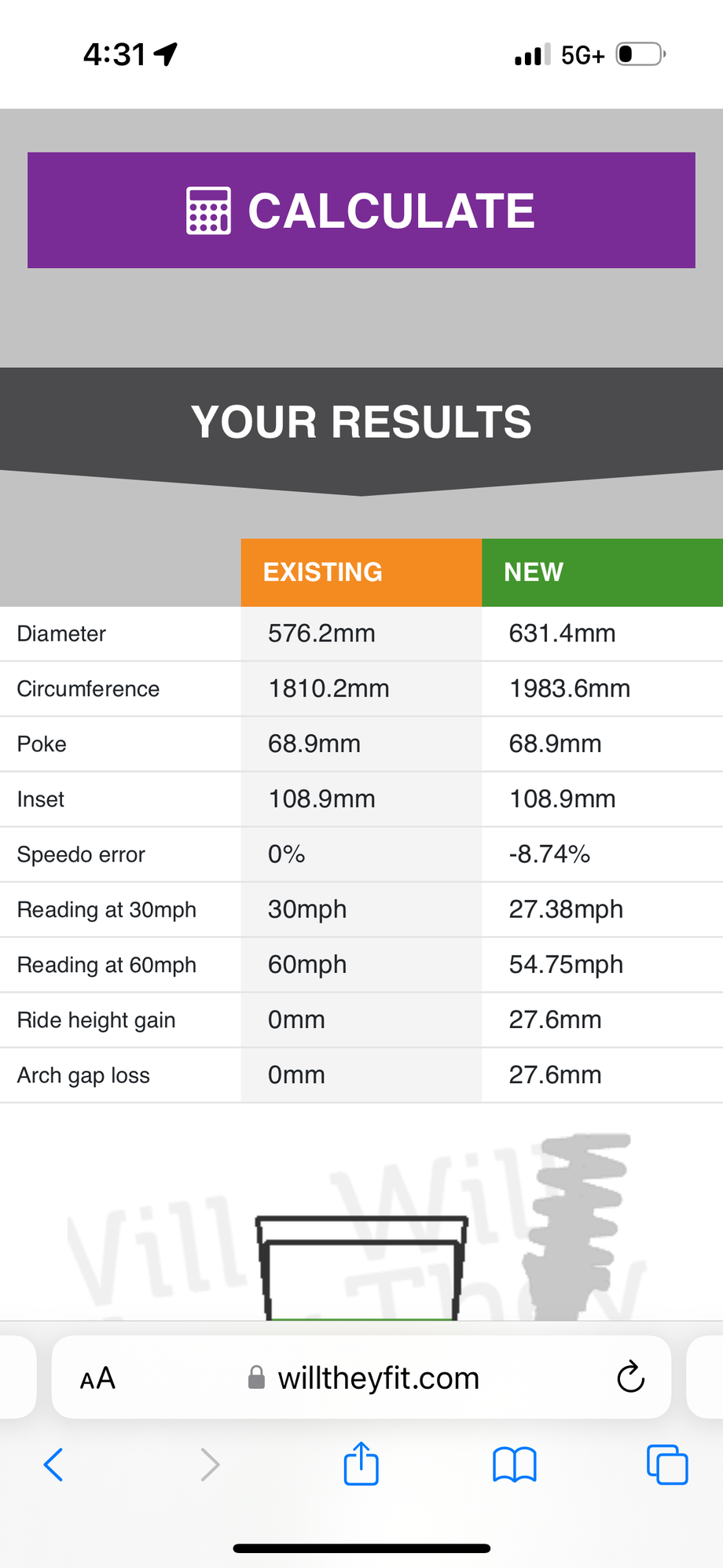

Conclusion is when running tire and wheel sizes through WillItFit.com, I would not let your resulting diameter exceed 586 (well maybe you could push it a bit there), and would keep the resulting inset below 109mm. Bigger diameters will hit the front inside edge of the rear well at full lock, larger offsets will rub the springs on the front.

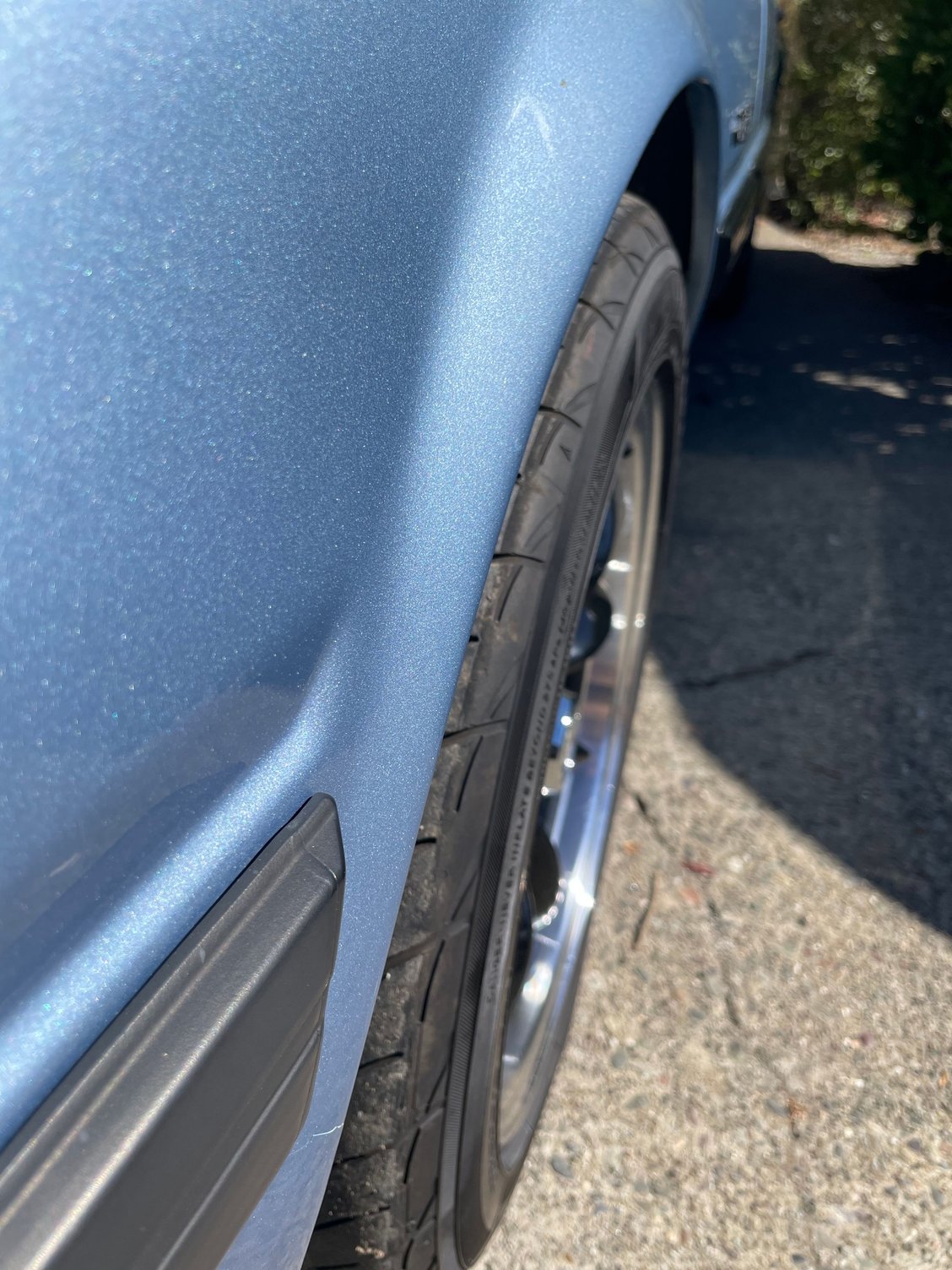

For poke, much harder to give such clear guidelines as would need to compress suspension to measure / take pics. Maybe use this pics as a starting point. Wheels are 15x7 20mm offset 205/50 tires. Racing Beat springs.

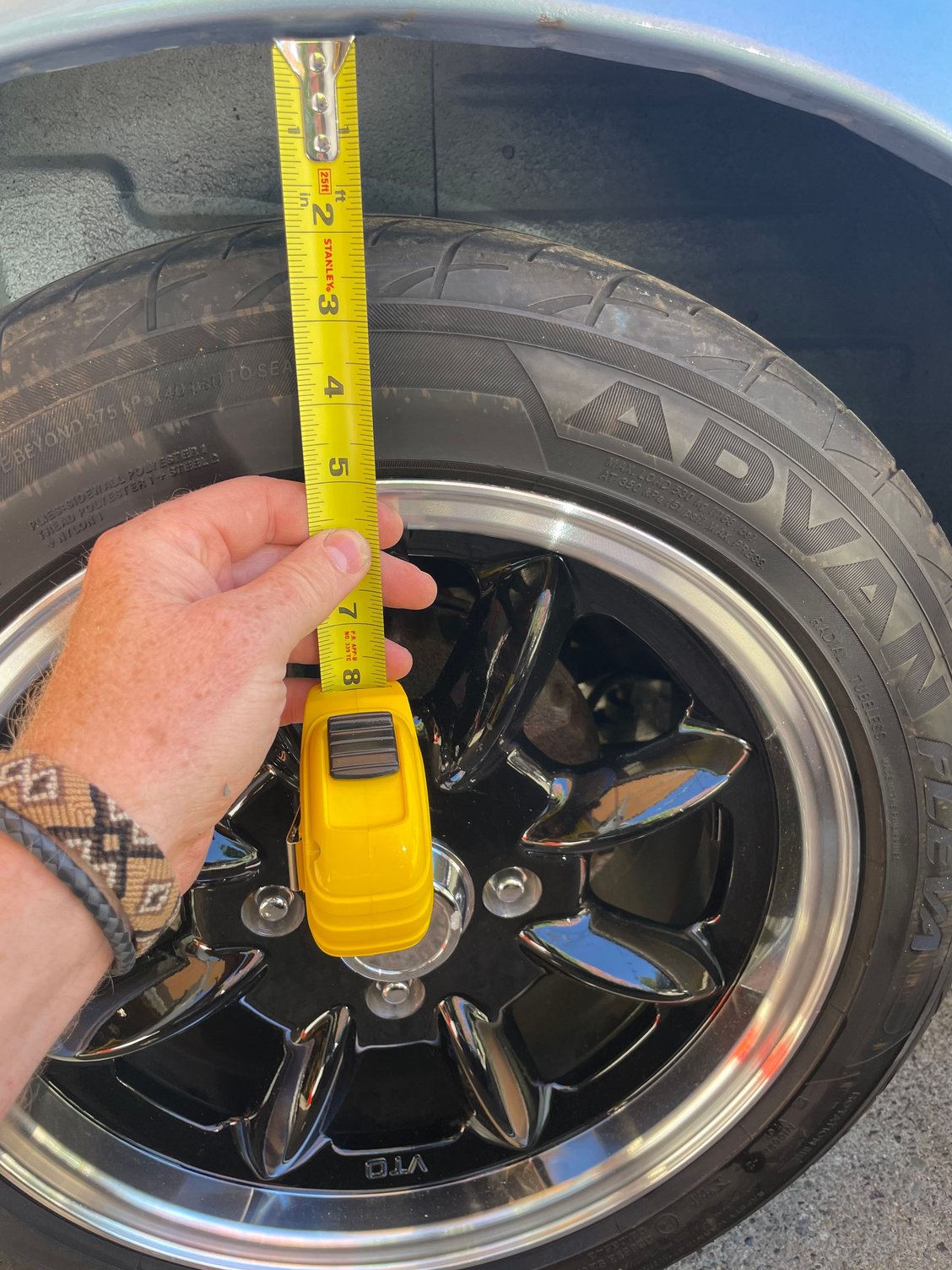

Front wheel

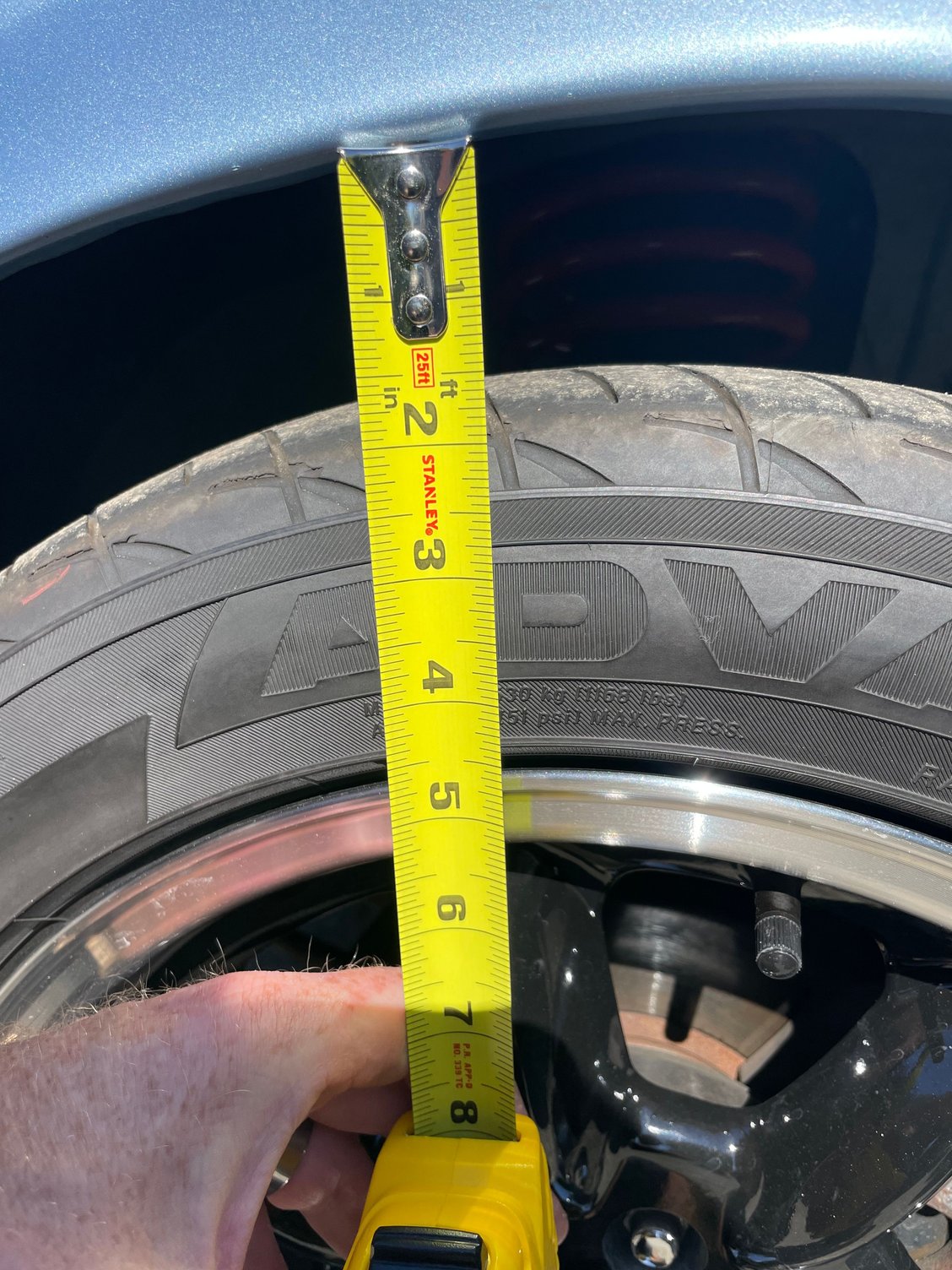

Rear wheel
Front wheel
Rear wheel
Conclusion is when running tire and wheel sizes through WillItFit.com, I would not let your resulting diameter exceed 586 (well maybe you could push it a bit there), and would keep the resulting inset below 109mm. Bigger diameters will hit the front inside edge of the rear well at full lock, larger offsets will rub the springs on the front.
For poke, much harder to give such clear guidelines as would need to compress suspension to measure / take pics. Maybe use this pics as a starting point. Wheels are 15x7 20mm offset 205/50 tires. Racing Beat springs.
Front wheel
Rear wheel
Front wheel
Rear wheel
Last edited by Slow_sevens; 10-04-23 at 01:06 PM.
The following users liked this post:
Setec_fl (10-04-23)
#32
seniorchief
Not sure of the differences between a 1980 RX7 and my 1985, but I have Racing Beat springs in front, new OEM strut cartridge's and I'm rolling on 15 x 7 Rota wheels with 205/50r15 tires. The lower front valance on my car measures 4.25" from the bottom edge to the floor and I have not had any issues with road clearance however, be aware of parking lot concrete bumpers.
#33

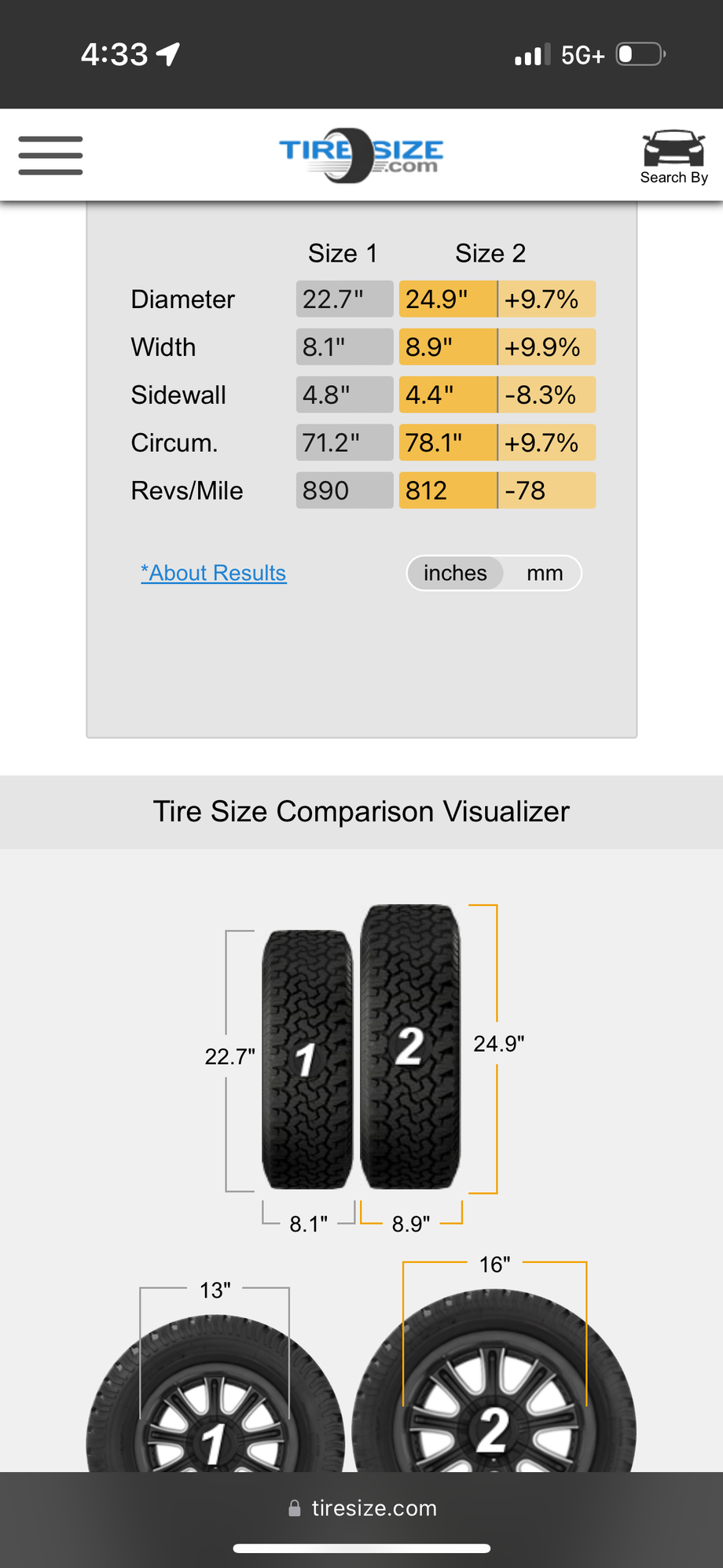

I was messing around on tiresize.com. They show you total overall changes between two tires.

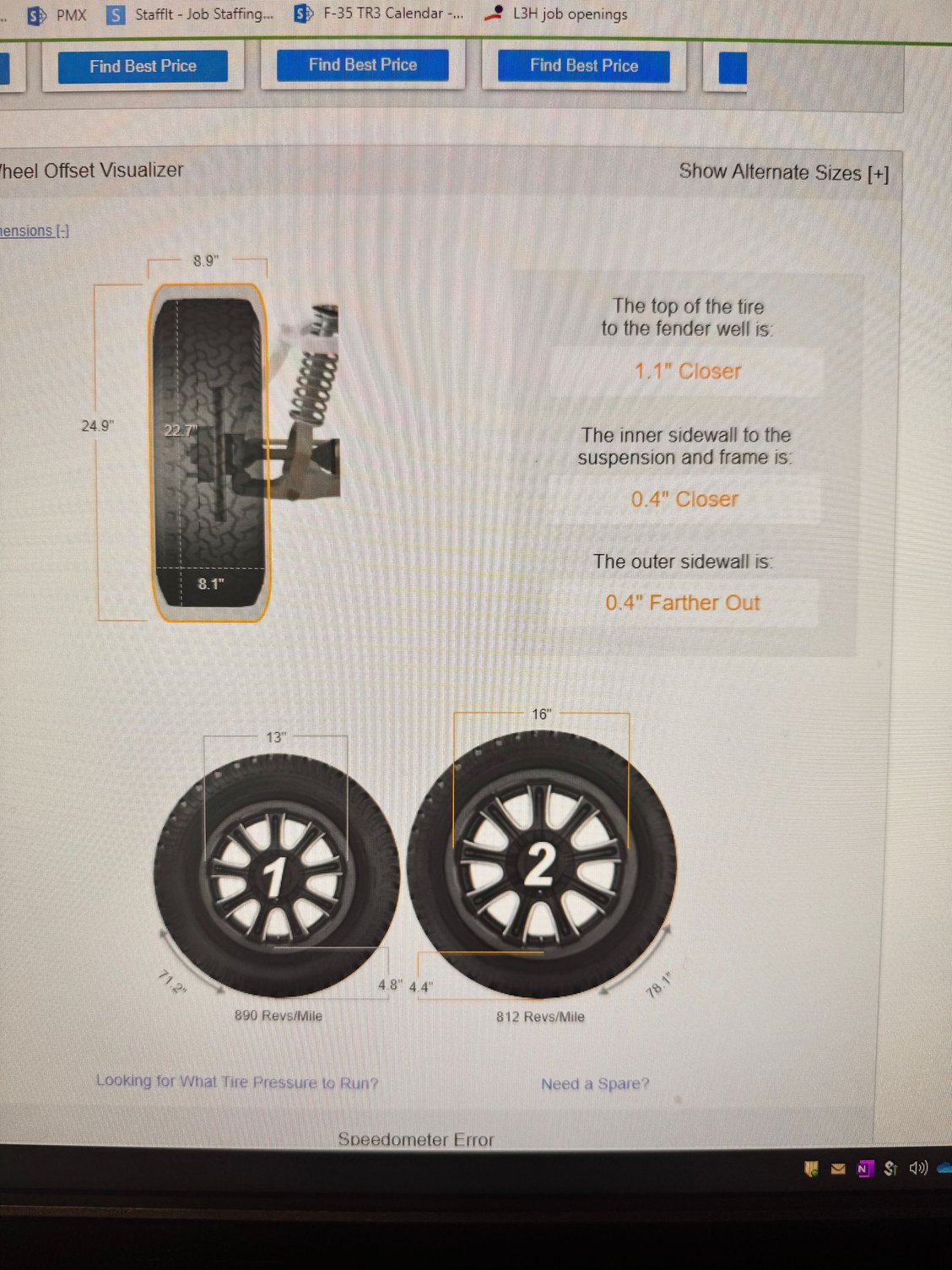

if I go with a 225/50 r16 20mm offset, it moves the wheel 1.1 inches closer to the fender with a 9.1% speedometer error. With the new springs. That would close 2.1 inches of fender gap.
225/50 r15 is only 0.6 inches closer.
if I go with a 225/50 r16 20mm offset, it moves the wheel 1.1 inches closer to the fender with a 9.1% speedometer error. With the new springs. That would close 2.1 inches of fender gap.
225/50 r15 is only 0.6 inches closer.
#34
Senior Member
And for laughs, what my kid did to his GS300. Now that’s pushing the limits.
#35
Thank you @slow_stevens
I guess I will do the shocks and springs first and measure my fender gap. The tire height between what is on there and what you have is 0.4 inches and I seem to have a lot more fender gap to cover. Not sure what the difference is but I definitely don’t want to order the wrong rims.
I guess I will do the shocks and springs first and measure my fender gap. The tire height between what is on there and what you have is 0.4 inches and I seem to have a lot more fender gap to cover. Not sure what the difference is but I definitely don’t want to order the wrong rims.
#36
seniorchief
Don’t worry about it. Here is mine with Racing Beat springs and 205/50 tires. Has not been a problem at all. The springs are probably already sagged out in your current set up, and offen the RB springs don’t give you the full distance in drop that they quote.
And for laughs, what my kid did to his GS300. Now that’s pushing the limits.
And for laughs, what my kid did to his GS300. Now that’s pushing the limits.
#37
Senior Member
It was horrible! It’s better now. Have him on new wheels, and took him to an alignment shop that specialized in slammed cars. (They had an in floor lift with no lip for cars with zero clearance cars). Had them set the car as low as decent alignment would allow.
On the way home the kid says ‘It’s great! I can hit a bump without the car changing lanes on its own!’
On the way home the kid says ‘It’s great! I can hit a bump without the car changing lanes on its own!’
#38
Senior Member
I was messing around on tiresize.com. They show you total overall changes between two tires.
if I go with a 225/50 r16 20mm offset, it moves the wheel 1.1 inches closer to the fender with a 9.1% speedometer error. With the new springs. That would close 2.1 inches of fender gap.
225/50 r15 is only 0.6 inches closer.
if I go with a 225/50 r16 20mm offset, it moves the wheel 1.1 inches closer to the fender with a 9.1% speedometer error. With the new springs. That would close 2.1 inches of fender gap.
225/50 r15 is only 0.6 inches closer.
#39
#40
Senior Member
. Wonder if you could search this site and find anyone that’s run a 225/16/50? I worry that you may get too close to front inside edge of wheel well, and to spring. The wheel well would be a problem only on turns with the steering at its max angle… so not so bad. However the spring could rub all the time. See the pics below and visualize the tread surface 1” taller next to the spring.
#41
Looks like that puts your tire diameter 2” larger than mine, which puts the outermost edge 1” closer to fender or suspension parts
. Wonder if you could search this site and find anyone that’s run a 225/16/50? I worry that you may get too close to front inside edge of wheel well, and to spring. The wheel well would be a problem only on turns with the steering at its max angle… so not so bad. However the spring could rub all the time. See the pics below and visualize the tread surface 1” taller next to the spring.
. Wonder if you could search this site and find anyone that’s run a 225/16/50? I worry that you may get too close to front inside edge of wheel well, and to spring. The wheel well would be a problem only on turns with the steering at its max angle… so not so bad. However the spring could rub all the time. See the pics below and visualize the tread surface 1” taller next to the spring.
dang shipping on those springs is $$$.
I’ve read some reviews that say they actually raised the car due to how old the old springs were. Guess we will see.
thank you again for all of your help!!
#42
Senior Member
yeah I worry about that too. I’m ordering the springs and new struts. Once they are installed, I’ll take some photos and measurements and see where we can go from there.
dang shipping on those springs is $$$.
I’ve read some reviews that say they actually raised the car due to how old the old springs were. Guess we will see.
thank you again for all of your help!!
dang shipping on those springs is $$$.
I’ve read some reviews that say they actually raised the car due to how old the old springs were. Guess we will see.
thank you again for all of your help!!
#43
#44
Rotary Enthusiast
iTrader: (2)
If you haven't already ordered the springs, I will make the suggestion that you might be able to cut your existing springs to get a lower stance than the RB springs with a similar spring rate. I looked at this hypothetically on another thread this morning for the rear springs. I had to make some assumptions because I don't have a set of stock springs available to test, but based on online pics and FSM specs, it seems reasonable. I know lots of people tend to look down their nose at cutting springs, but in my mind a spring is a spring. If it does what you want, who cares how you got there. I have done that on race springs before to get the rates I was looking for. In any case it is essentially free if you don't mind potentially taking springs in and out a couple of times.
Carl
Carl
#45
seniorchief
It was horrible! It’s better now. Have him on new wheels, and took him to an alignment shop that specialized in slammed cars. (They had an in floor lift with no lip for cars with zero clearance cars). Had them set the car as low as decent alignment would allow.
On the way home the kid says ‘It’s great! I can hit a bump without the car changing lanes on its own!’
On the way home the kid says ‘It’s great! I can hit a bump without the car changing lanes on its own!’
#46
Senior Member
[QUOTE=Carl;12578412]If you haven't already ordered the springs, I will make the suggestion that you might be able to cut your existing springs to get a lower stance than the RB springs with a similar spring rate. I looked at this hypothetically on another thread this morning for the rear springs. I had to make some assumptions because I don't have a set of stock springs available to test, but based on online pics and FSM specs, it seems reasonable. I know lots of people tend to look down their nose at cutting springs, but in my mind a spring is a spring. If it does what you want, who cares how you got there. I have done that on race springs before to get the rates I was looking for. In any case it is essentially free if you don't mind potentially taking springs in and out a couple of times.
Carl[/QUOTE
Small world. Just saw your racecar for sale on Facebook! If I only had a longer driveway.
Carl[/QUOTE
Small world. Just saw your racecar for sale on Facebook! If I only had a longer driveway.
#47
Rotary Enthusiast
iTrader: (2)
Yep. I wish I had a longer driveway (and bigger shed for all the spares) too! That ad going up on Facebook and here partly explains why I have been particularly active on RX7Club the last couple of days. Trying to get up my nerve to make and post the ad ;-).
Do you by any chance have a stock set of springs that you could take some measurements on? As you can see above, this post piqued my interest in cutting the stock springs to give a similar ride to, but lower stance than RB springs. May not make sense, but seems worth some quasi-engineering based poking around.
Carl
Do you by any chance have a stock set of springs that you could take some measurements on? As you can see above, this post piqued my interest in cutting the stock springs to give a similar ride to, but lower stance than RB springs. May not make sense, but seems worth some quasi-engineering based poking around.
Carl
#48
Senior Member
Yep. I wish I had a longer driveway (and bigger shed for all the spares) too! That ad going up on Facebook and here partly explains why I have been particularly active on RX7Club the last couple of days. Trying to get up my nerve to make and post the ad ;-).
Do you by any chance have a stock set of springs that you could take some measurements on? As you can see above, this post piqued my interest in cutting the stock springs to give a similar ride to, but lower stance than RB springs. May not make sense, but seems worth some quasi-engineering based poking around.
Carl
Do you by any chance have a stock set of springs that you could take some measurements on? As you can see above, this post piqued my interest in cutting the stock springs to give a similar ride to, but lower stance than RB springs. May not make sense, but seems worth some quasi-engineering based poking around.
Carl
#49
Yep. I wish I had a longer driveway (and bigger shed for all the spares) too! That ad going up on Facebook and here partly explains why I have been particularly active on RX7Club the last couple of days. Trying to get up my nerve to make and post the ad ;-).
Do you by any chance have a stock set of springs that you could take some measurements on? As you can see above, this post piqued my interest in cutting the stock springs to give a similar ride to, but lower stance than RB springs. May not make sense, but seems worth some quasi-engineering based poking around.
Carl
Do you by any chance have a stock set of springs that you could take some measurements on? As you can see above, this post piqued my interest in cutting the stock springs to give a similar ride to, but lower stance than RB springs. May not make sense, but seems worth some quasi-engineering based poking around.
Carl
The following users liked this post:
Carl (10-05-23)
#50
Senior Member
Reiteration to keep inset below 109mm on the likes of willitfit.com. Got a better picture with the wheel loaded of my FB. Car was on a trailer so could get underneath without a jack. This wheel calcs at 109mm, tire is a R15 205/5. Pretty tight in there. Any larger diameter or larger inset and tire would rub continuously at high speed, a much more dangerous situation than running the sway bar which would be very occasionally and at low speed.
