whats this hole on the rear 1/4 for?

Thread Tools

Search this Thread

Old Nov 17, 2015 | 10:52 PM
  #1
sandy_RE's Avatar
Thread Starter
Senior Member

Joined: Jul 2015
Posts: 302
Likes: 0
From: Melbourne Australia

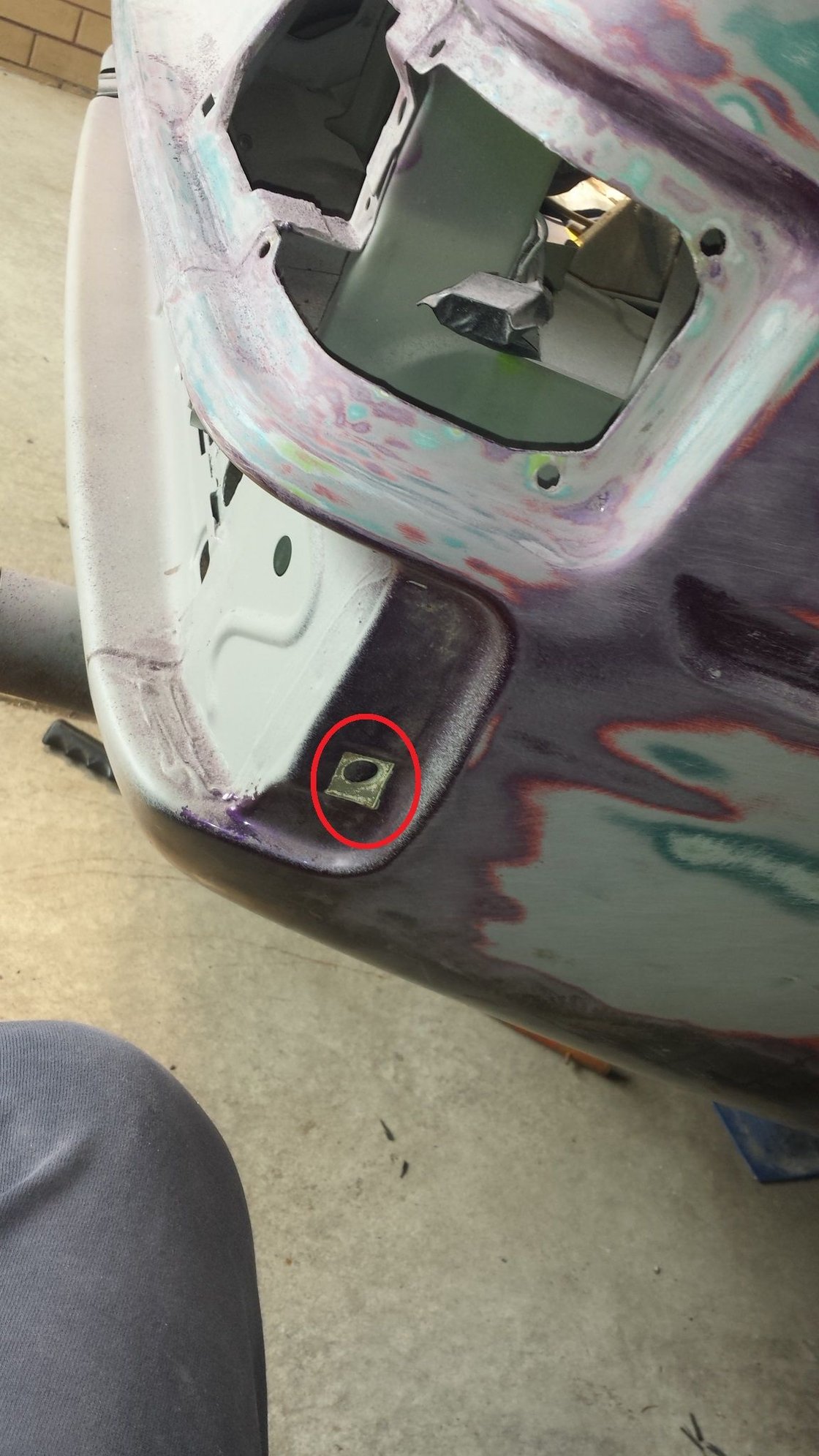

whats this hole on the rear 1/4 for?



it had some type of tape put over it and just painted over the top....is it another hole you can use for the rear hatch drain hose or is it for something else?
Reply
Old Nov 17, 2015 | 11:57 PM
  #2
coldy13's Avatar
Yeah, shutup kid.
Tenured Member 15 Years

Joined: Mar 2002
Posts: 1,686
Likes: 2
From: Columbus, OH
It's a speed hole

My '85 has another hole a couple inches above that, just like the bolt holes for the tail lights. It's been too long since I tore it apart, can't remember if there was a clip that bolted through those two holes and helped secure the bumper cover(or if I'm thinking of a different car...) but I think both holes on both sides were taped over. Not used for anything from the factory.
Reply
Old Nov 18, 2015 | 01:07 AM
  #3
sandy_RE's Avatar
Thread Starter
Senior Member

Joined: Jul 2015
Posts: 302
Likes: 0
From: Melbourne Australia
Originally Posted by coldy13
It's a speed hole

My '85 has another hole a couple inches above that, just like the bolt holes for the tail lights. It's been too long since I tore it apart, can't remember if there was a clip that bolted through those two holes and helped secure the bumper cover(or if I'm thinking of a different car...) but I think both holes on both sides were taped over. Not used for anything from the factory.
I wish lol

what type of tape is it?
or should I just weld it shut or silicone/sikaflex something over it?

and theres another hole in the rear hatch you can see the floor its not a rust hole... do you know what that could be?
Reply
Old Nov 18, 2015 | 04:55 AM
  #4
WJM ROTARIES's Avatar
Rotary Freak
Tenured Member: 10 Years

Joined: Aug 2012
Posts: 2,872
Likes: 407
From: MELBOURNE AUSTRALIA
All rx7s have holes in body shell and covered by tape and painted over when car was built they are vent and drain holes and are used when body was dipped in paint and sealer when they were built .Just cover them with a good metal type sticky tape before painting
Reply
Old Nov 18, 2015 | 05:42 AM
  #5
ray green's Avatar
Gone
iTrader: (14)

Joined: Jul 2002
Posts: 11,442
Likes: 210
There is a plastic clip that screws into that hole that serves as an anchor for the wrap around plastic bumper skin.

If the hole in the rear hatch is in the spare tire well, it's a water drain hole. There should be a black rubber plug in it.

There are several other plugged drain holes located around the chassis as well.

Last edited by ray green; Nov 18, 2015 at 05:44 AM.
Reply
Old Nov 18, 2015 | 06:34 AM
  #6
sandy_RE's Avatar
Thread Starter
Senior Member

Joined: Jul 2015
Posts: 302
Likes: 0
From: Melbourne Australia
Originally Posted by WJM ROTARIES
All rx7s have holes in body shell and covered by tape and painted over when car was built they are vent and drain holes and are used when body was dipped in paint and sealer when they were built .Just cover them with a good metal type sticky tape before painting
its done a good job lasting from the factory.

iv seen a metal type tape at bunnings with a chrome finish I might use that.

thanks for the info warrick!
Reply
Old Nov 18, 2015 | 06:40 AM
  #7
sandy_RE's Avatar
Thread Starter
Senior Member

Joined: Jul 2015
Posts: 302
Likes: 0
From: Melbourne Australia
Originally Posted by ray green
There is a plastic clip that screws into that hole that serves as an anchor for the wrap around plastic bumper skin.

If the hole in the rear hatch is in the spare tire well, it's a water drain hole. There should be a black rubber plug in it.

There are several other plugged drain holes located around the chassis as well.
I guess mine were taped up coz of series 1 metal bumpers theres no need for a ancho , but must give option to fit S2/3 plastic bumper.

the one in the spare tire well is plugged up, its to the left of the wheel well when looking from the back.
Reply
Old Nov 18, 2015 | 04:24 PM
  #8
WJM ROTARIES's Avatar
Rotary Freak
Tenured Member: 10 Years

Joined: Aug 2012
Posts: 2,872
Likes: 407
From: MELBOURNE AUSTRALIA
Originally Posted by sandy_RE
its done a good job lasting from the factory.

iv seen a metal type tape at bunnings with a chrome finish I might use that.

thanks for the info warrick!
The tape from Bunnings will work well I have used it many times
Reply
