What Is This Part? Need A New One?

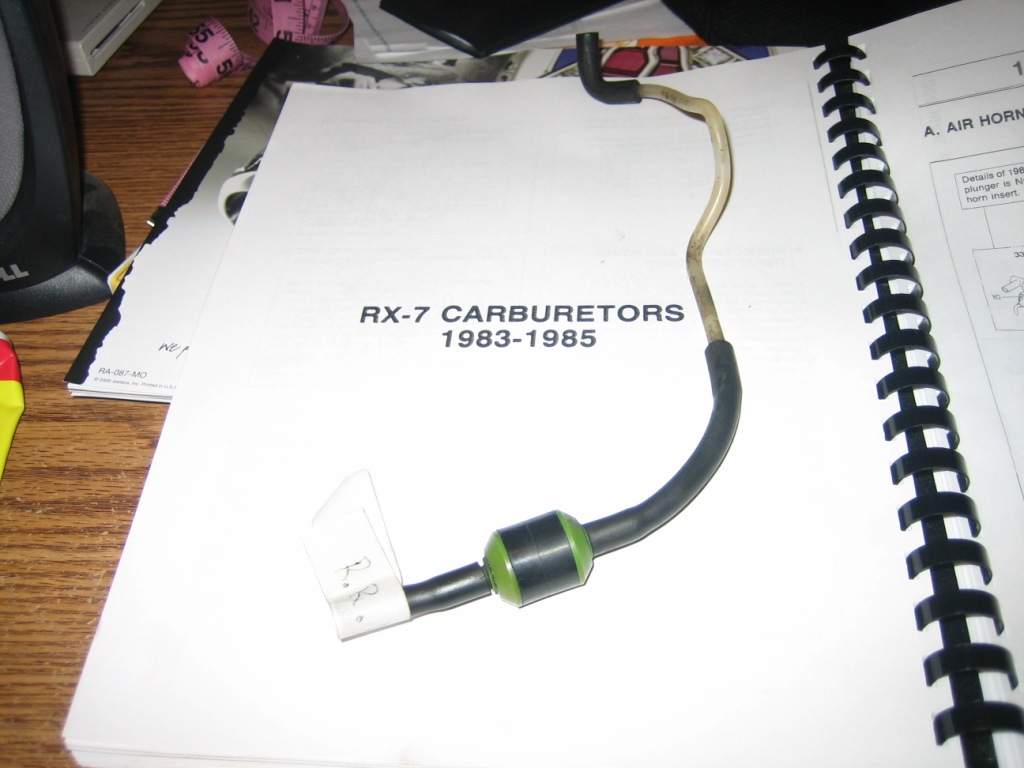

See Pics below.... Probably a simple question for you vets, but I can't find this part in my books and I think it is bad. It connects on the line feeding my bi-metal choke assembly. I can't blow through it either direction. Can it (the little green thing that looks like a filter) be taken out of the line and the lie run direct?
Also I need a new Bi-metal Choke Assembly for my 84 with 12a. Previous owner has bent/sprung it. Anyone have one that works?
Also I need a new Bi-metal Choke Assembly for my 84 with 12a. Previous owner has bent/sprung it. Anyone have one that works?
Last edited by JCs84; 09-02-08 at 09:50 PM. Reason: Title jibberish
#5
Rolla Wrestler
Thread Starter
Join Date: Aug 2008
Location: Rolla MO
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
I'm considering it if I can't find someone to sell me a vacuum advance solenoid!! Got one?
This is not removed with standard rats nest, it goes to the choke opening vacuum diaphragm from the passenger side of the carb.
The off-vehicle adjustments call for a vacuum applied to check clearance, so why would this line have a restrictor?
This is not removed with standard rats nest, it goes to the choke opening vacuum diaphragm from the passenger side of the carb.
The off-vehicle adjustments call for a vacuum applied to check clearance, so why would this line have a restrictor?
#7
weak minds wear the crown
iTrader: (2)
I'm considering it if I can't find someone to sell me a vacuum advance solenoid!! Got one?
This is not removed with standard rats nest, it goes to the choke opening vacuum diaphragm from the passenger side of the carb.
The off-vehicle adjustments call for a vacuum applied to check clearance, so why would this line have a restrictor?
This is not removed with standard rats nest, it goes to the choke opening vacuum diaphragm from the passenger side of the carb.
The off-vehicle adjustments call for a vacuum applied to check clearance, so why would this line have a restrictor?
Trending Topics
#8
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
part number is/was 8671-23-980
#9
Rolla Wrestler
Thread Starter
Join Date: Aug 2008
Location: Rolla MO
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
Thanks. I will try the part number as mine has to be bad. I dont see a method for testing it, but unless delay means never, this has to be bad.
I still need a vacuum advance solinoid off a rats nest and the electric/spring choke if anyone has them.
I still need a vacuum advance solinoid off a rats nest and the electric/spring choke if anyone has them.
#13
Censored
iTrader: (14)
One in ten of mine does, the rest are either very restricted or completely restricted.
I'm sure having functioning units whatever they do (there are actually several of these green things on the stock set up) will help the rat's nest do it's excellent job of smoothing throttle response, decreasing emissions and increasing performance and gas mileage. So I'd like to replace mine with new units if I could find the part.
Anybody know where to get them? I asked once at the Mazda dealer but the guy said they weren't available anymore. Was he right?
I'm sure having functioning units whatever they do (there are actually several of these green things on the stock set up) will help the rat's nest do it's excellent job of smoothing throttle response, decreasing emissions and increasing performance and gas mileage. So I'd like to replace mine with new units if I could find the part.
Anybody know where to get them? I asked once at the Mazda dealer but the guy said they weren't available anymore. Was he right?
#14
Rolla Wrestler
Thread Starter
Join Date: Aug 2008
Location: Rolla MO
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
Ray,
I know from my surfing that you are a huge supporter of the stock set-up, and I have seen pictures of you engine bay that should be framed...awesome!
I have searched the part number given above and can not find anything yet. What I would like to know is what it actually does. Limiting? One-way? Delay? Restrictor??? If I knew what its function was I might be able to find a part available that will do the same thing.
Let me know if you find out anything.
I know from my surfing that you are a huge supporter of the stock set-up, and I have seen pictures of you engine bay that should be framed...awesome!
I have searched the part number given above and can not find anything yet. What I would like to know is what it actually does. Limiting? One-way? Delay? Restrictor??? If I knew what its function was I might be able to find a part available that will do the same thing.
Let me know if you find out anything.
#15
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
Ray,
I know from my surfing that you are a huge supporter of the stock set-up, and I have seen pictures of you engine bay that should be framed...awesome!
I have searched the part number given above and can not find anything yet. What I would like to know is what it actually does. Limiting? One-way? Delay? Restrictor??? If I knew what its function was I might be able to find a part available that will do the same thing.
Let me know if you find out anything.
I know from my surfing that you are a huge supporter of the stock set-up, and I have seen pictures of you engine bay that should be framed...awesome!
I have searched the part number given above and can not find anything yet. What I would like to know is what it actually does. Limiting? One-way? Delay? Restrictor??? If I knew what its function was I might be able to find a part available that will do the same thing.
Let me know if you find out anything.
i wanna say theres another number for it, but i dont remember what its from (fd? gsl-se? 626?) i looked into this in like 96-97, the part was available, but it was in the $40 range then, so it would be like $60 now (dollars taken a huge crap)
#16
Censored
iTrader: (14)
Thanks JCs84, the White One is good to me so I try to be good to her (she gave me a real nice 300 mile business trip today, 152,000 and going strong).
j9fd3s, that would explain why green check valves weren't working, they aren't check valves. Thanks! I'll have to test them again, maybe they're fine.
(A friend of mine replaced his with one way check valves, might explain why he's still got idle problems).
Still, it would be nice to have a replacement available if needed. Even if they still work, the plastic gets brittle and the nipples break off - be careful taking them out! Ask me how I know.
j9fd3s, that would explain why green check valves weren't working, they aren't check valves. Thanks! I'll have to test them again, maybe they're fine.
(A friend of mine replaced his with one way check valves, might explain why he's still got idle problems).
Still, it would be nice to have a replacement available if needed. Even if they still work, the plastic gets brittle and the nipples break off - be careful taking them out! Ask me how I know.
#18
Censored
iTrader: (14)
Thanks JC, so yeah, it looks like new ones of these don't exist. I have a bunch of them but have no good way to test them so who knows if these 20+ year old plastic parts are still good?
When I get a chance I will try DivinDivers "delay valve" idea, but I'm still not sure what a proper test would be. Apply vacuum for 5-10 seconds? Anybody know?
And if they are all bad I'll be looking for some more!
When I get a chance I will try DivinDivers "delay valve" idea, but I'm still not sure what a proper test would be. Apply vacuum for 5-10 seconds? Anybody know?
And if they are all bad I'll be looking for some more!
#19
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
two things.
1. just suck on one end, if the valve is good, it'll open up in a few seconds (i think its like 5-10?)
2. this valve ONLY affects the idle with the choke on. once the choke is off its not doing anything
1. just suck on one end, if the valve is good, it'll open up in a few seconds (i think its like 5-10?)
2. this valve ONLY affects the idle with the choke on. once the choke is off its not doing anything
#20
Censored
iTrader: (14)
OK, I went out and tested the damn things with the vacuum gauge.
All the green ones were the same, partial restriction in both directions, but no timed delay. They pull around three inches of mercury with the arrow and 8 inches against it. So it looks like they delay flow in one direction but not in the other.
There are two of the green units in the stock 84 GSL, both on the driver's side of the carb, located close together:
Not sure what they do, but looks like they'ar doing it for me.
There's another one of these gizmos on the passenger side, similar but with a black barrel (also see the first photo):
The black one pulls equally hard in both directions, around 22 inches of Hg (I checked two of them).
Again, not sure what the black ones are doing, but it looks to me like these 24 year old plastic Mazda OEM parts are holding up pretty well. You gotta love the 12A.
You guys who lost the rat's nest (along with the gas mileage and throttle response) hold on to those green things and black things, OK?
All the green ones were the same, partial restriction in both directions, but no timed delay. They pull around three inches of mercury with the arrow and 8 inches against it. So it looks like they delay flow in one direction but not in the other.
There are two of the green units in the stock 84 GSL, both on the driver's side of the carb, located close together:
Not sure what they do, but looks like they'ar doing it for me.
There's another one of these gizmos on the passenger side, similar but with a black barrel (also see the first photo):
The black one pulls equally hard in both directions, around 22 inches of Hg (I checked two of them).
Again, not sure what the black ones are doing, but it looks to me like these 24 year old plastic Mazda OEM parts are holding up pretty well. You gotta love the 12A.
You guys who lost the rat's nest (along with the gas mileage and throttle response) hold on to those green things and black things, OK?
Last edited by ray green; 09-10-08 at 05:36 PM.
#21
Rolla Wrestler
Thread Starter
Join Date: Aug 2008
Location: Rolla MO
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts

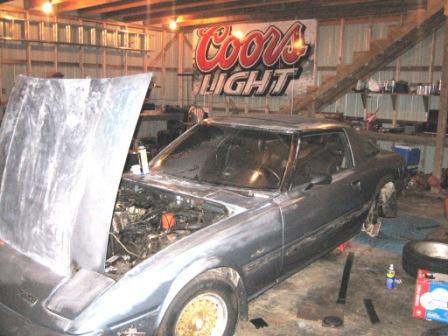

RAY!!! You are a man after my own heart! No preservatives, no hangover! See the attached Pic. I was once told that Coors Light and sex in a boat were the same.....FUCXXNG close to water!!! Well, I like sex in a boat!
Your tests are similar to what I have seen as well. Relative to the black barrel solenoid, I can hardly get flow to go either way. This is one of two lines that go the the vacuum diaphragm which pulls the choke off. I'm thinking it is not very important and am going with what I have.
Your tests are similar to what I have seen as well. Relative to the black barrel solenoid, I can hardly get flow to go either way. This is one of two lines that go the the vacuum diaphragm which pulls the choke off. I'm thinking it is not very important and am going with what I have.
Last edited by JCs84; 09-10-08 at 09:19 PM.
#22
Censored
iTrader: (14)
Yep that's how my black ones are working too, very little flow either way, that's why I was able to pump the vacuum gauge up to 22 inches (in both directions; these valves don't have an arrow). My guess is that the black one is designed to bleed air at a slow rate.
And the green ones must do something similar, but a little faster and delaying flow in only one direction, against the arrow (at 8 inches Hg) and not with the arrow (only a weak 3 inches resistance).
I suppose all this is in the FSM someplace. I'm still curious about what they do but not curious enough to go slogging through that thing.
And yeah that Coors Light is very sexy beer.
PS I have lost of spare carb parts, should have what you need. Could you pm a picture so I can be sure to get the right thing?
And the green ones must do something similar, but a little faster and delaying flow in only one direction, against the arrow (at 8 inches Hg) and not with the arrow (only a weak 3 inches resistance).
I suppose all this is in the FSM someplace. I'm still curious about what they do but not curious enough to go slogging through that thing.
And yeah that Coors Light is very sexy beer.
PS I have lost of spare carb parts, should have what you need. Could you pm a picture so I can be sure to get the right thing?
Last edited by ray green; 09-11-08 at 06:36 AM.
#23
Rolla Wrestler
Thread Starter
Join Date: Aug 2008
Location: Rolla MO
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
I went ahead and bought the whole carb with all attachements from jaidedeye for $40, and someone else is sending me a couple of solenoids and another black barrel vacuum delay/restrictor to have on-hand. I appreciate the offer though. Later
Rob
