what kind of electric fan are you running?
09-19-05, 08:36 PM
#1
Rotary Enthusiast
Thread Starter
what kind of electric fan are you running?
Hey
I have a 79 gs, and i think it's time for an e- fan upgrade. I've tried 2 different fan clutches, and they both throw black graphite, or charcoal, or whatever alll over my engine bay. Plus, they're LOUD! I can't even hear my engine over the stock fan.
So what, i'm gettting at is:
what's a good electric fan to upgrade to? There's one in the victoria british catalog for $130 that i've been looking at. Does anyone have any experiences with this or any other types of fans? Are they easy to install and do they work good?
I have a 79 gs, and i think it's time for an e- fan upgrade. I've tried 2 different fan clutches, and they both throw black graphite, or charcoal, or whatever alll over my engine bay. Plus, they're LOUD! I can't even hear my engine over the stock fan.
So what, i'm gettting at is:
what's a good electric fan to upgrade to? There's one in the victoria british catalog for $130 that i've been looking at. Does anyone have any experiences with this or any other types of fans? Are they easy to install and do they work good?
09-19-05, 10:32 PM
#4
Apply clever comment here
Join Date: Sep 2005
Location: Post Falls ID
Posts: 125
Likes: 0
Received 0 Likes
on
0 Posts
E-fan out of a buick
..i dont remember the year though. i mounted it infront of the rad, so it push's instead of pulls the air. As far as the noise you are haveing get a balist <---spelling?....resistor.
..i dont remember the year though. i mounted it infront of the rad, so it push's instead of pulls the air. As far as the noise you are haveing get a balist <---spelling?....resistor.
09-19-05, 11:07 PM
#6
Nigga stole my bike!
Join Date: Oct 2002
Location: Des Allemands, Louisiana
Posts: 1,154
Likes: 0
Received 0 Likes
on
0 Posts
I've heard of quite a few people using e-fans out of early '90s Ford Taurii, the Fiero GT or the early supercharged MR2. I'm sure they can be found cheap at the bone yard.
I know that the Taurus fan shroud fits perfectly over the stock radiator, but I am not certain if modding is needed for the others.
I know that the Taurus fan shroud fits perfectly over the stock radiator, but I am not certain if modding is needed for the others.
Trending Topics
09-20-05, 02:17 AM
#9
Lives on the Forum
'80's MR2 E-Fans
Five minute installation time once your old stuff is removed. Drill two holes into the metal shroud on the fans and bolt it on using stock shroud mounting holes and bolts. It comes with two fans and they really kick out the air. I'm currently running only one fan (long story), been doing it all summer actually, and still runs nice and cool. Got it for 20 bucks at the Junkyard, acid dipped it and painted it. 18 bucks for the automatic fan control at Autozone and I was all set.
09-20-05, 09:11 AM
#12
EliteHardcoreCannuckSquad
Join Date: May 2001
Location: Acton, Ontario, Canada
Posts: 4,126
Likes: 0
Received 4 Likes
on
4 Posts
I looked at the X-Treme, but it only works in the puller position, and I wanted to free-up/clean-up the engine bay, so I opted for the very similar Sycone instead.
09-20-05, 12:38 PM
#13
Rotary Freak
Join Date: Sep 2002
Location: SF BayArea
Posts: 2,815
Likes: 0
Received 0 Likes
on
0 Posts
I haven't done a E-fan yet, but I've been thinking about it. Here's what I've gleaned from the forum:
-shroud is very important
-ON/OFF control requires a little work
I think I'd go for a pusher, too, just to open up some room around the engine.
B
-shroud is very important
-ON/OFF control requires a little work
I think I'd go for a pusher, too, just to open up some room around the engine.
B
09-20-05, 07:38 PM
#18
Originally Posted by REVHED
Nice. A perfect fit. What sort of oil cooler are you running?
It is almost a perfect fit. Some minor trimming here and there was necessary.
09-20-05, 09:44 PM
#20
Originally Posted by REVHED
Does the shroud extend down over the cooler as well?
whole radiator though. So if it was a Shorty/Thick Radiator, with the Oil Cooler Under the Radiator - then I think it would work.
Mounting Surface Required: 21 1/2" x 17 1/2" x 4 3/16"
Part # 180 - Puller
Electric Fan
All-new, bigger and more powerful than any other single fan on the market!
Covers 45% more radiator surface area than the regular Black Magic fan!
See Application Guide for the many vehicles
which can benefit from this fan.
Features
- The most powerful single electric fan available Provides full radiator coverage for many vehicles One piece, rugged nylon shroud Shrouded fan creates 45-50% higher heat transfer than cage fan of same performance Rigid bracket mounting system, no thru core mounting High torque, high RPM electric motor Adjustable thermostat, A/C relay and manual switch connection Instalation instructions with wiring diagrams in English, French and Spanish
- Provides consistent cooling, regardless of engine RPM
Last edited by Directfreak; 09-20-05 at 09:48 PM.
09-20-05, 11:43 PM
#21
Lives on the Forum

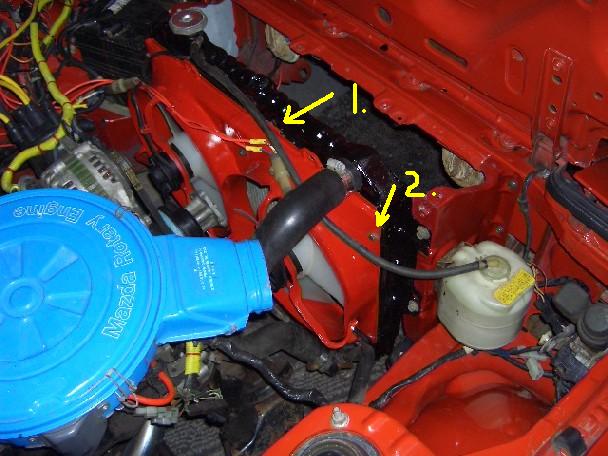

Here's that 38 dollar MR2 setup....
1. Shows the hook on the top of the fan shroud. This hangs onto the lip on the top of the radiator rather nicely.
2. Then, just drill two holes in the shroud to match up with a couple of the original shroud mounting holes. Use original bolts to mount the new fans.
You can either run them both using the same fan control, or set them up with two controls so that one will come on before the other. I am currently using only one of the fans, even that is cooling just fine for me. Haven't had an issue all summer.
1. Shows the hook on the top of the fan shroud. This hangs onto the lip on the top of the radiator rather nicely.
2. Then, just drill two holes in the shroud to match up with a couple of the original shroud mounting holes. Use original bolts to mount the new fans.
You can either run them both using the same fan control, or set them up with two controls so that one will come on before the other. I am currently using only one of the fans, even that is cooling just fine for me. Haven't had an issue all summer.
09-21-05, 02:18 AM
#22
Banned. I got OWNED!!!
Join Date: Nov 2003
Location: Mill Creek, WA
Posts: 850
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kentetsu
Here's that 38 dollar MR2 setup....
1. Shows the hook on the top of the fan shroud. This hangs onto the lip on the top of the radiator rather nicely.
2. Then, just drill two holes in the shroud to match up with a couple of the original shroud mounting holes. Use original bolts to mount the new fans.
You can either run them both using the same fan control, or set them up with two controls so that one will come on before the other. I am currently using only one of the fans, even that is cooling just fine for me. Haven't had an issue all summer.
1. Shows the hook on the top of the fan shroud. This hangs onto the lip on the top of the radiator rather nicely.
2. Then, just drill two holes in the shroud to match up with a couple of the original shroud mounting holes. Use original bolts to mount the new fans.
You can either run them both using the same fan control, or set them up with two controls so that one will come on before the other. I am currently using only one of the fans, even that is cooling just fine for me. Haven't had an issue all summer.
-dave
09-21-05, 04:30 AM
#23
Lives on the Forum
LOL. The fans fit great on the stock radiator, but when I upgraded to the 2nd gen radiator I found it did not fit so well. The new radiator is just a little too wide to mount the fan the same way, so I'll need to fab some brackets or something. I rigged it up with just the one fan as a temporary fix, but it cools so good anyway that finishing it has moved way down the list of important things I must do.
09-21-05, 05:38 AM
#24
Senior Member
Join Date: Mar 2003
Location: NY
Posts: 604
Likes: 0
Received 0 Likes
on
0 Posts
Man Kentetsu I keep on looking at your setup and think how nice it is and how much space you have... And wonder why I don't have the same space and then like a dumbass I realize that my 13B is longer. Doh!?!?!
