What About Thise? [PICTS PROBLEM]
Look i have thise problem i have bring some month ago my car to a Mazda Official Place that have closed thise tube, i have see today when i have turn up my car that the tube its closed ..
And here loock:
For you thise tube its half and closed see it? its that i a big problem? its better that i reopen it .. ? What is the function of thise tube ? thanks!
Here more pitcs =)
And here loock:
For you thise tube its half and closed see it? its that i a big problem? its better that i reopen it .. ? What is the function of thise tube ? thanks!
Here more pitcs =)
04-10-03, 06:06 PM
#3
Full Member
Thread Starter
Join Date: May 2002
Location: ITALY
Posts: 150
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by jeremy
when i told you to get some jack stands you went all out.
when i told you to get some jack stands you went all out.
04-11-03, 01:12 AM
#6
Full Member
Thread Starter
Join Date: May 2002
Location: ITALY
Posts: 150
Likes: 0
Received 0 Likes
on
0 Posts
Oh YES!!! its really thise part!!!!! thanks a lot iotus, maibe now more people can help me, it was not very clear on my picts..
my problem its i would to know if closed its a big problem? i must open it?
my problem its i would to know if closed its a big problem? i must open it?
Trending Topics
04-11-03, 01:18 AM
#8
brilliantly stupid
Join Date: Nov 2002
Location: Rockford, IL
Posts: 1,100
Likes: 0
Received 0 Likes
on
0 Posts
Well, I wouldn't do anything with it unless you know for sure what exactly it's purpose is for and why's it's closed and what not.
I'm a dumb *** so I can't say anything to help you out. heh, sorry.
I'm a dumb *** so I can't say anything to help you out. heh, sorry.
04-11-03, 01:24 AM
#9
Senior Member
Join Date: May 2002
Location: Australia, Melbourne
Posts: 702
Likes: 0
Received 0 Likes
on
0 Posts
thats the cool air pipe that is ment to hook up to your cat.. it sends cool air to the cat because the rotary exhust to too hot and the cemical reaction with the catalists in the cat wont work, so it needs the cool air.
but looking at the picture it looks like u dont have that first cat in there? so it has just been blocked off
if u havent got the cat then u dont need that pipe
but if ur cat is still there and the pipes not going to it. then i think it could do some damage to the exhaust
but looking at the picture it looks like u dont have that first cat in there? so it has just been blocked off
if u havent got the cat then u dont need that pipe
but if ur cat is still there and the pipes not going to it. then i think it could do some damage to the exhaust
04-11-03, 07:24 PM
#11
Junior Member
Join Date: Jul 2002
Location: crystal, minnesota
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
scrutch:

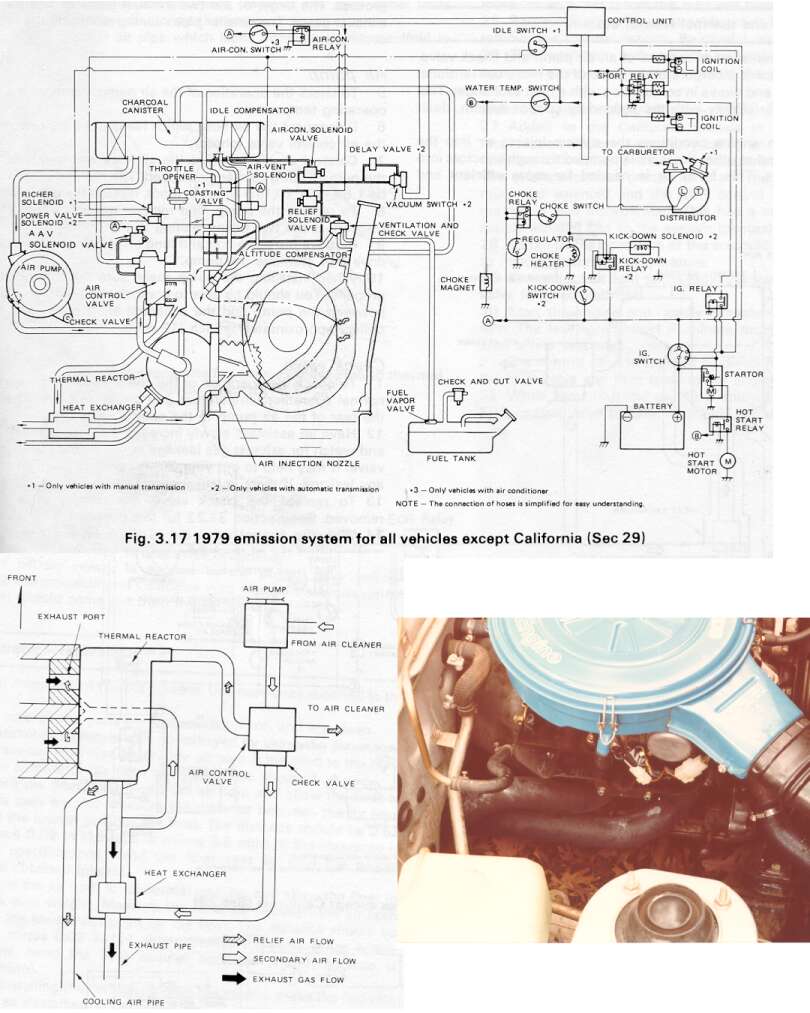

Your car looks like a SA series as was sold in the states from 1979-1980, which had no catalytic converter. Instead, they used a thermal reactor (see diagram at link https://www.rx7club.com/forum/showth...5&pagenumber=2 and download "header2.jpg")
It looks like they closed off the tube that carries the thermal reactor cooling air to the rear of the car. (the tube is coming from the front of the car, and going toward the rear, if I'm seeing it right) If you have a stock emission system that is otherwise functioning properly, this tube needs to be open to allow the hot air that circulates inside a jacket around the thermal reactor, to escape, or the thermal reactor could overheat, causing it to crack, or maybe create engine overheating problems.
Try to find it on the diagram of the emission controls on the page at the above link. I hope this helps!
Your car looks like a SA series as was sold in the states from 1979-1980, which had no catalytic converter. Instead, they used a thermal reactor (see diagram at link https://www.rx7club.com/forum/showth...5&pagenumber=2 and download "header2.jpg")
It looks like they closed off the tube that carries the thermal reactor cooling air to the rear of the car. (the tube is coming from the front of the car, and going toward the rear, if I'm seeing it right) If you have a stock emission system that is otherwise functioning properly, this tube needs to be open to allow the hot air that circulates inside a jacket around the thermal reactor, to escape, or the thermal reactor could overheat, causing it to crack, or maybe create engine overheating problems.
Try to find it on the diagram of the emission controls on the page at the above link. I hope this helps!
Last edited by rotor-spin; 04-11-03 at 07:35 PM.
04-12-03, 02:53 AM
#12
Full Member
Thread Starter
Join Date: May 2002
Location: ITALY
Posts: 150
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by rotor-spin
scrutch:
Your car looks like a SA series as was sold in the states from 1979-1980, which had no catalytic converter. Instead, they used a thermal reactor (see diagram at link https://www.rx7club.com/forum/showth...5&pagenumber=2 and download "header2.jpg")
It looks like they closed off the tube that carries the thermal reactor cooling air to the rear of the car. (the tube is coming from the front of the car, and going toward the rear, if I'm seeing it right) If you have a stock emission system that is otherwise functioning properly, this tube needs to be open to allow the hot air that circulates inside a jacket around the thermal reactor, to escape, or the thermal reactor could overheat, causing it to crack, or maybe create engine overheating problems.
Try to find it on the diagram of the emission controls on the page at the above link. I hope this helps!
scrutch:
Your car looks like a SA series as was sold in the states from 1979-1980, which had no catalytic converter. Instead, they used a thermal reactor (see diagram at link https://www.rx7club.com/forum/showth...5&pagenumber=2 and download "header2.jpg")
It looks like they closed off the tube that carries the thermal reactor cooling air to the rear of the car. (the tube is coming from the front of the car, and going toward the rear, if I'm seeing it right) If you have a stock emission system that is otherwise functioning properly, this tube needs to be open to allow the hot air that circulates inside a jacket around the thermal reactor, to escape, or the thermal reactor could overheat, causing it to crack, or maybe create engine overheating problems.
Try to find it on the diagram of the emission controls on the page at the above link. I hope this helps!
I'M REALLY DISGUSTED OF THE MAZDA OFFICIAL CONCESSIONARY IN ITALY, they are all sucker, they close me the tube without say me nothing.. and they have me ask a lot of money ! **** guys!
04-13-03, 09:01 PM
#14
Junior Member
Join Date: Jul 2002
Location: crystal, minnesota
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
The pipe looks pretty mangled, I suppose you'll have to cut it, and clamp on an extension, to divert it away from the floor, or anything else that doesn't like heat. I think the section this normally bolts to runs back near the muffler. What happened to that part of it?
04-14-03, 12:16 AM
#15
Senior Member
Join Date: Aug 2001
Location: Fort McMurray, Alberta
Posts: 723
Received 0 Likes
on
0 Posts
The air coming out of that pipe won't be very hot, I remember being able to put my bare hand over the end of it and barely feeling anything coming out of it. Air flows from the air pump around the outside chamber inside the thermal reactor, if that makes any sense at all.
I'd cut it just infront of where the Mazda people mangled the pipe, it should be fine until you get full exhaust. You are getting full exhaust at some point right? C'mon, do it. Good luck man.
