Weird Oil pressure issue

Have a weird oil pressure issue. I was driving back home from San Antonio, and I noticed my oil pressure at 3k RPM was sitting WELL below 60. At idle, it was almost at the 0 mark. I am running 20w50 and it is nice and full.

The car is running nicely. I have also noticed that the dial when the engine is off is WAY over from the 0 mark. Even with electrical power going to the gauges. It sits near the far side of the 0 mark.

The car being warm or cold doesn't seem to change anything. No oil warning lights or anything.

Tonight I am going to clean the connections on the oil pressure sensor and most likely also change out the oil filter for grins. I am only 1.5k in since the last oil change.

Any ideas?

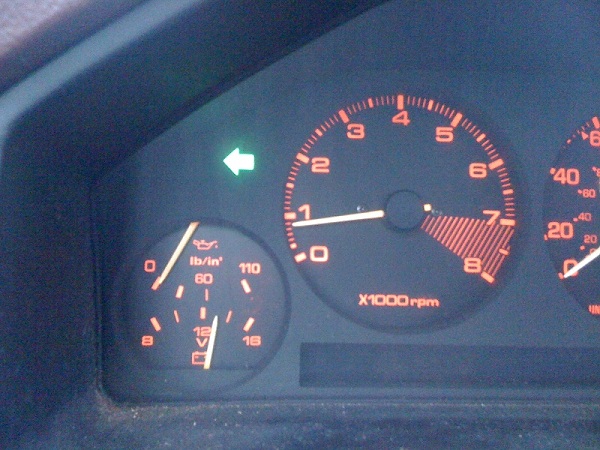

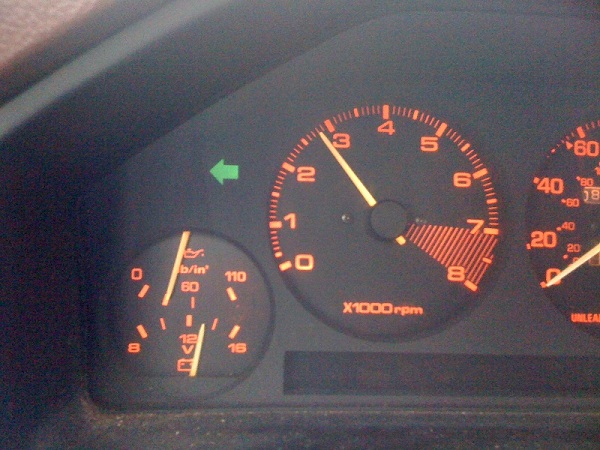

Attached Thumbnails Weird Oil pressure issue-img_0184.jpg   Weird Oil pressure issue-img_0187.jpg
Old 09-17-09, 10:16 AM
  #2
1st-Class Engine Janitor

iTrader: (15)

DivinDriver's Avatar

Join Date: Jun 2008
Location: Chino Hills, CA
Posts: 8,376
Received 26 Likes on 24 Posts
Looks electrical based on the description; cleaning connections (and grounds) is a good first step.

Is your temperature gauge behaving itself? How's your overall voltage?
Old 09-18-09, 08:13 PM
  #3
gsl-se only 13b
iTrader: (1)

chris rx7 gsl-se's Avatar

Join Date: Sep 2009
Location: spokane wa
Posts: 149
Likes: 0
Received 0 Likes on 0 Posts
i allmost seem to have the same problem,my oil guage did the same thing but now my guage is not working at all
Old 09-18-09, 08:49 PM
  #4
I need a new user title


PercentSevenC's Avatar

Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes on 0 Posts
I highly recommend getting a mechanical oil pressure gauge for just this reason.
Old 10-04-09, 04:27 PM
  #5
Rotary Enthusiast

Thread Starter
iTrader: (4)

Join Date: Jan 2003
Location: Bryan, TX
Posts: 766
Likes: 0
Received 0 Likes on 0 Posts
Well, I switched out the oil pressure sender with one off a 86 n/a. I am getting the same oil pressure readings. It goes up and down, but its low all the time. idle is still around 0 or just above, and never goes up much beyond 15psi. One day though, the gauge spiked all the way to the other side though. I was about to kill the engine when it dropped to where it has been sitting. NO clue there. Car has been running fine other then this.

Could it be the pressure regulator in the front cover? I REALLY hope not as that seems like it would be a PITA to get into. Any thoughts would be MUCH apreciated.
Old 10-04-09, 04:37 PM
  #6
Moderator

iTrader: (2)

rxtasy3's Avatar

Join Date: Jun 2002
Location: Spartanburg, SC
Posts: 9,312
Likes: 0
Received 256 Likes on 237 Posts
as mentioned, get a mechanical gauge so u know whether it's a gauge issue or a pressure issue. stock gauge not accurate enough to live by. and the pressure regulator is on the rear housing, accessible by dropping the oil pan.
