weber linkage etc

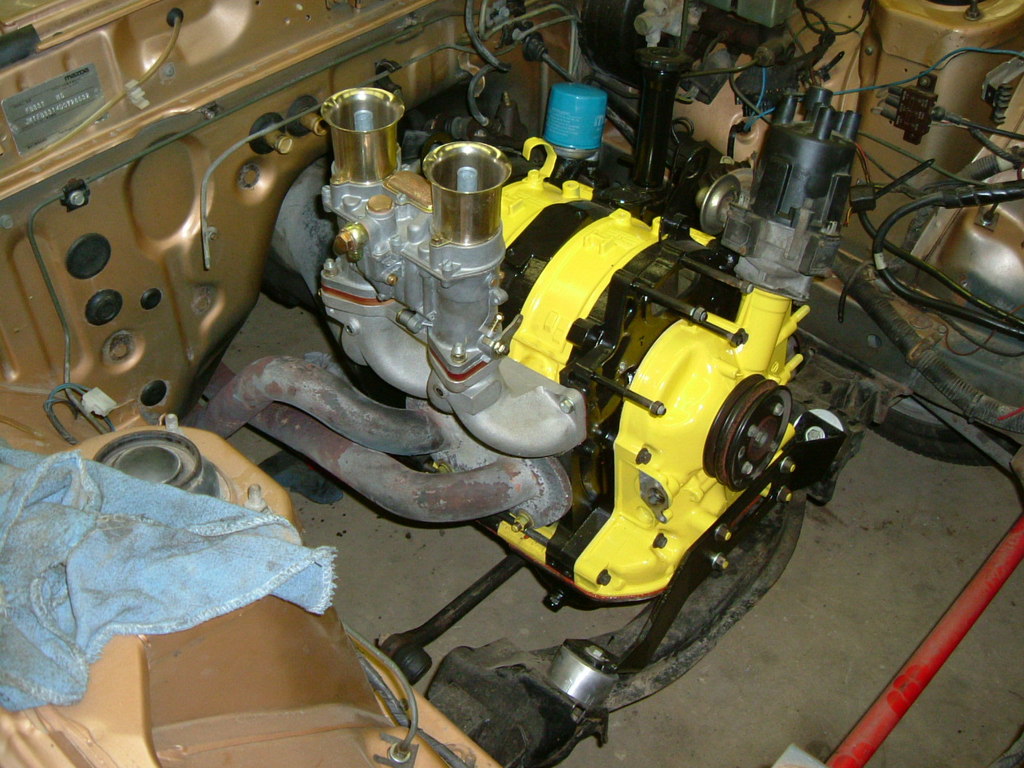

I've recently installed a weber 48 ida on my 12A and I've searced and searched for what people have used for a linkage to the OMP. I've found a bunch of linkages on pierce manifolds and was wondering if anybody knows which one will work.
http://www.piercemanifolds.com/linkage.htm
My car goes back on the road next week and this is what's still holding my back.
Also, does anybody know the size of drill bit needed to make the third progression hole?
Any help/ suggestions would be much appreciated.
http://www.piercemanifolds.com/linkage.htm
My car goes back on the road next week and this is what's still holding my back.
Also, does anybody know the size of drill bit needed to make the third progression hole?
Any help/ suggestions would be much appreciated.
#4
RX for fun
iTrader: (13)

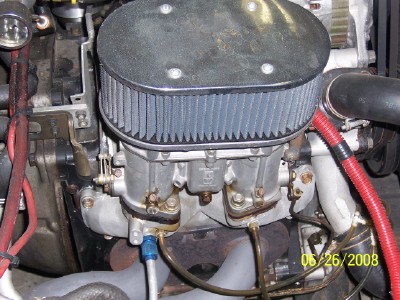

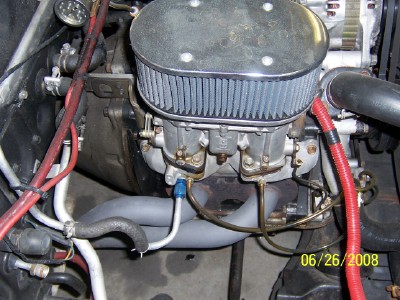

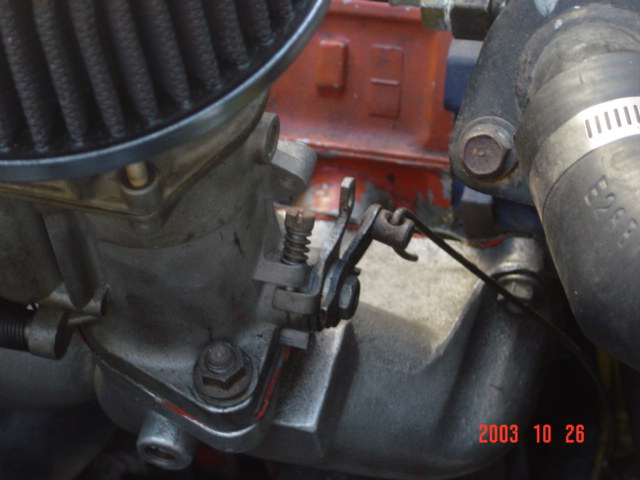

thats bottom pull so it can be done. I get a pix on how I did my carbs tomorrow.
FYI:
To identify a top pull IDA, the fuel inlet faces the motor. Unlike bottom pull, the linkage will rotate clockwise (if your facing the carb from front of car) so the omp rod linkage will be facing the header side. Imagine how the OMP rod will look like: a retard. Pix tomorrow will explain it better.
FYI:
To identify a top pull IDA, the fuel inlet faces the motor. Unlike bottom pull, the linkage will rotate clockwise (if your facing the carb from front of car) so the omp rod linkage will be facing the header side. Imagine how the OMP rod will look like: a retard. Pix tomorrow will explain it better.
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,831
Received 2,599 Likes
on
1,846 Posts
whats everyone doing for the throttle cable bracket?
#6
Grey-Bruce Rotorhead
Thread Starter
Join Date: Apr 2002
Location: Chesley, Ontario, Canada
Posts: 1,484
Received 0 Likes
on
0 Posts
thats bottom pull so it can be done. I get a pix on how I did my carbs tomorrow.
FYI:
To identify a top pull IDA, the fuel inlet faces the motor. Unlike bottom pull, the linkage will rotate clockwise (if your facing the carb from front of car) so the omp rod linkage will be facing the header side. Imagine how the OMP rod will look like: a retard. Pix tomorrow will explain it better.
FYI:
To identify a top pull IDA, the fuel inlet faces the motor. Unlike bottom pull, the linkage will rotate clockwise (if your facing the carb from front of car) so the omp rod linkage will be facing the header side. Imagine how the OMP rod will look like: a retard. Pix tomorrow will explain it better.

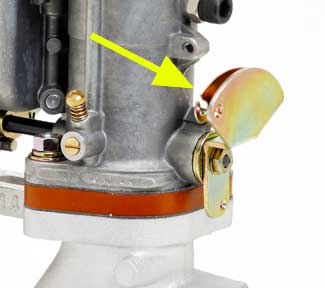

Are you talking about the bell crank?
#7
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,831
Received 2,599 Likes
on
1,846 Posts
Trending Topics
#8
What could possibly go wr
iTrader: (1)
Join Date: Apr 2005
Location: Thunder Bay, Ontario
Posts: 212
Likes: 0
Received 0 Likes
on
0 Posts
just started a thread on the 3rd progression hole, still waiting some specific sizes

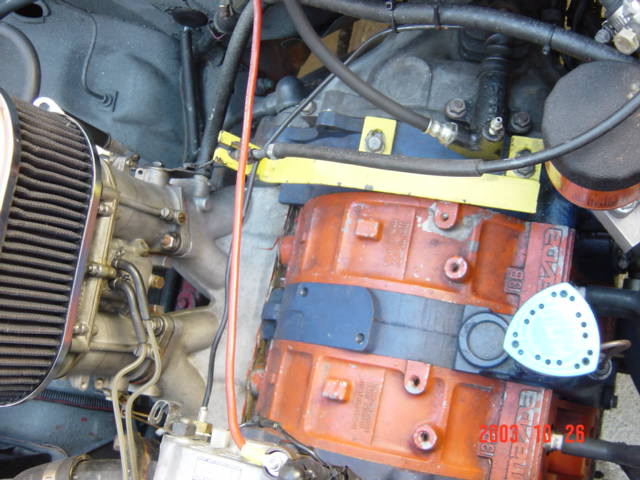

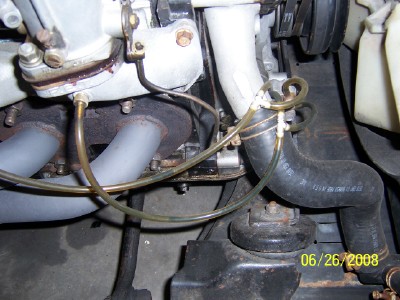

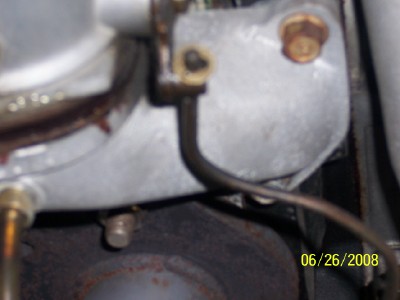

as for the omp lines you need to tap into the fuel bowl(engine side, and extend your omp tubes to reach the new location), manipulate the old omp linkage to operate(open/close) as it did on the stock nikki carb.(i just went with premix and blocked off the opm).

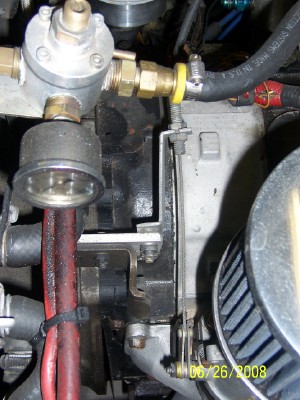

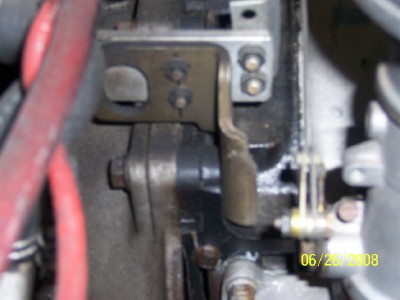

and for the throttle cable sheath stopper, a bracket needs to be made that will hold it in place, i attached mine to one of the bell housing bolts.
as for the omp lines you need to tap into the fuel bowl(engine side, and extend your omp tubes to reach the new location), manipulate the old omp linkage to operate(open/close) as it did on the stock nikki carb.(i just went with premix and blocked off the opm).
and for the throttle cable sheath stopper, a bracket needs to be made that will hold it in place, i attached mine to one of the bell housing bolts.
