weber coolant leak

hey guys. i just intalled the weber 48 ida on my 85 and tried starting it then went and checked if anything was leaking. it seemed to be leaking coolant in between the oil pan and the engine..what do i do? i wanna try getting it started up but this scared me!
Old 08-20-09, 06:50 PM
  #2
Stu-Tron Get Yo Groove On

iTrader: (4)

Jeezus's Avatar

Join Date: Nov 2006
Location: Huntsville AL
Posts: 8,405
Received 9 Likes on 9 Posts
Oil pan and engine?

Did you wipe the coolant off when you installed the IDA? When you take the stock Nikki off (or any carb from an unmodified engine) it will pour coolant out of the coolant ports on the housings. Wipe that stuff off!

Did you replace the O-rings? If you wanted to keep the O-Rings then you would be better off replacing them with new rings. Most people just stick 20mm Freeze plugs in the coolant ports.

Double check that stuff and get back to us. Also clean up a lot around the suspected area, and start the car. Make sure it is not seeping out between the housings and irons.
Old 08-20-09, 07:01 PM
  #3
Junior Member
Thread Starter

EVAN-RX7's Avatar

Join Date: May 2007
Location: colorado
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts
well i did freeze plug the holes but when i took the manafold back off the freeze plugs obviously werent in great because there was a decent amount of leakage. so i guess i need to get more freeze plugs but is there a better way to put those in, i used a big bolt to the back of them with a hammer...
Old 08-20-09, 07:43 PM
  #4
Stu-Tron Get Yo Groove On

iTrader: (4)

Jeezus's Avatar

Join Date: Nov 2006
Location: Huntsville AL
Posts: 8,405
Received 9 Likes on 9 Posts
Use wood and a hammer. You probably dented it. Are they the right size?
Old 08-21-09, 03:04 PM
  #5
The Shadetree Project

iTrader: (40)

Hyper4mance2k's Avatar

Join Date: Jul 2002
Location: District of Columbia
Posts: 7,301
Received 3 Likes on 3 Posts
get the right size freeze plugs and a new gasket you should be alright.
Old 08-21-09, 04:39 PM
  #6
Needs More Noise

iTrader: (12)

bwaits's Avatar

Join Date: Nov 2001
Location: Georgia
Posts: 3,375
Likes: 0
Received 1 Like on 1 Post

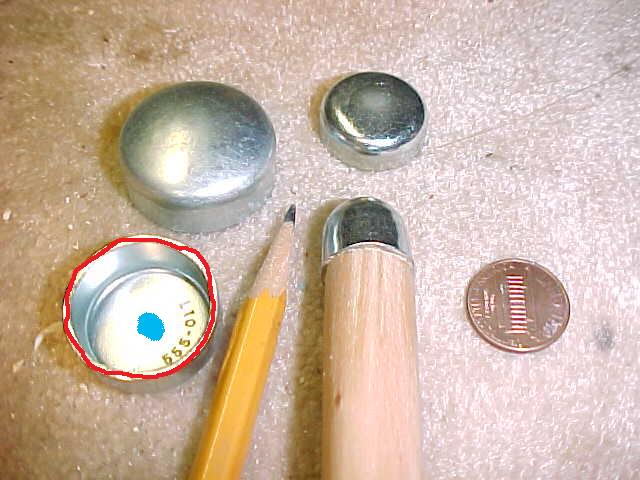

When installing freeze plugs you need to hammer them in on the flange with the correct size socket not by the middle. You can tweak it otherwise.

I did a quick pic:
Red = socket this size hammer by this flange
Blue = do hammer on this surface.
Attached Thumbnails weber coolant leak-untitled.jpg
