(suspension) 79 rx-7 shock solutions (i need help)
#1
Junior Member
Thread Starter
(suspension) 79 rx-7 shock solutions (i need help)
Ok, I have been doing some research for the suspension on my recently purchased 79 RX-7. The stock suspension is actually in pretty good order, but I am looking to go lower and firmer. Unfortunately (as most of you already know) the 79-80 front shock body is longer than on the 81-85. The only solution I have been able to find are the KYB GR-2/Excel-G inserts and the Racing Beat springs.
The Racing Beat springs only give a 1 inch drop, and I question the adequacy of the nearly stock replacement KYB's with aftermarket springs. Can anybody suggest a different solution (confirmed, not theoretical) for my suspension? I just want to go a bit lower and firmer than the KYB/Racing Beat solution mentioned above. Thanks!
The Racing Beat springs only give a 1 inch drop, and I question the adequacy of the nearly stock replacement KYB's with aftermarket springs. Can anybody suggest a different solution (confirmed, not theoretical) for my suspension? I just want to go a bit lower and firmer than the KYB/Racing Beat solution mentioned above. Thanks!
#3
Junior Member
Thread Starter
Hey, thanks for the info. The KYB and RB combo is still a consideration. The streets here in Columbus can be rough. The stock ride height is just so high. I'm concerned that 1 inch won't be enough. I am also going to a 15" wheel. Maybe the larger wheel/tire combo will fill the wheelwells better. Any pics of yours by chance?
#5
Rotary Enthusiast
iTrader: (7)
Hope this helps.... I was in the same boat, and went with the KYB's and B&G springs. The drop is a it more than the RBs, at 1.25 inch. They're progressive rate, and the increase is about 25% over stock.

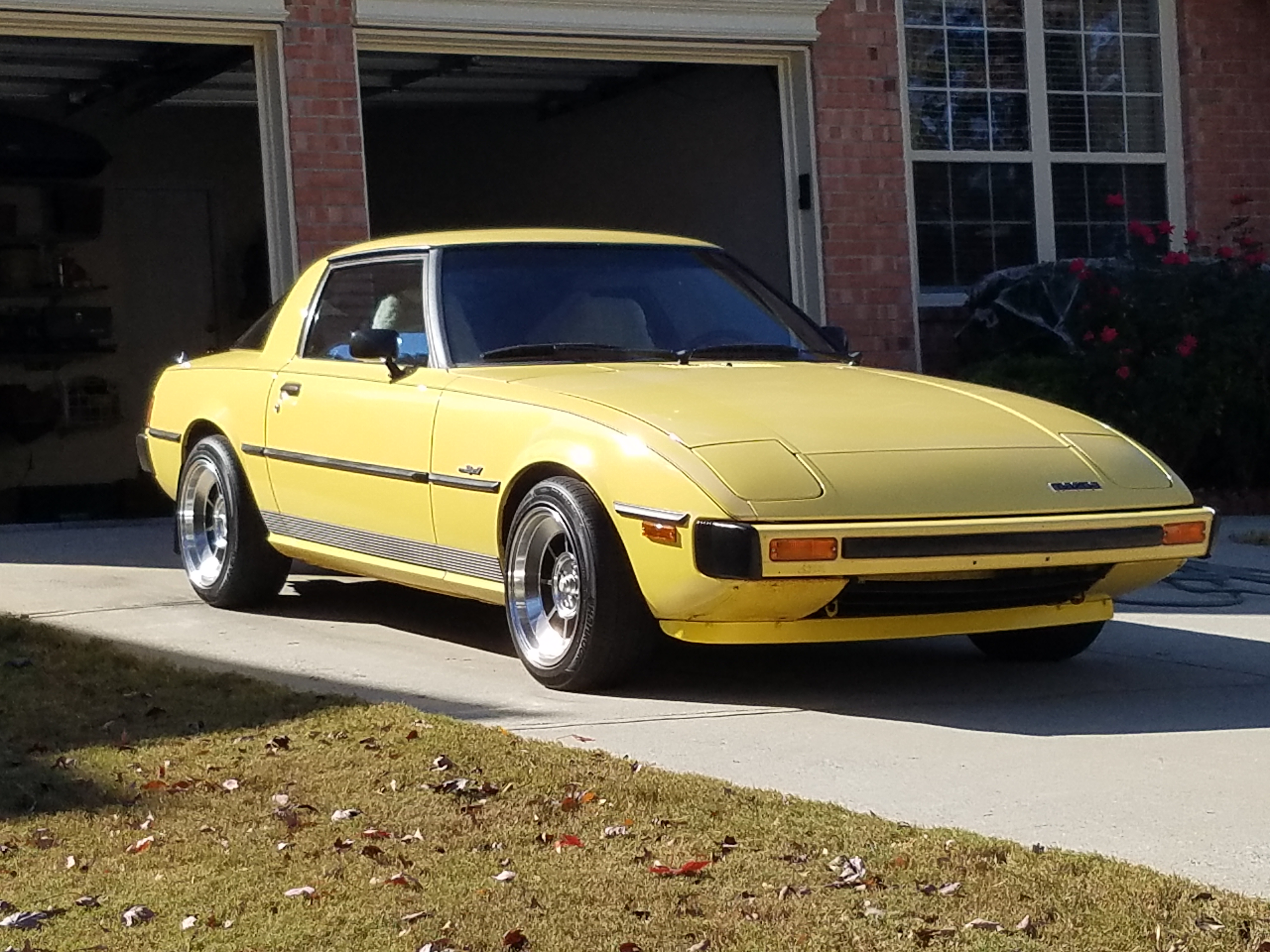

Here's how mine sits on 15 inch wheels. Mind you, my tires are 195/50s, so the overall diameter is actually smaller than stock. I'll be switching to 205/50s pretty soon.
Here's how mine sits on 15 inch wheels. Mind you, my tires are 195/50s, so the overall diameter is actually smaller than stock. I'll be switching to 205/50s pretty soon.
The following users liked this post:
fbse7en (08-18-23)
#7
Junior Member
Thread Starter
Hope this helps.... I was in the same boat, and went with the KYB's and B&G springs. The drop is a it more than the RBs, at 1.25 inch. They're progressive rate, and the increase is about 25% over stock.
Here's how mine sits on 15 inch wheels. Mind you, my tires are 195/50s, so the overall diameter is actually smaller than stock. I'll be switching to 205/50s pretty soon.
Here's how mine sits on 15 inch wheels. Mind you, my tires are 195/50s, so the overall diameter is actually smaller than stock. I'll be switching to 205/50s pretty soon.
Trending Topics
#8
Junior Member
Thread Starter
#10
Waffles - hmmm good
iTrader: (1)
I have the RB springs and KYBs. The KYBs cannot handle the RB spring rate very well. My
KYBs are getting older now and they grow worse.
I'm thinking of going to the progressives if I can find them and then switch to the tokico blues
or adjustables. Going coilover is kind of overkill unless your really track the car a lot and
require the adjustability provided by an adjustable coilover setup..
KYBs are getting older now and they grow worse.
I'm thinking of going to the progressives if I can find them and then switch to the tokico blues
or adjustables. Going coilover is kind of overkill unless your really track the car a lot and
require the adjustability provided by an adjustable coilover setup..
#11
Junior Member
Thread Starter
I have the RB springs and KYBs. The KYBs cannot handle the RB spring rate very well. My
KYBs are getting older now and they grow worse.
I'm thinking of going to the progressives if I can find them and then switch to the tokico blues
or adjustables. Going coilover is kind of overkill unless your really track the car a lot and
require the adjustability provided by an adjustable coilover setup..
KYBs are getting older now and they grow worse.
I'm thinking of going to the progressives if I can find them and then switch to the tokico blues
or adjustables. Going coilover is kind of overkill unless your really track the car a lot and
require the adjustability provided by an adjustable coilover setup..
#13
Full Member
iTrader: (1)

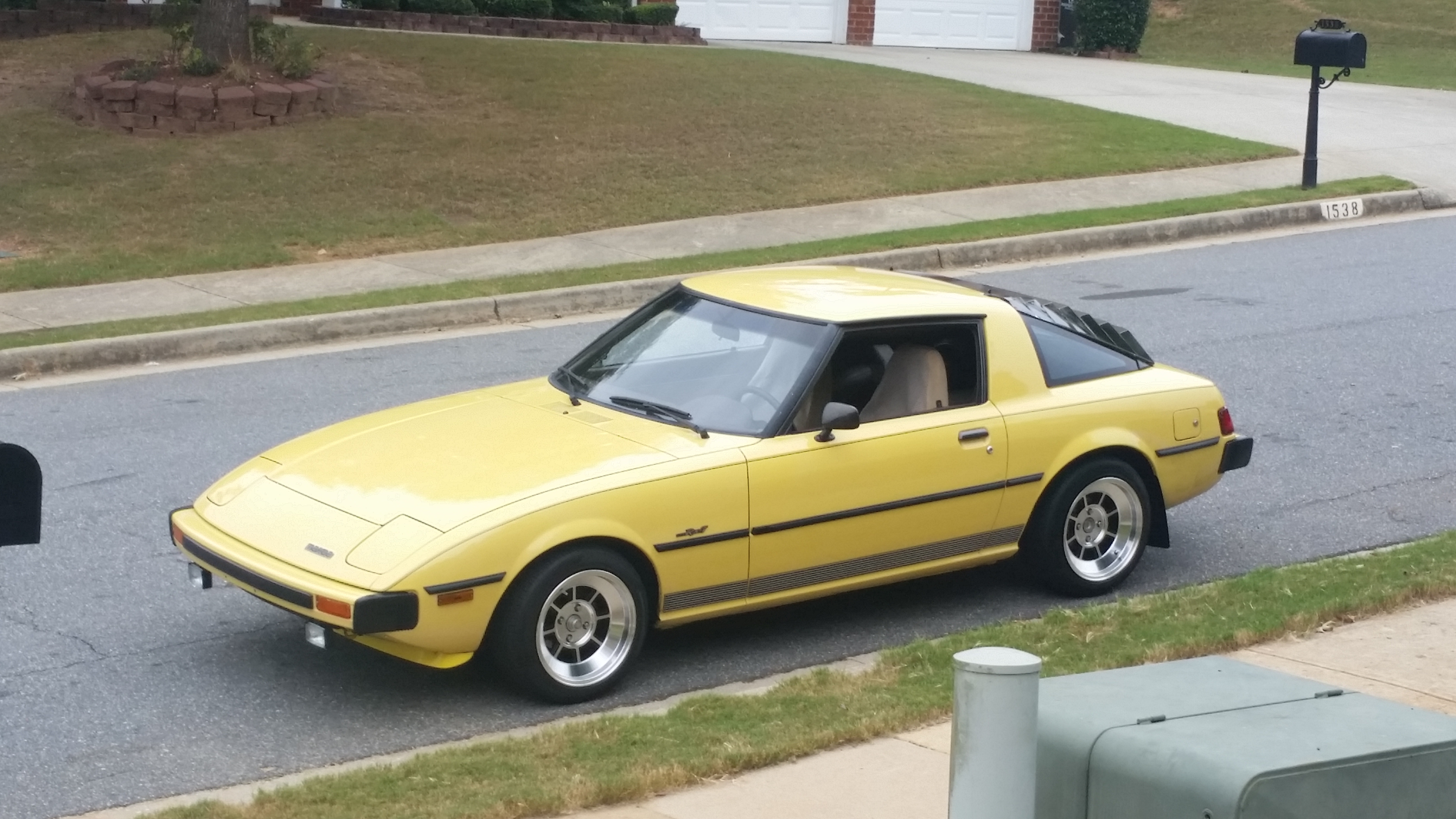

Here are a few pics of mine, before, after, after wheels and tires, and as it sits today. The rear is currently a little higher than I want it to be. I plan on cutting 1/4 to 1/2 coil off of the rear RB springs when I do the GSL rear end swap in the spring. I don't remember where I read this, but someone at some point said RB is fine with it to help with possible raking effects.
Picture at recent Car show
Before
After
New wheels and tires
taken last year.
Picture at recent Car show
Before
After
New wheels and tires
taken last year.
#15
Full Member
iTrader: (1)
Yeah, im looking at doing some mustang shocks in the rear. I figure they will handle the extra half inch or so lower fairly well. That may be part of the problem is riding the KYB too low if you cut off a coil. No matter which way you go, the KYB's will be better than nothing.
#16
Junior Member
Thread Starter
Thanks everyone for the replies! I have some options now! It's too bad T3 doesn't make a less expensive fixed-height solution. I think they would sell a crap-ton of that setup!
#18
RX7GARAGE
Recently installed RB springs with Kyb's on 15" wheels. So far I'm happy with this combo especially since I only drive it like four times a month. Here's how mine sits
The following users liked this post:
fbse7en (08-18-23)
The following users liked this post:
fbse7en (08-18-23)
The following 2 users liked this post by drdode:
fbse7en (08-18-23),
Silver Bullet 79 (06-24-17)
#22
Junior Member
Thread Starter
#23
RX7GARAGE
The following users liked this post:
Silver Bullet 79 (06-24-17)
#25
I just started running 15x7 Rewinds +20 with 205/50/15 - on top RB springs with KYB G2 shocks. So far so good - absolutely no issues... I don't track mine, though - and I'm too old for a truck like ride.
Last edited by RXTbone; 01-31-17 at 01:04 PM.
The following users liked this post:
Silver Bullet 79 (06-24-17)
