Jingkun

iTrader: (4)

So correct me if I have this wrong, but if I'm not mistaken when you cut the stock spring seats off you're also cutting off the retaining screw for your front struts. Do you just wind up driving around with no retaining screws? Does this not create a problem? Or am I just misunderstanding something again? Anyone got any pics of just the assembly after they've been cut and then another after they've been welded. Or even uncut with the cut marks would shed some light on this for me. Thanks again.

DarrenTRS

iTrader: (1)

The stock perch/seat is simply welded onto the strut tube, you never actually cut the strut tube, you simply cut the welds on the perch and then cut the perch itself off leaving the strut tube completely unharmed, you then slip on the new perch, figure out where you want to weld it, and weld it into place.

I unfortunately don't have any pics on hand but hopefully that helps a little.

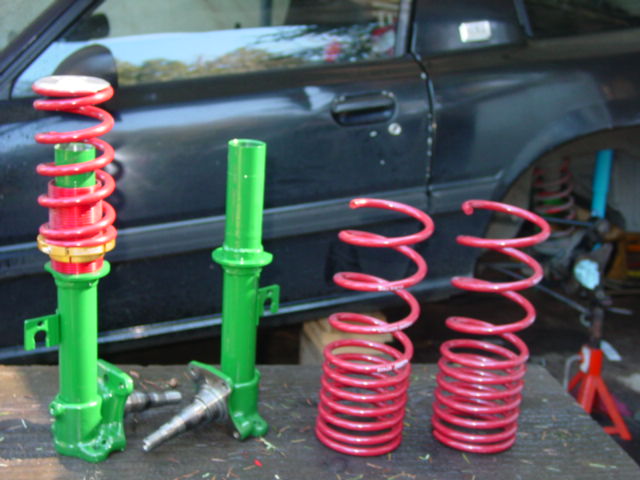

edit: here we are, this is what they look like after the new perch is installed, the strut tube remains completely intact.

Jingkun

iTrader: (4)

Ok so they sleeve over the tube. What is that they are kinda resting on though, it would be the last of the red where you painted.

DarrenTRS

iTrader: (1)

The sleeves are resting on the new perch supplied when you buy the RE-Speed Race Coilover set.

Jingkun

iTrader: (4)

I thought the perch was what the springs were resting on. I'm talking about the bulge at the top of the red painted section. I'm sure it could be a part of the original strut housing but I'm not sure as i haven't cracked into mine yet.

orion84gsl

iTrader: (5)

Those are just different perches from the ones in the re-speed kit. Same function, different design. Not part of the original strut tube.

Jingkun

iTrader: (4)

What do the respeed weld on perches look like then? They aren't those big washer like things with part of the side cut off are they? I hope I'm not missing more pieces than i thought. Also, just to be clear, the threaded section doesn't get welded down. It just sits on the perch and chills. With this I think I might be able to picture how it all goes together.

82transam

iTrader: (18)

Yes the new spring perch is the large round part with a side trimmed flat (this side faces the tire btw) you just cut the old spring perch off (don't cut into the tube at all though) then weld that new one on. Then a plastic sleeve slides on and the blue threaded piece goes over that. It's a real tight fit so it's not going anywhere.

Kentetsu

Really, it's a very simple install. You will love the results.



.

Jingkun

iTrader: (4)

Yeah I figured it out. I'm actually at the welders now. Sadly the perches won't drop to 6" but its close. Just don't wanna lose the mount points for the brake hose clips

orion84gsl

iTrader: (5)

You do not need those brackets for the brake line. They're nice to have but not necessary. Why won't the perch go down to 6 inches? Did you grind the welds from the stock perch completely or just cut the perches off and leave it?

Jingkun

iTrader: (4)

They wouldn't go to 6 cause of the brake line bracket

Kentetsu

Yeah, lose the bracket or just go with what you have. Unless you intend to drop it to the ground, you won't need to mount the perch that far down the strut tube.

Only you can decide if you're going to need that last little bit.

Jingkun

iTrader: (4)

Yeah i went with what I had. I'm having a couple of alignment issues but nothing major, just toe really. My big problem is the rears I have the passenger side just above minimum and the drivers side almost maxed out to make it even. Seems wrong to me, I also get clicking from the rear passenger, obvious spring noise. Any insight? Ah and just to dbl check. In the rear, spring flat on the stock mount, adjuster to the top with the lip of the collar at the top, removed stock rubber spring damper. Does that sound right?

Slammed_GSL

iTrader: (14)

It sounds like you are using the early strut tubes, the 84-85 have plenty of room.
I'm using 7.5inch long/2.5in dia/400lbs Eibach springs (0750/250/0400) on my car with 84-85 large bearing spindle.
This the ground control Uweld kit I used. http://www.ground-control-store.com/...hp/II=40/CA=23

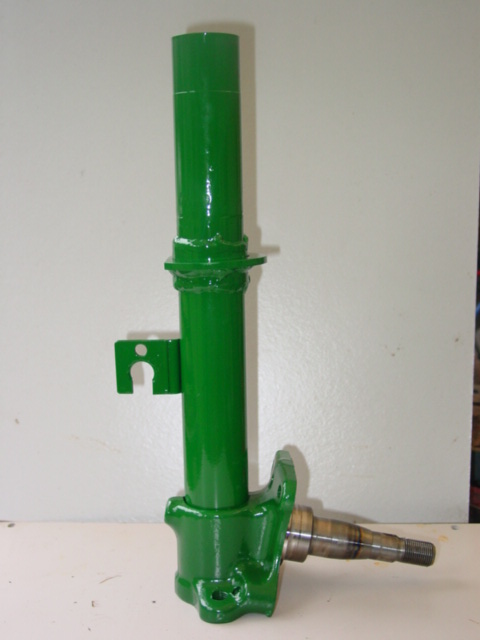

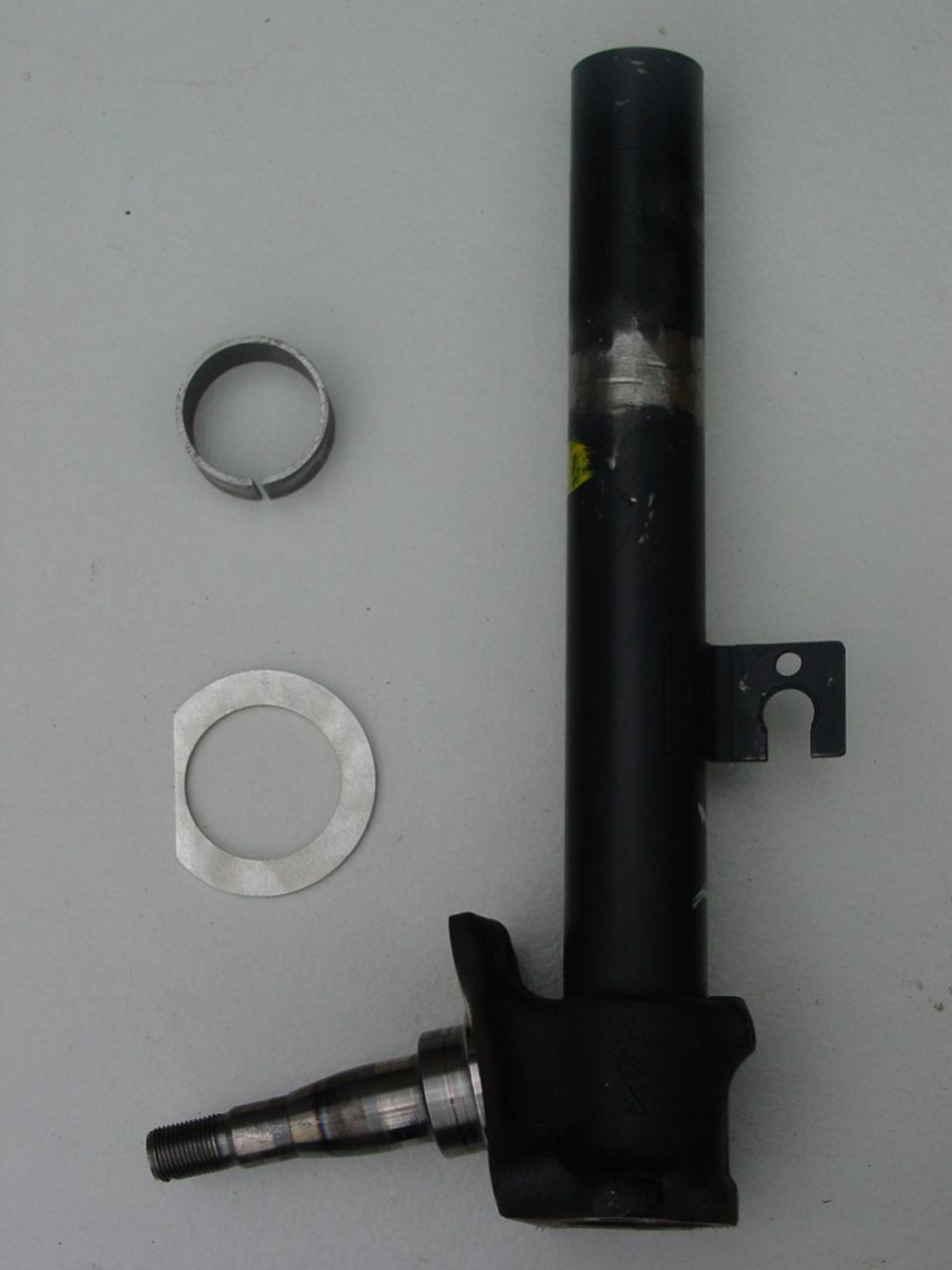

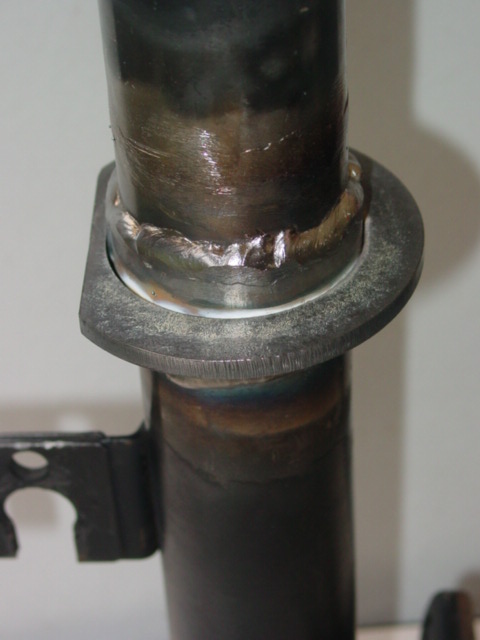

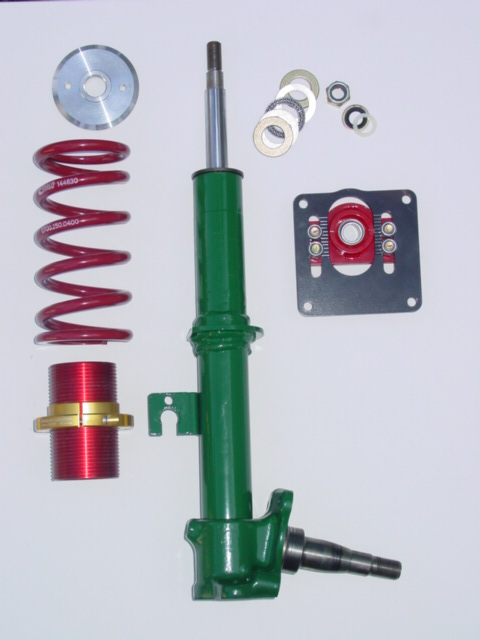

Here's some pics.

Jingkun

iTrader: (4)

wow those tubes are so much longer than mine, didn't even think about that. I might be sitting alot lower than I originally thought. Oh well, Goodbye steering geometry.

Rotospeed

iTrader: (8)

i just cut the bracket off and welded it back on lower.
